Remove and clean the extract tray (see para; 4.5.3 for details).

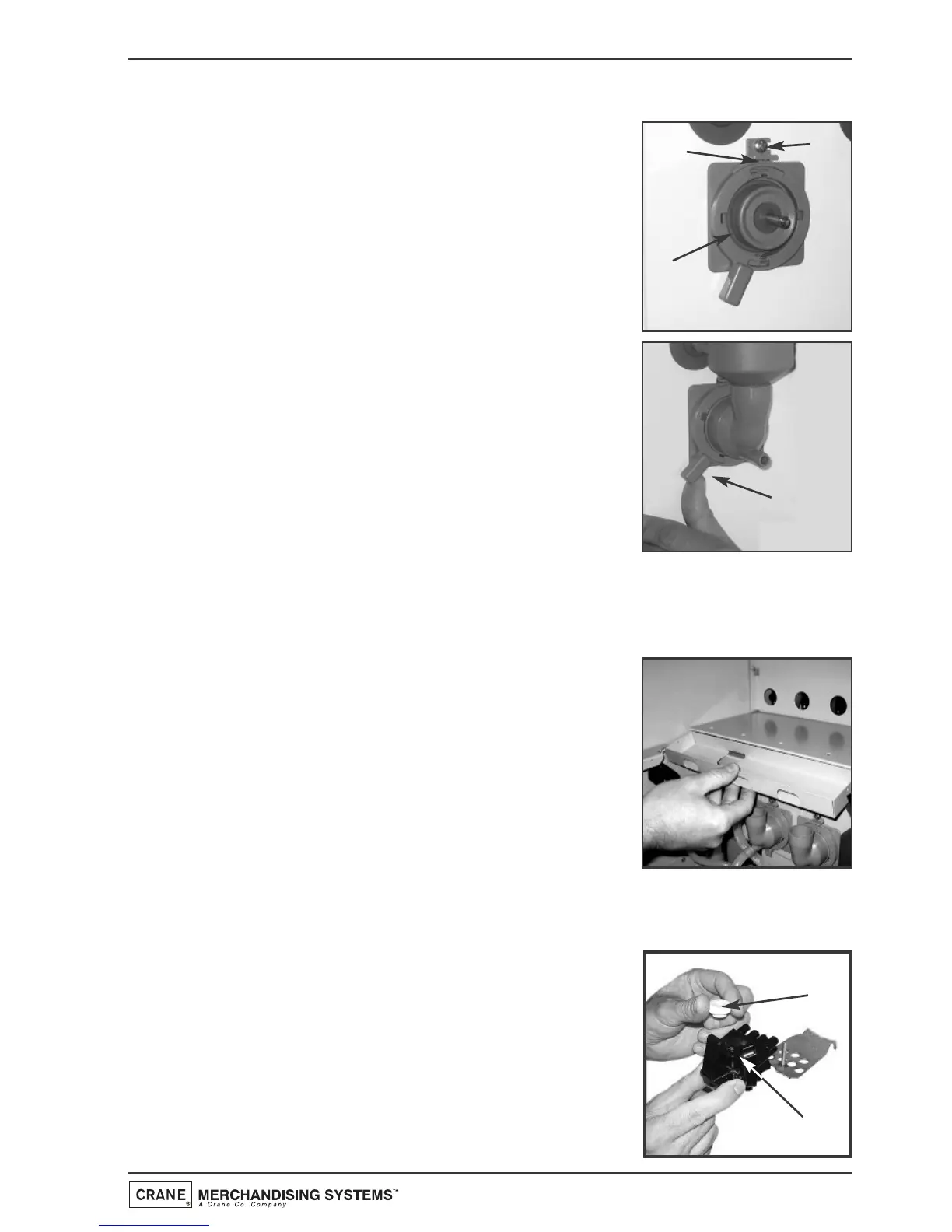

Refit the whipper base. Push the whipper base
onto the motor shaft with the ‘arrow’ symbol
lined up with the motor plate fixing screw (f) as
shown. Turn the whipper base clockwise until it
locates with the first (click) locking position (g).
Ensure ‘O’ ring (h) is correctly located as
shown.
Refit the impellers to motor shafts ensuring that
the ‘flat’ in the moulding lines up with the flat on
the shaft.
Refit mixer unit to whipper base. Turn the
whipper base (a) clockwise until it locks (second
click) into place.
Refit steam hoods, mixing bowls and dispense
pipes to mixer units. Refit the dispense pipes to
the dispense block.
Important: Ensure pipes are refitted to their correct outlet position on
the dispense block (see pages 61 - 65 for details).
4.5.3 Extract Tray
Remove the extract tray from the machine.
Using a dry brush clean the area under the
extract tray.
Clean the extract tray. Dry and refit to the
machine.
Wipe the canister shelf and the upper interior
of the machine with a clean, damp sanitised
cloth.
Refit the whipper system components (see para 4.5.2 for details).
4.5.4 Dispense Head
Remove the knurled nut (a) securing the plastic
dispense block (b) to the dispense head assembly.
Remove the dispense block and clean thoroughly
in the diluted bactericidal cleaner solution.
Rinse the dispense block with clean water and dry
thoroughly before refitting to the machine.
a
f
g
h
a
b
