Genesis Instant - Freshbrew Machines

8.3 Freshbrew Machines
63
Operators Manual

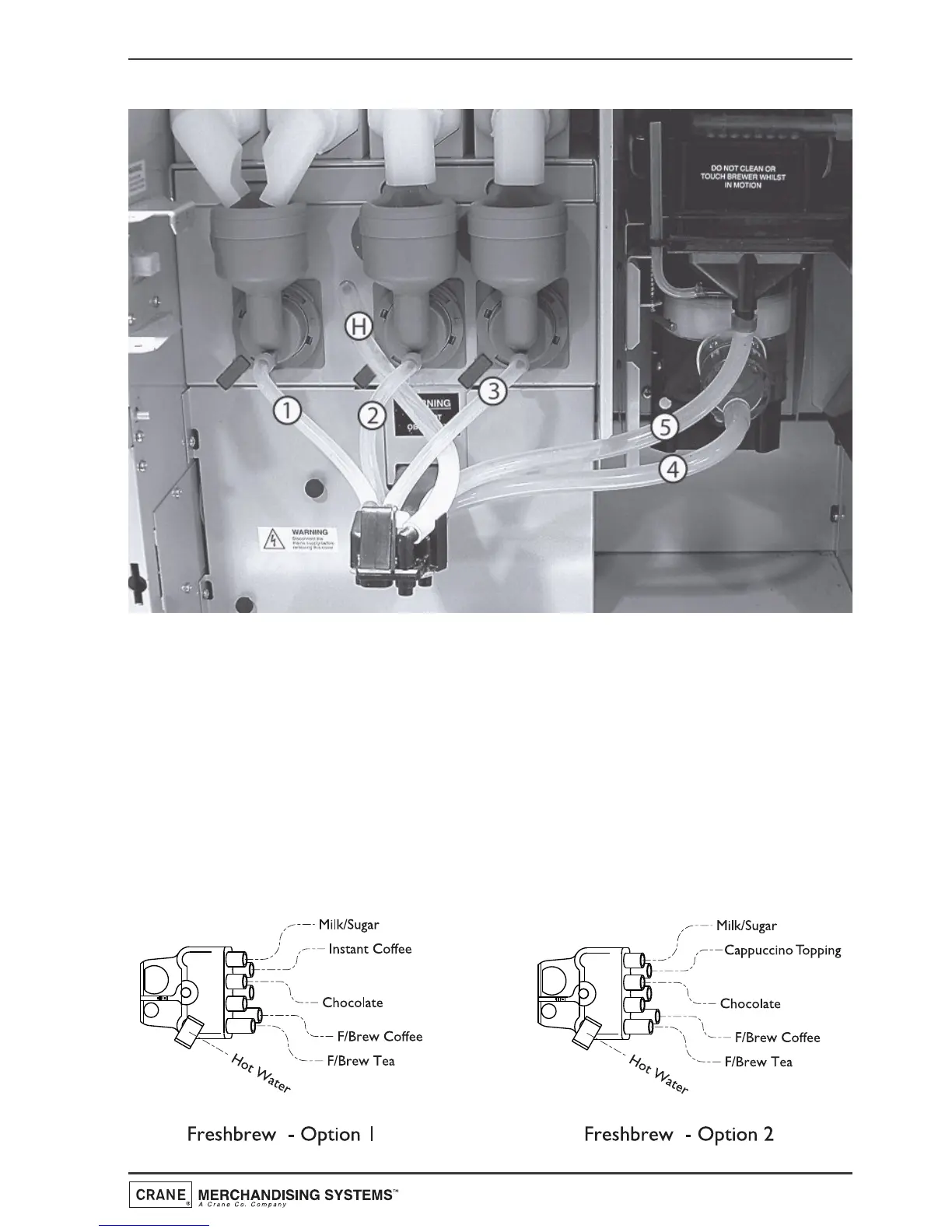

Pipe No Diameter Length
1 6 mm I.D. x 10 mm O.D. 170 mm
2 6 mm I.D. x 10 mm O.D. 160 mm
3 6 mm I.D. x 10 mm O.D. 170 mm
4 8 mm I.D. x 13 mm O.D. 250 mm
5 8 mm I.D. x 13 mm O.D. 280 mm
H = Hot Water Dispense Pipe
