Genesis Instant - Section 8 - Dispense Pipe Lengths; Instant - Option 1 Machines

Section 8 - Dispense Pipe Lengths
8.1 Instant - Option 1 Machines
61
Operators Manual

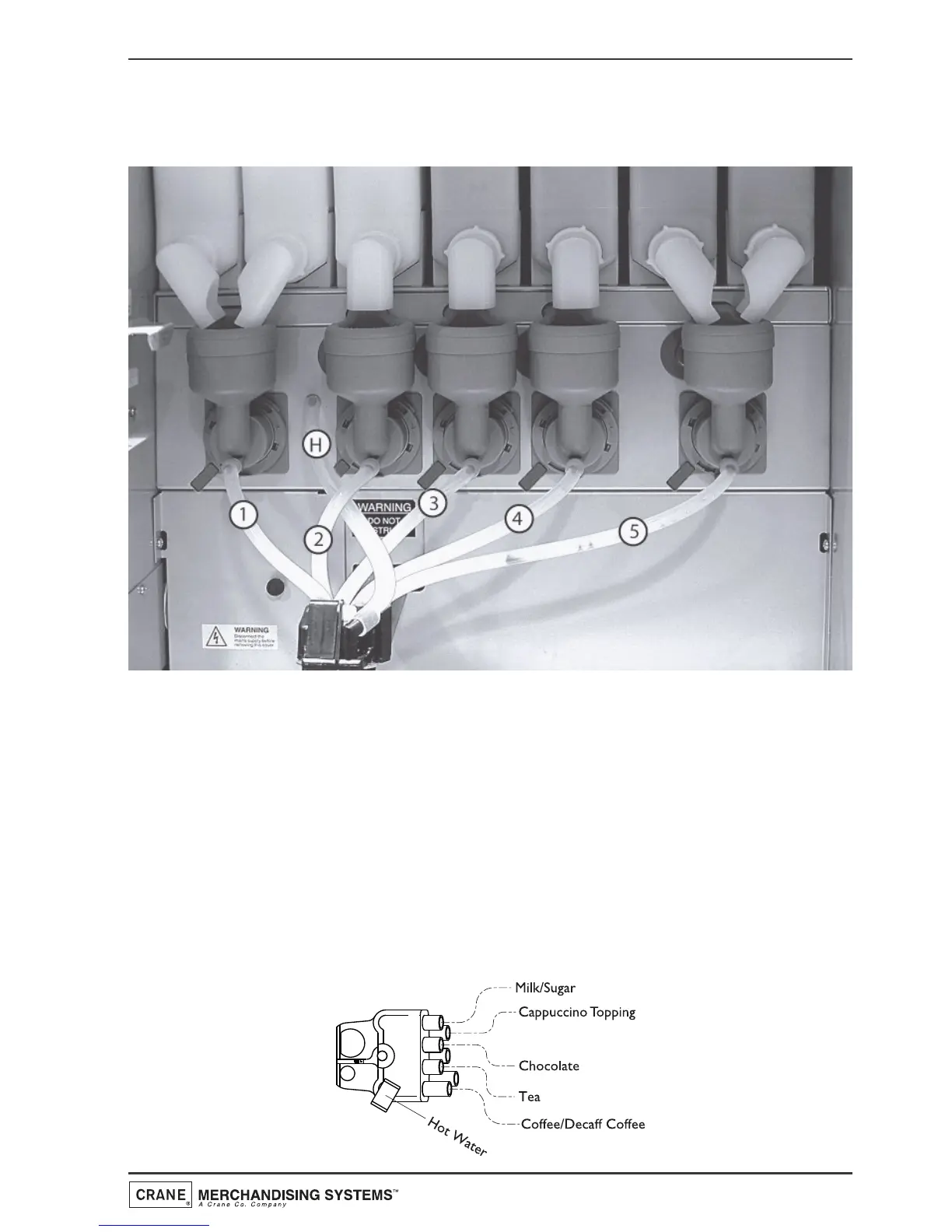

Pipe No Diameter Length
1 6 mm I.D. x 10 mm O.D. 170 mm
2 6 mm I.D. x 10 mm O.D. 160 mm
3 6 mm I.D. x 10 mm O.D. 170 mm
4 6 mm I.D. x 10 mm O.D. 210 mm
5 6 mm I.D. x 10 mm O.D. 300 mm
H = Hot Water Dispense Pipe
