8 MOUNTING
Use the supplied mounting template to facilitate locating the holes to mount the drive.
It is recommended that the drive be mounted vertically on a flat surface with adequate
ventilation. Leave enough room below the drive to allow for AC Line, motor
connections, and any other connections that are required. Care should be taken to
avoid extreme hazardous locations where physical damage can occur. When
mounting the drive in an enclosure, the enclosure should be large enough to allow
proper heat dissipation so that the ambient temperature does not exceed 40 °C
(104 °F) at full rating. See Figure 14.
WARNING! DO NOT USE THIS DRIVE IN AN EXPLOSIVE
ENVIRONMENT. AN EXPLOSION CAN CAUSE SERIOUS OR FATAL INJURY.
THIS DRIVE IS NOT EXPLOSION PROOF.

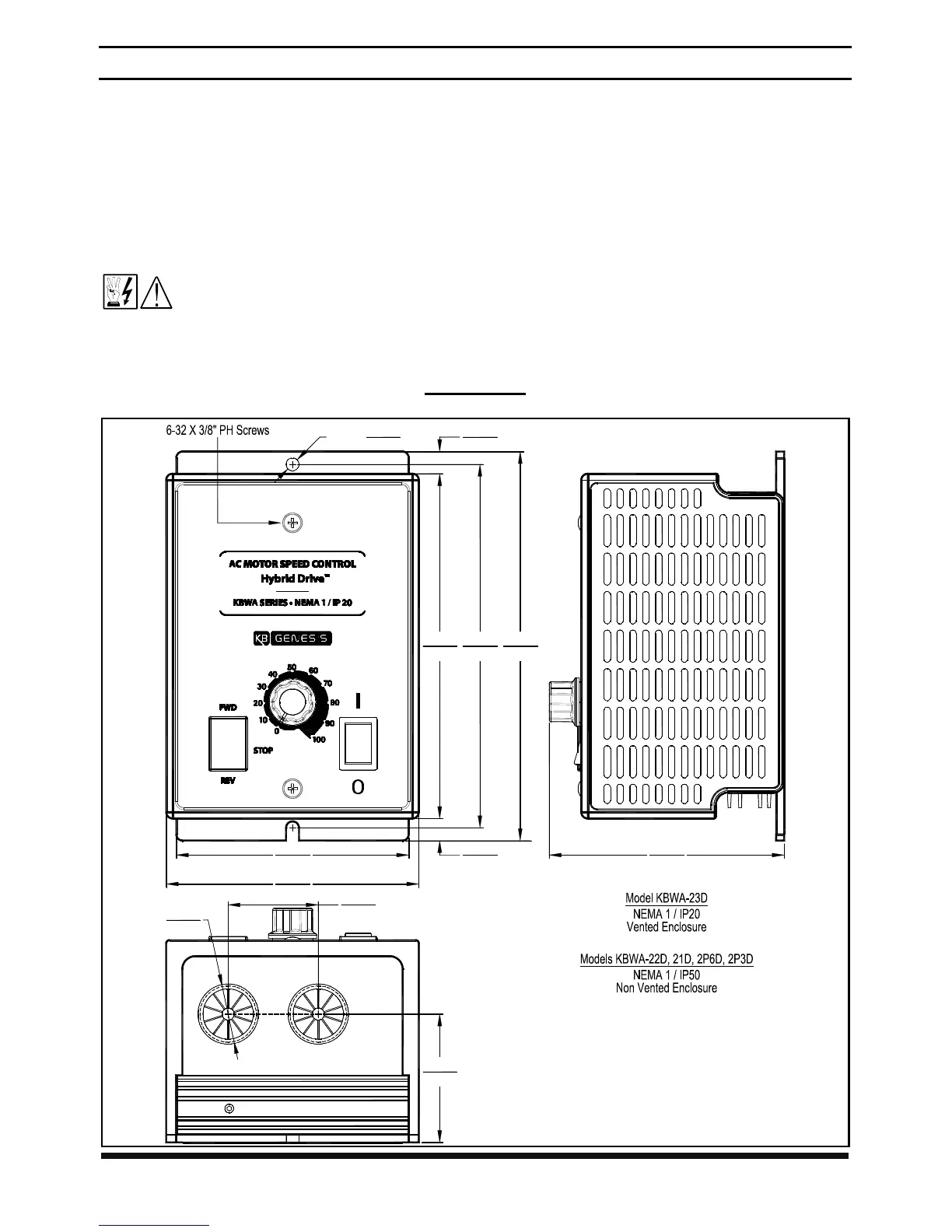

FIGURE 14
MECHANICAL SPECIFICATIONS (INCHES / mm)
1.400
35.6
50.8
2.000
22.2
0.875
91.7
3.922
99.6
3.610
8.76
0.345
5.660
144136
5.370
154
6.060
92.7
3.650
0.345
2X Ø
0.200
5.08 8.76
