26

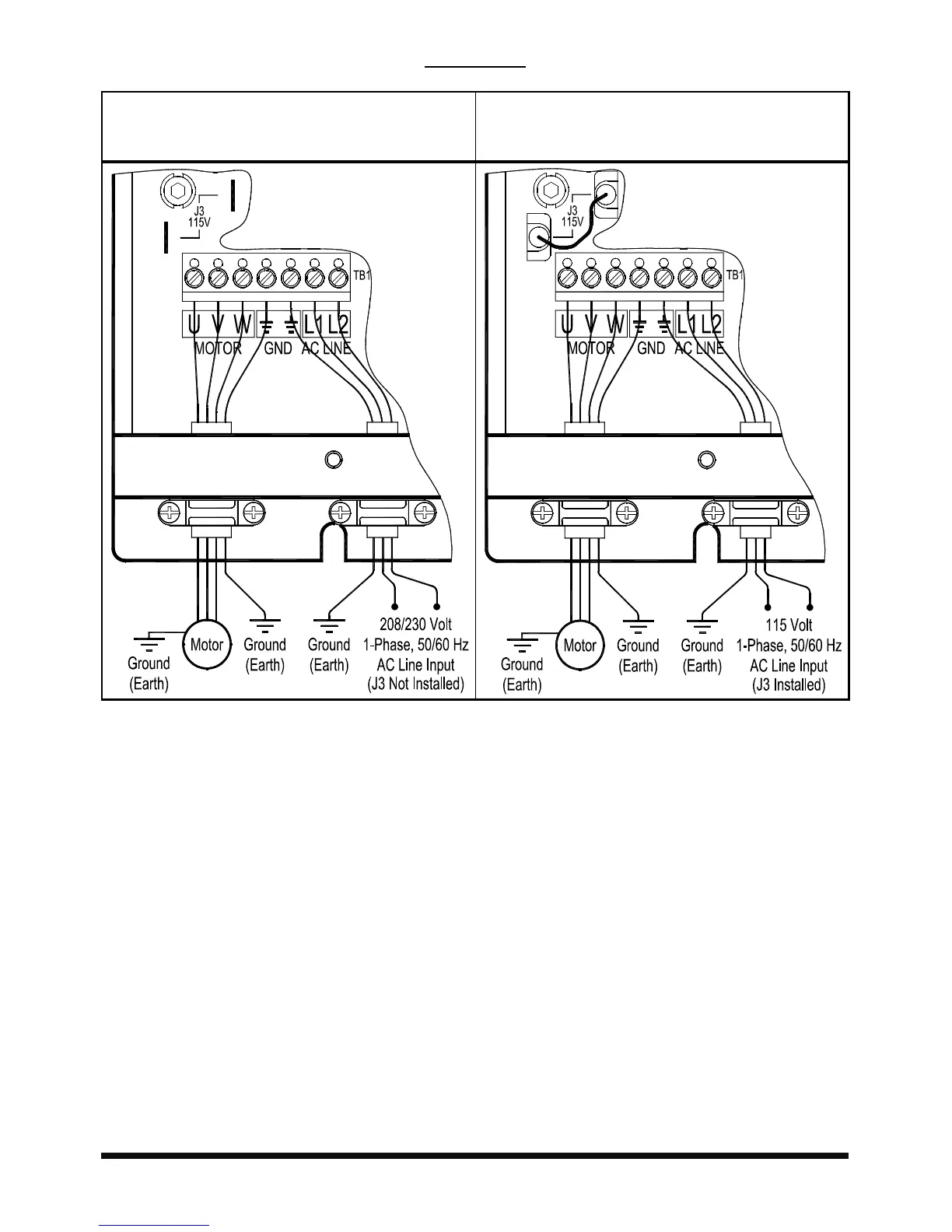

FIGURE 15
AC LINE INPUT, MOTOR, AND GROUND CONNECTIONS
Drive Wired for
208/230 Volt AC Line Input
(J3 Not Installed) (Factory Setting)
Drive Wired
for 115 Volt AC Line Input
(J3 (Supplied) Installed)
10.3 AC LINE INPUT FUSING
The drive does not contain AC Line fuses. For the recommended fuse or circuit
breaker rating, see Table 1, on page 9. Do not fuse motor leads. Most electrical codes
require that each ungrounded conductor contain circuit protection. Do not fuse neutral
or ground connections. It is recommended to install a fuse (Littelfuse 326, Buss ABC,
or equivalent) or a circuit breaker (Square D QOU or equivalent) in series with each
ungrounded conductor.
