9.4.2.1 DGNSS with a Base Station
Differential corrections can be supplied by an GeneSys Base Station or other suitable Base Stations.
Please see the Technical Documentation of GPS Base Station.

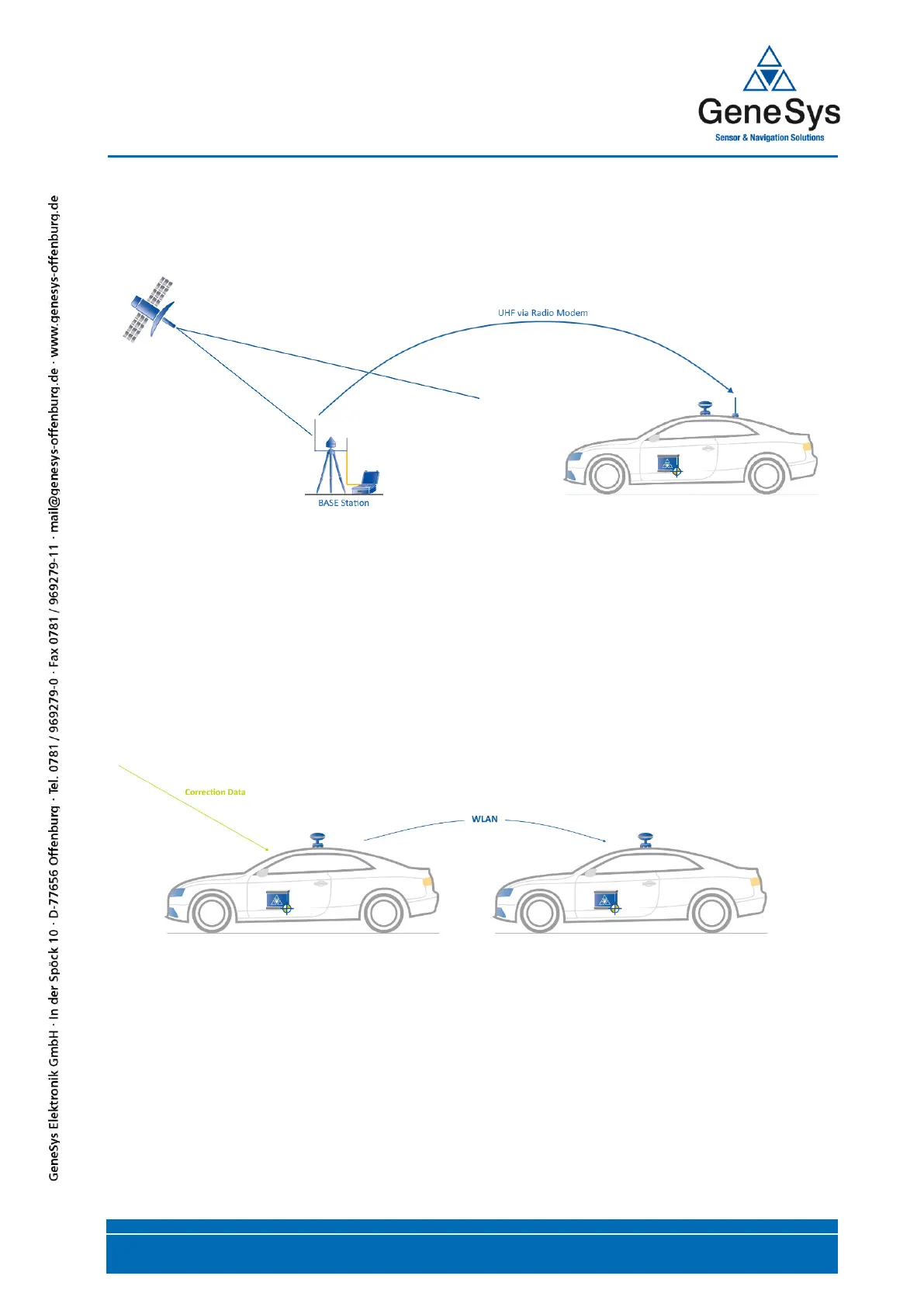

Figure 47 ADMA with correction data via Base Station
9.4.2.2 DGNSS correction data via Ethernet
The DGNSS correction data via Ethernet functionality of the ADMA allows to transmit correction data
from one ADMA to another. By using the Ethernet broadcast function several ADMA systems can be
provided. This functionality can reduce your workload and costs. For example, if you are performing
an urban or interurban AEB test, now only one GPRS(NTRIP)-Box will be needed.
Note: For being authorized using DGNSS correction data via Ethernet a License is required. If a license
is required, please contact GeneSys sales partner.
Figure 48 ADMA with correction data forwarding
