A signal should not be routed over a split plane as the return path is not able to follow the signal trace. If a
plane is split between a sink and source, route the signal trace around it. If the forward and return paths of a
signal are separated, the area between them acts as a loop antenna.

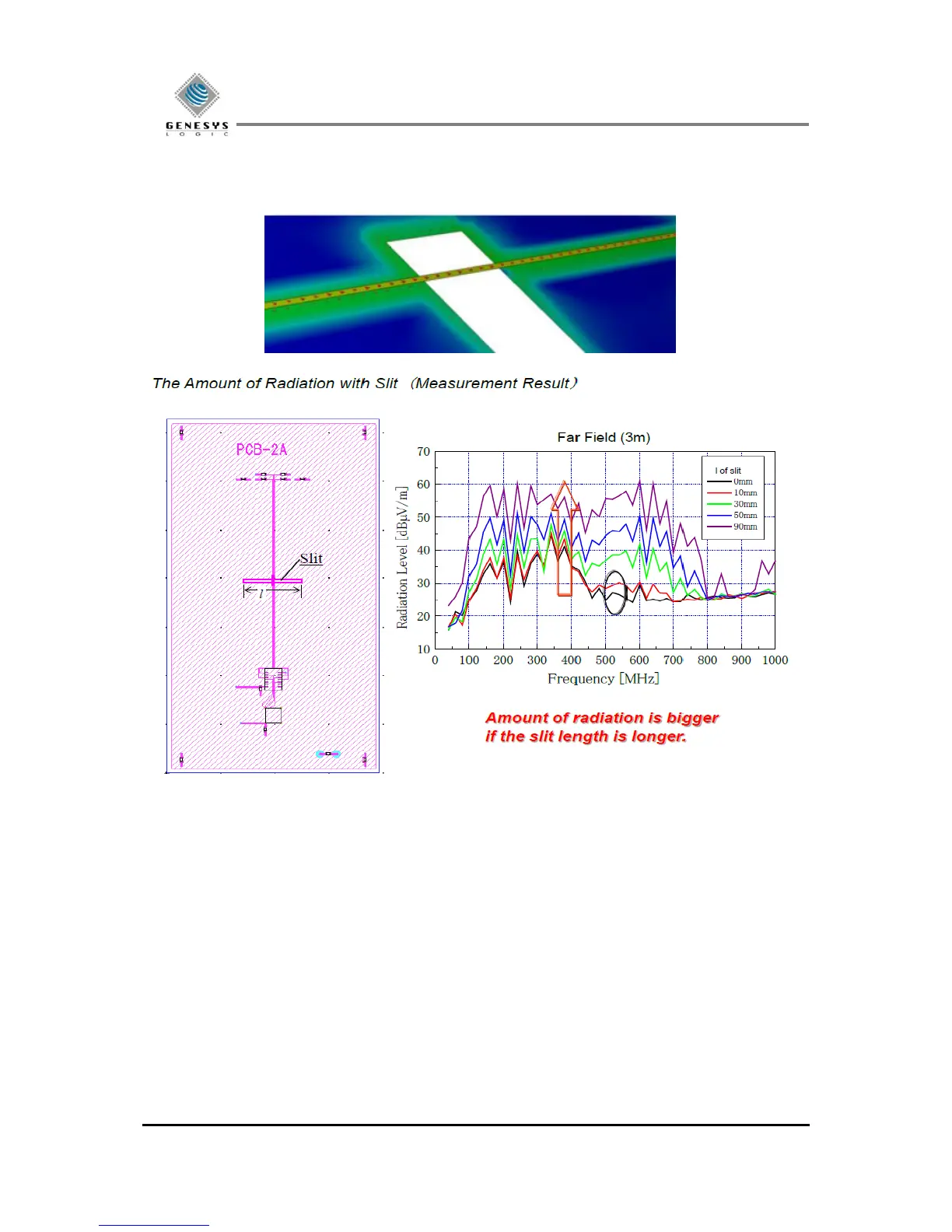

Figure 2.6 Avoid Routing over Split Planes
