USB 3.0 Hub Design Guide
© 2015 Genesys Logic, Inc. - All rights reserved. Page 25
GLI Confidential
3.4 Hub Trace on Mother Board

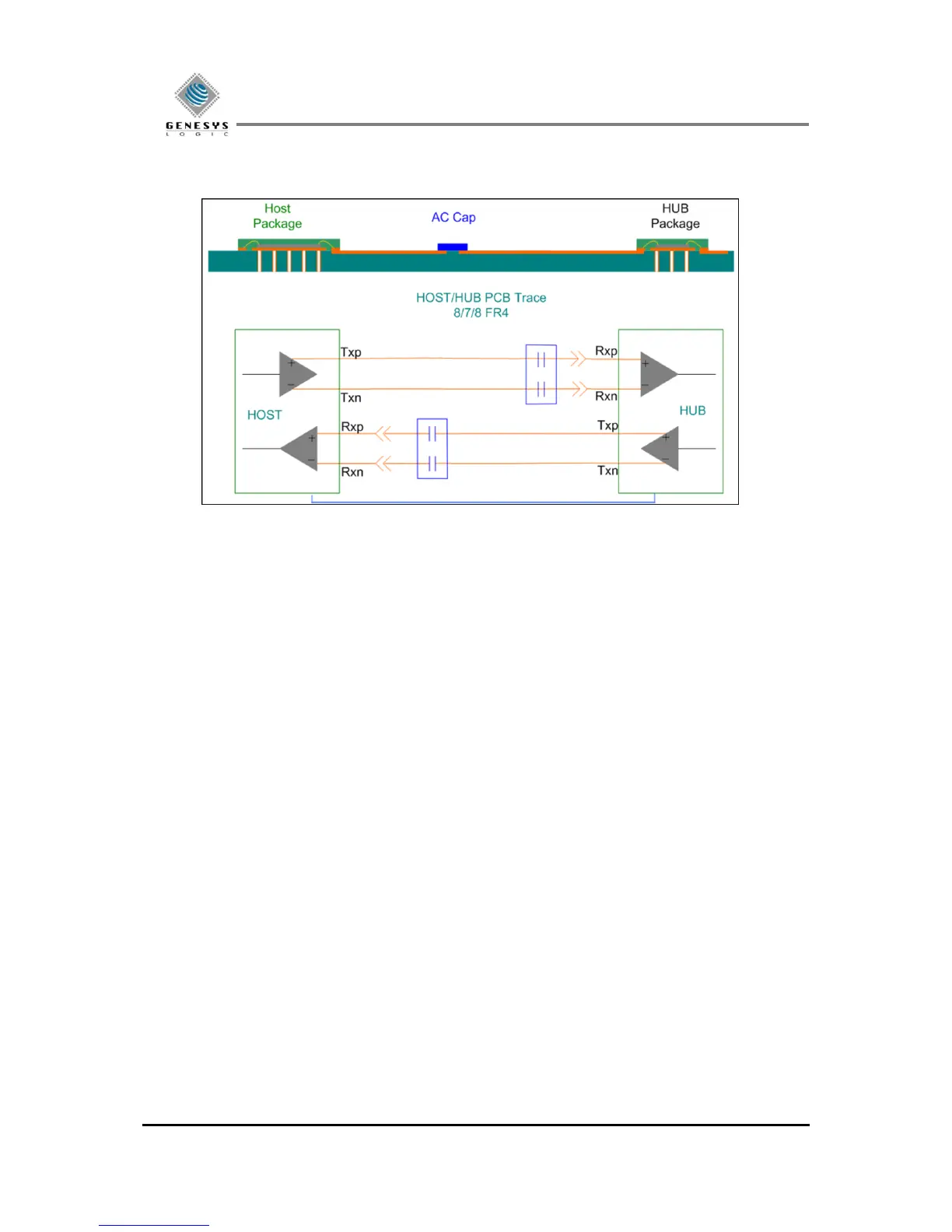

Figure 3.4 Hub Upstream Port Connected to Host
Fig. 3.4 The recommended length of Hub trace is up to 9 -inch on the mother board. However, if the Host
trace length is less than 9- inch, use the shorter one of these two numbers.
