Genesys GL3520 - Decoupling Capacitors

USB 3.0 Hub Design Guide
© 2015 Genesys Logic, Inc. - All rights reserved. Page 14
GLI Confidential
2.4 Circuit and Component Placement
2.4.1 Decoupling Capacitors
Please place the 0.1uF decoupling capacitor as close the UBS 3.0 Hub power pins as possible.

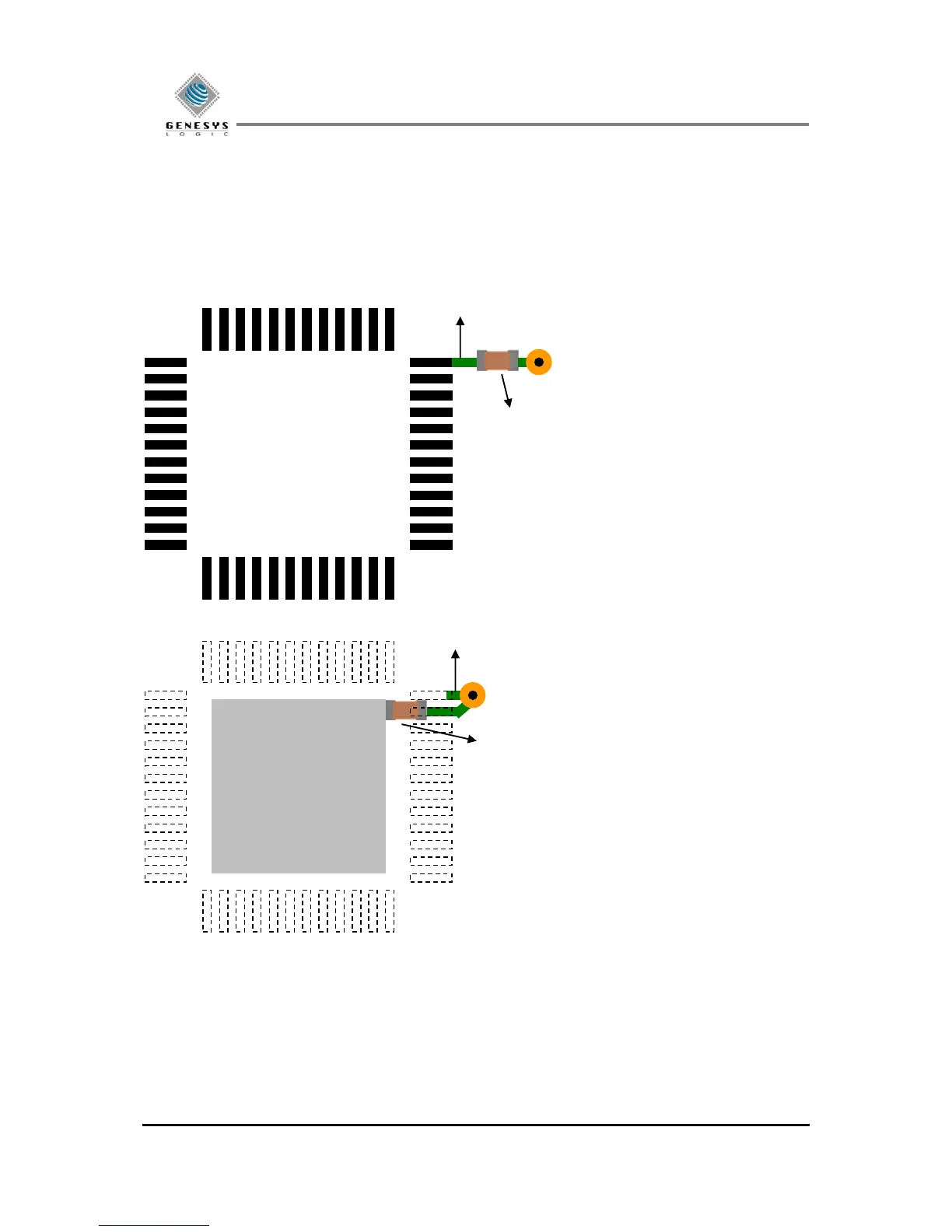

An example of decoupling capacitor positioning on top layer:
An example of decoupling capacitor positioning on Bottom layer:
2.4.2 RTERM Resistor
RTERM reference resistor use 680 ohm ±1% and place as close to the IC as possible.
Please keep the power trace as short as possible
Via to Bottom
Decoupling capacitor
* Capacitors should be located near the IC
Via to Ground
Decoupling capacitor
Please keep the power trace as short as possible
* Capacitors should be located near the IC
