NOTE: For Wall Control, wire and insulated
staples locate Bags 6 and 7 from Box 2.

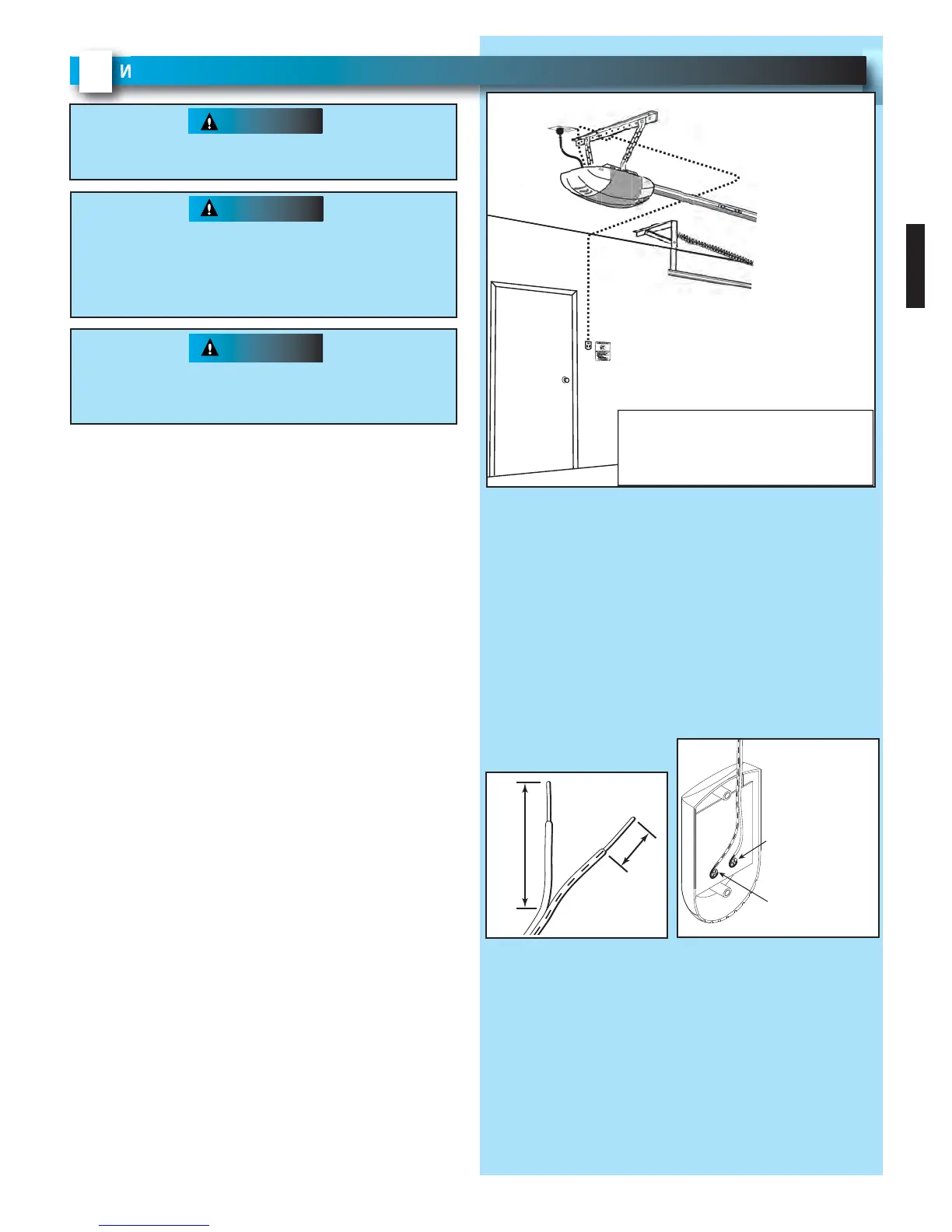

1. Wall Control location.
• Wall Control location should be in direct sight
of door.
• It should be at least five feet (5') above floor to
prevent small children from operating door.
• It must be away from any moving parts. (You
should NOT be able to reach the garage door
while standing at Wall Control.)
• Wall Control board screw connections are
polarized, (+) positive and (-) negative.
2a. Wiring (If pre-wired).
•Locate Wall Control pre-wired wire ends
(Fig. 3-1). (They should be located within the
guidelines mentioned above.)
• Split and strip ends of wire (Fig. 3-2).
•Fasten wire to Wall Control board screws on
back of Wall Control.
– Striped wire to the + (plus) terminal.
– White wire to the - (minus) terminal.
2b. Wiring (If NOT pre-wired).
• Pick a convenient location for mounting
Wall Control using the guidelines mentioned
above (Fig. 3-1).
• Run wire from power head to Wall Control
(Fig. 3-1).
• Split and strip ends of wire (Fig. 3-2).
•Fasten wire to Wall Control board screws on
back of Wall Control.
– Striped wire to the + (plus) terminal.
– White wire to the - (minus) terminal.
WALL CONTROL INSTALLATION
FOR HELP-1.800.354.3643 OR WWW.GENIECOMPANY.COM
3
Verify there is NO power to the opener before
installing Wall Control wires and Wall Control.
WARNING
Staples which are too tight can cut or pinch wires.
Cut or pinched wires can cause the Wall Control to
stop working. When using the insulated staples,
make sure you fasten them only as tightly as
needed to hold the wire snugly.
CAUTION
FIG. 3-2 Splitting and stripping
.
FIG. 3-1 Wall Control wire routing
To Next Page
