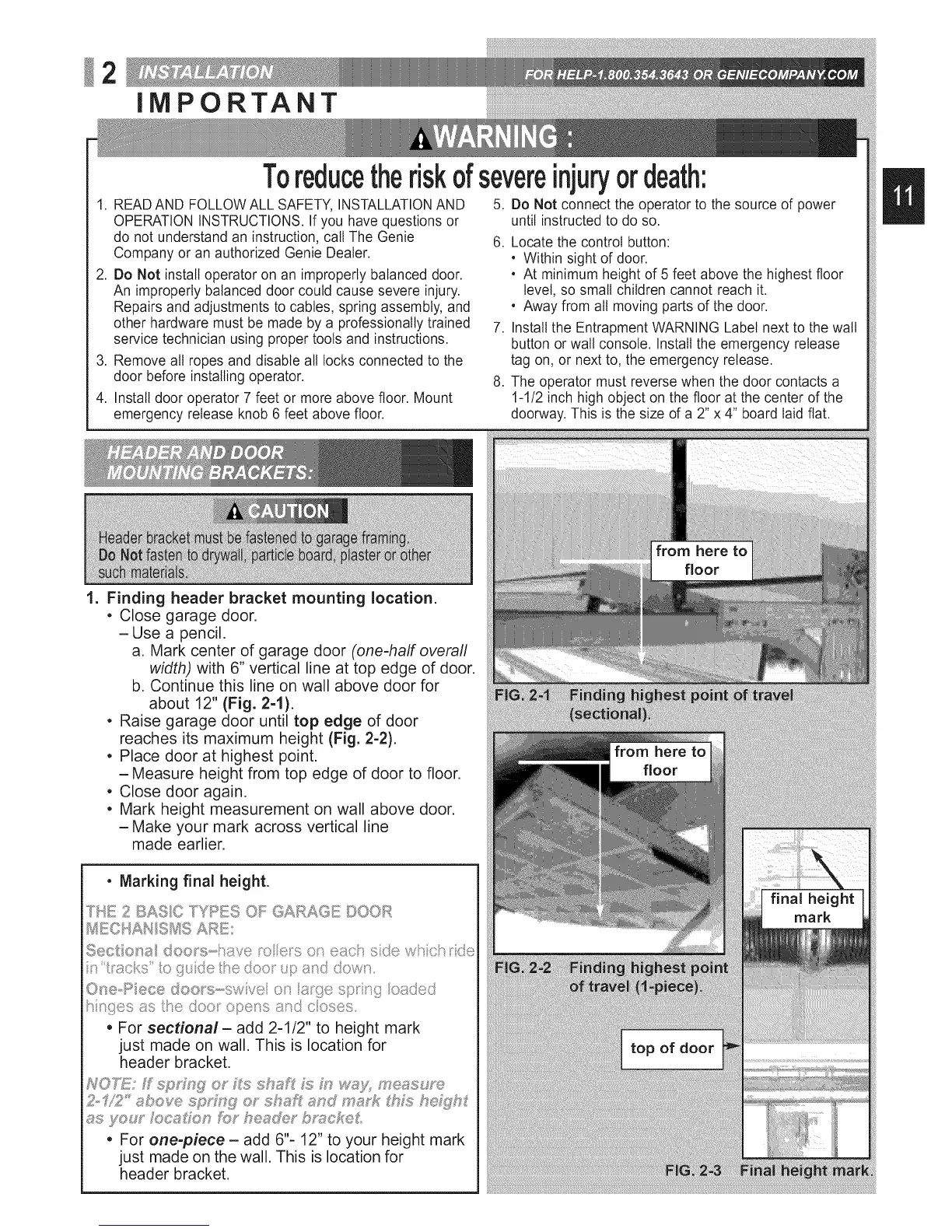

2
iMPORTANT
Toreducetheriskofsevereinjuryordeath:
1. READAND FOLLOWALL SAFETY, INSTALLATIONAND
OPERATIONINSTRUCTIONS.If you have questions or
do not understand an instruction, call The Genie
Company or an authorized Genie Dealer.
2. Do Not install operator on an improperly balanced door.
An improperly balanced door could cause severe injury.
Repairs and adjustments to cables, spring assembly, and
other hardware must be made by a professionally trained
service technician using proper tools and instructions.
3. Remove all ropes and disable all locks connected to the
door before installing operator.
4. Install door operator 7 feet or more above floor. Mount
emergency release knob 6 feet above floor.
5. Do Not connect the operator to the source of power
until instructed to do so.
6. Locate the control button:
. Within sight of door.
. At minimum height of 5 feet above the highest floor
level, so small children cannot reach it.
. Away from all moving parts of the door.
7. Installthe Entrapment WARNING Label next to the wall
button or wall console. Install the emergency release
tag on, or next to, the emergency release.
8. The operator must reverse when the door contacts a
1-1/2inch high object on the floor at the center of the
doorway.This is the size of a 2" x 4" board laid flat.
=
Finding header bracket mounting location.
• Close garage door.
-Use a pencil.
a. Mark center of garage door (one-half overall
width) with 6" vertical line at top edge of door.
b. Continue this line on wall above door for
about !2" (Fig. 2-1).
• Raise garage door until top edge of door
reaches its maximum height (Fig. 2-2).
• Place door at highest point.
- Measure height from top edge of door to floor.
• Close door again.
• Mark height measurement on wall above door.
- Make your mark across vertical line
made earlier.
, Marking final height.
TI"_E2 P _s_'__'_'_vlc__::_',OtC _'_:_J',,s #*'_:_DOOR
Sect ons d®o_s,,_,_ave _oe_s on each sde w_c_ _de
One,,,F;*ece do®_s,_sw ve on a%e sp_ s9 oaded
nnges as the doo_ opens a_d coses
• For secdona! - add 2-1/2" to height mark
just made on wall. This is location for
header bracket.
2-?_/;;__ aboye s@_;,?£ or shah and mau£ 8hTsheath
,, For one-piece - add 6"- 12" to your height mark
just made on the wall. This is location for
header bracket.
