Genie GS-3232 Service And Repair Manual

April 2017 Service and Repair Manual

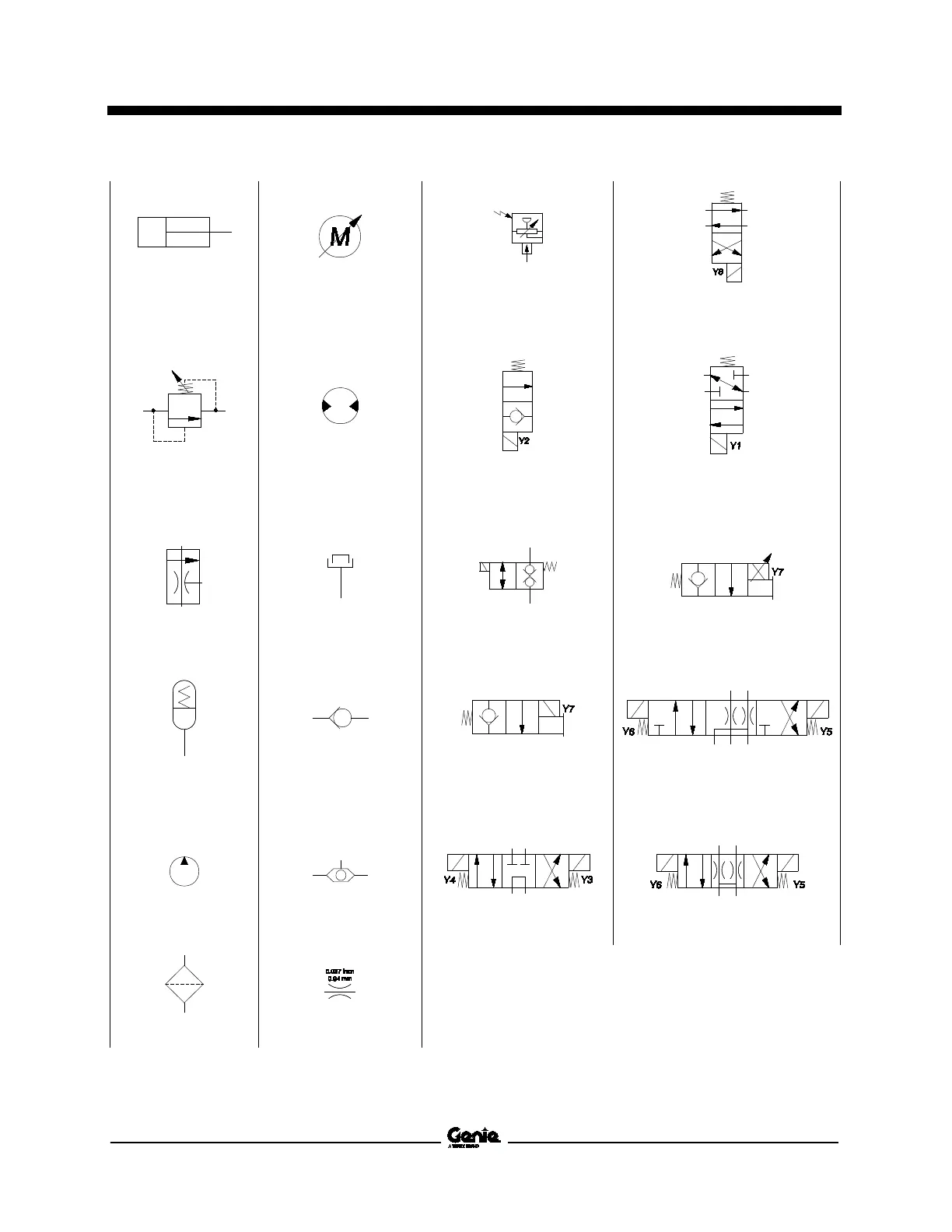

Hydraulic Symbols Legend
Part No. 1272217 GS-30 • GS-32 • GS-46 • GS-47 193
Hydraulic cylinder Variable speed motor Pressure transducer Solenoid operated
2 position 4 way
directional valve
Relief valve Bi-directional motor Solenoid operated
2 position 2 way
blocking valve
normally open
Solenoid operated
2 position 4 way
directional valve
Priority flow regulator Brake Solenoid operated
2 position 2 way valve
normally closed
Proportional solenoid operated
2 position 2 way directional valve
normally closed
Accumulator Check valve Solenoid operated
2 position 2 way
directional valve
normally closed
Solenoid operated
3 position 5 way
directional valve
Fixed displacement
pump
Shuttle valve Solenoid operated 3 position
4 way directional valve
Solenoid operated 3 position 4 w
ay
directional valve
Filter Orifice with size

Genie GS-3232 Specifications

General

Lift Capacity	500 lbs
Power Source	Electric
Battery Voltage	24 V
Gradeability	25%
Platform Height	32 ft
Machine Width	32 in
Drive Speed - Stowed	3.5 km/h
Drive Speed - Raised	0.5 mph
Drive Speed	3.5 km/h
Overall Width	32 in
Working Height	38 ft
