Genie GS-3232 User Manual

Sixth Edition • Ninth Printing Operator's Manual
Controls
Part No. T107026 GS-30 • GS-32 • GS-46 • GS-47 23
Controls

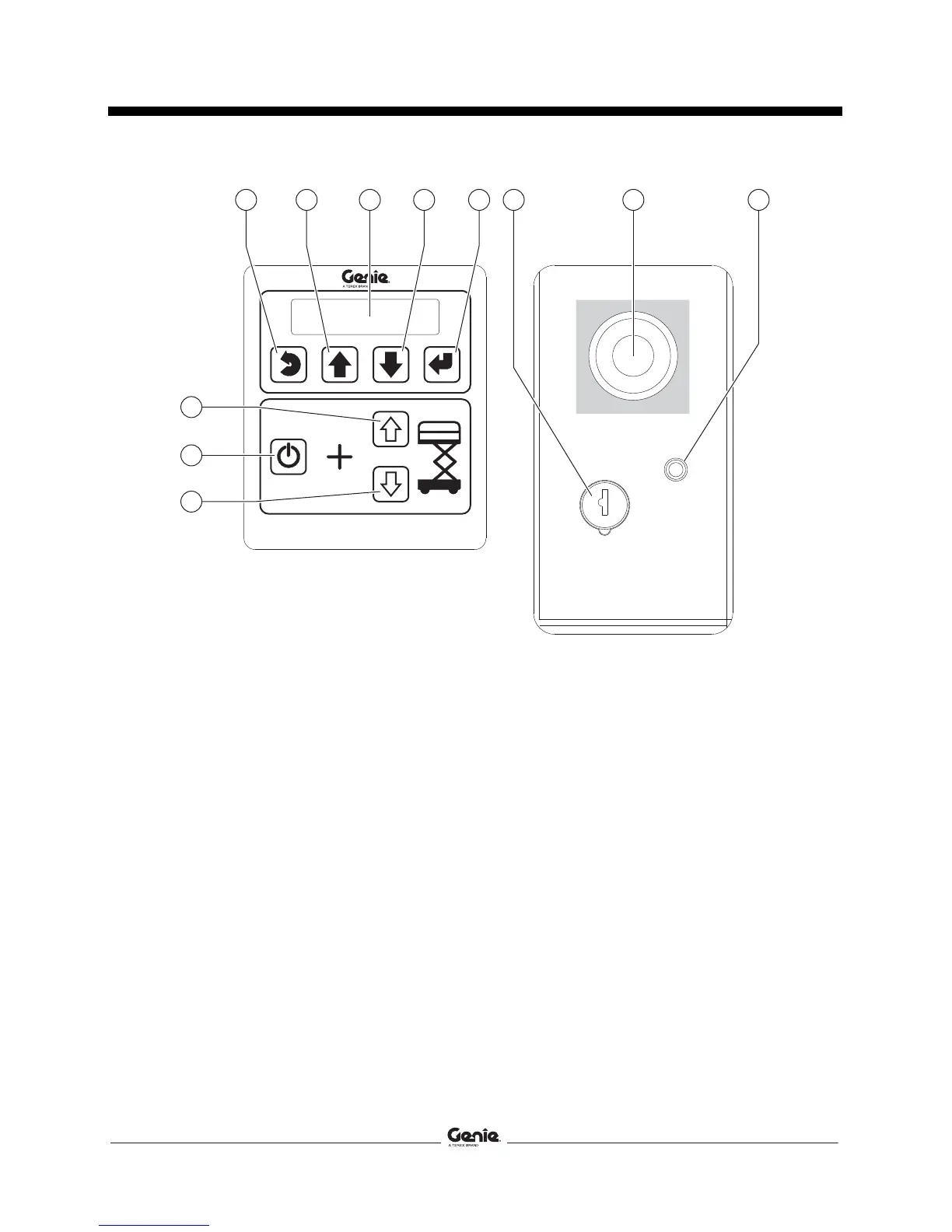

Ground Control Panel
1 Menu escape button
2 Menu up button
3 LCD diagnostic readout
4 Menu down button
5 Menu enter button
6 Key switch for platform/off/ground selection
Turn the key switch to the platform position and
the platform controls will operate. Turn the key
switch to the off position and the machine will be
off. Turn the key switch to the ground position
and the ground controls will operate.
7 Red Emergency Stop button
Push in the red Emergency Stop button to the
off position to stop all functions. Pull out the red
Emergency Stop button to the on position to
operate the machine.
8 7A breaker for electrical circuits
9 Platform down button
10 Lift function enable button
Press and hold this button to activate the lift
function.
11 Platform up button
STOP
72143 A
137562
43
2
1
11
1 2 3 4 5 6 7 8
9
10

Genie GS-3232 Specifications

General

Lift Capacity	500 lbs
Power Source	Electric
Battery Voltage	24 V
Gradeability	25%
Platform Height	32 ft
Machine Width	32 in
Drive Speed - Stowed	3.5 km/h
Drive Speed - Raised	0.5 mph
Drive Speed	3.5 km/h
Overall Width	32 in
Working Height	38 ft
