One-Piece Doors
5

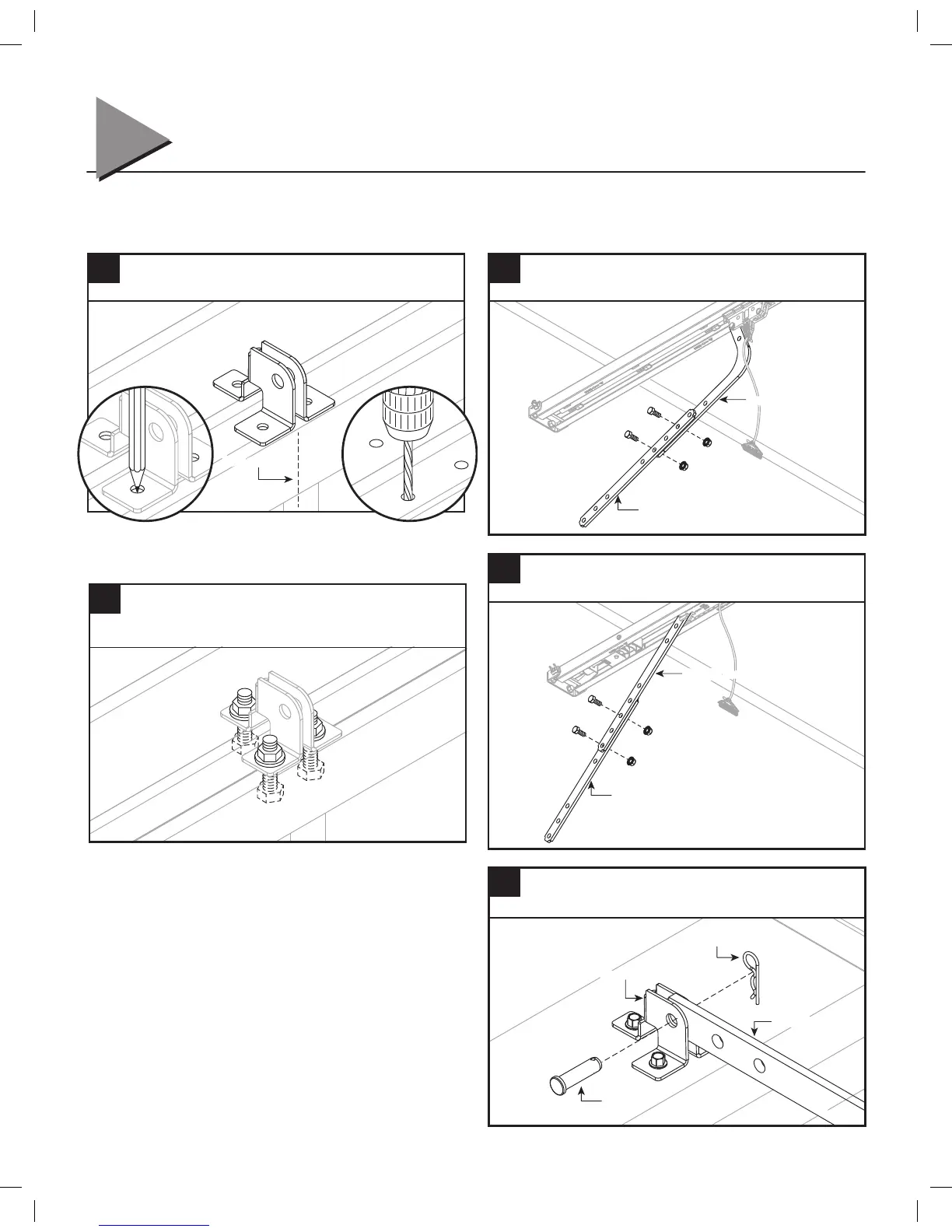

ATTACHING DOOR BRACKET TO DOOR
NOTE: Center bracket on door as high as possible, preferably top edge.
ATTACHING DOOR ARM TO DOOR BRACKET
1
Using bracket, mark holes on door or frame and drill
5/32" hole completely through door frame.
Door centerlineDoor centerline
2
Secure bracket with 5/16" x 2" or 5/16" x 4-1/2" carriage
bolts and nuts or drill 1/8" pilot holes and secure with 1-1/2"
to 2" lag bolts. (Bolts, nuts, and screws not furnished.)
Screw drive models:
One-Piece Doors will only accept a straight door arm.
Straight door arm (not included)Straight door arm (not included)
Curved door armCurved door arm
3/8" Lock nut3/8" Lock nut
3/8"-16 x 7/8"
Bolt
1a
Chain/belt drive models:
One-Piece Doors will only accept a straight door arm.
Straight door arm (not included)Straight door arm (not included)
Straight door armStraight door arm
3/8" Lock nut3/8" Lock nut
3/8"-16 x 7/8"
Bolt
1b
2
Secure door arm to the door bracket and with clevis pin
and cotter pin.
Clevis pinClevis pin
Door bracketDoor bracket
Cotter pinCotter pin
Straight door arm
Straight door arm
15
