14

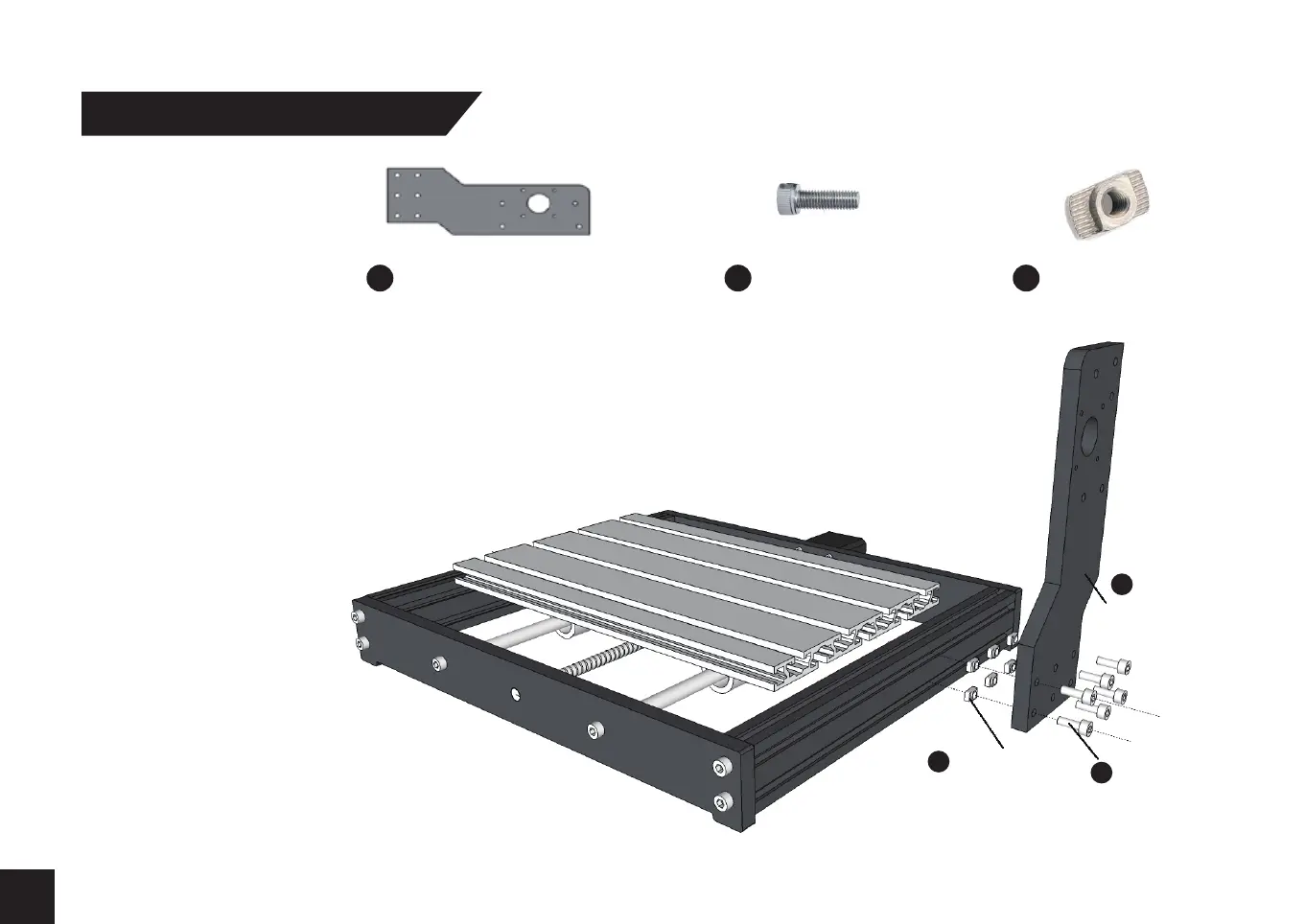

Step 4 Top Frame Assembly
STEP 1: Position the Bakelite Pillars with a spacing of 46.5mm between rear frame
piece and back of the pillar as shown in the Completed View on the next page.
Tip: When installing T-Nuts it helps to twist them onto the bolts a few turns keeping
them in place before placing into the Aluminum slot.
What you will need
10
Bakelite Resin Plate C (6) Bolt M5 x 16
32
(6) T-Nut 20M5
35
(6) T-Nut 20M5
35
(6) Bolt
M5 x 16
32
10
Bakelite Resin
Plate C
To Next Page
