Genmitsu 3018-PRO - Step 12 Wiring Diagram

24

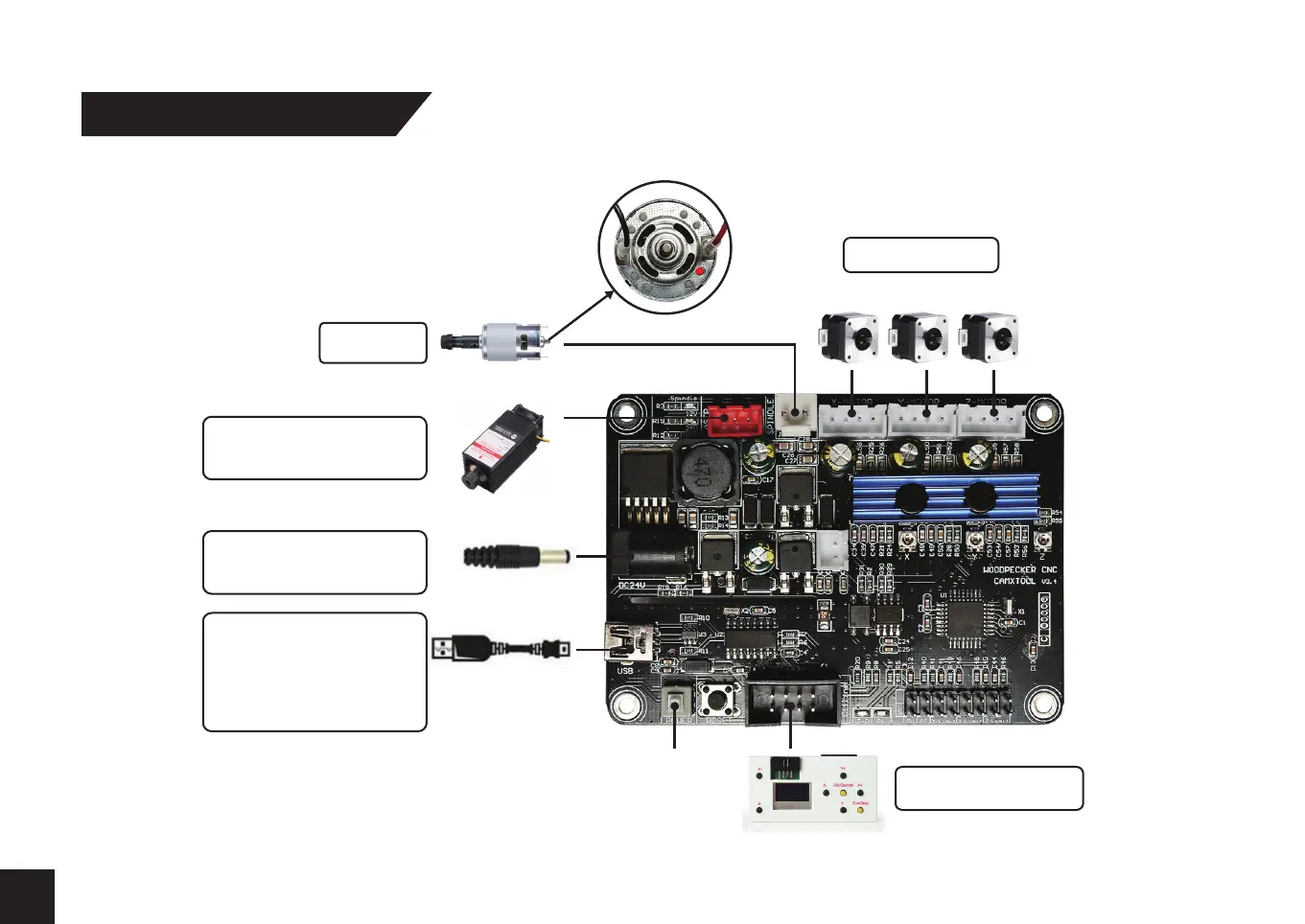

Step 12 Wiring Diagram
Spindle
17
USB
Connect your CNC to
computer using the
bundled USB cable
Stepmotor
Connect the red wire to the
port next to the red mark
X Y Z
Laser (12V 5Amax)
(Not include)
24V DC Power
adapter
Offline controller
POWER
ON/OFF
