Genmitsu 3018-PRO - Page 18

Brass Nut

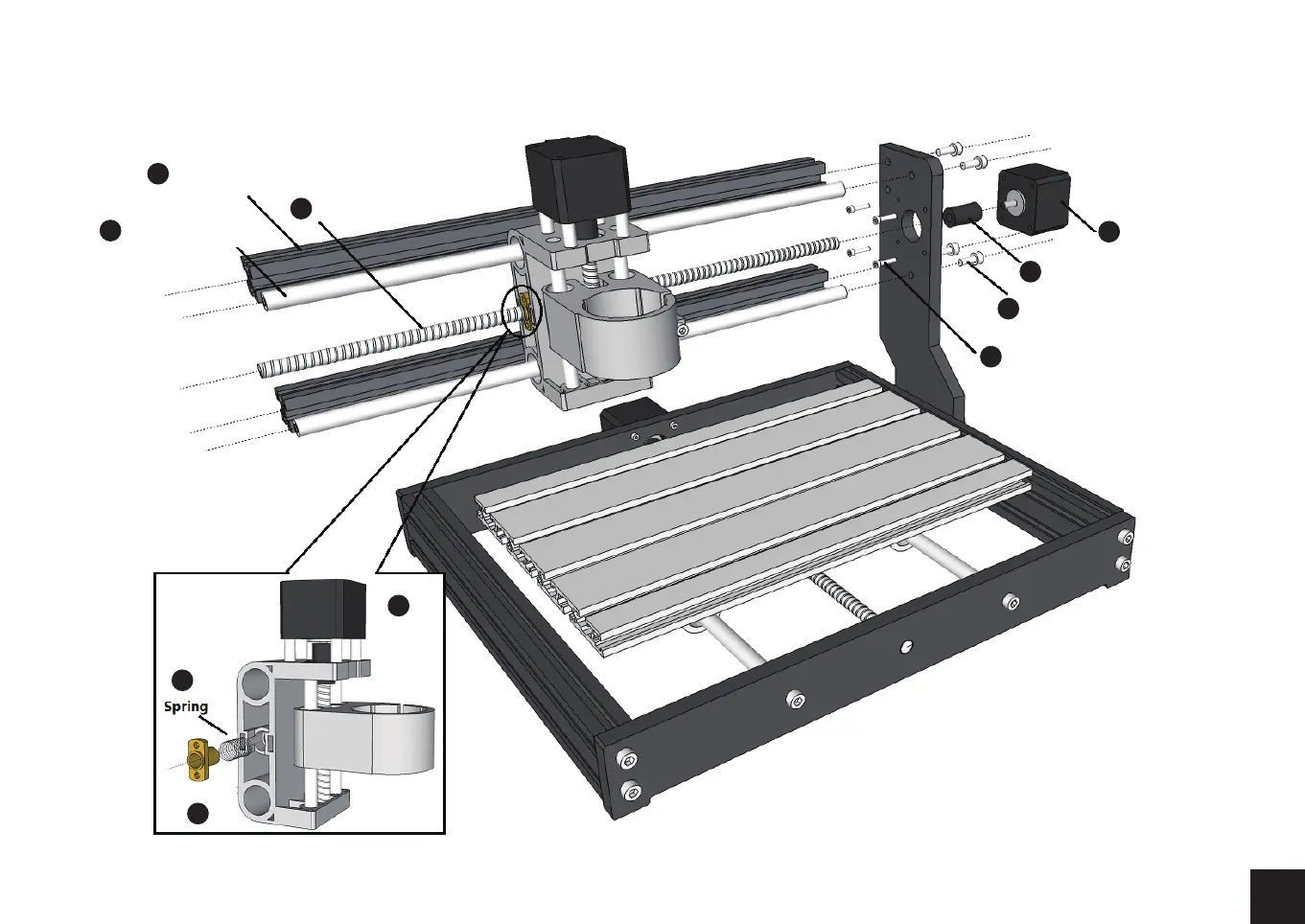

X-Z Axis
Assembly
17
14
(4) Bolt M5 x 16
32
34
37
(2) Aluminum Profile
20 x 20 x 360mm
2
4
(2) Guide
Rail X Axis
Ø10 x 360mm
Lead Screw 365mm
6
Stepper
motor
12
Coupling &
Set Screw
38
(4) Bolt M3 x 14
33
