Front panel

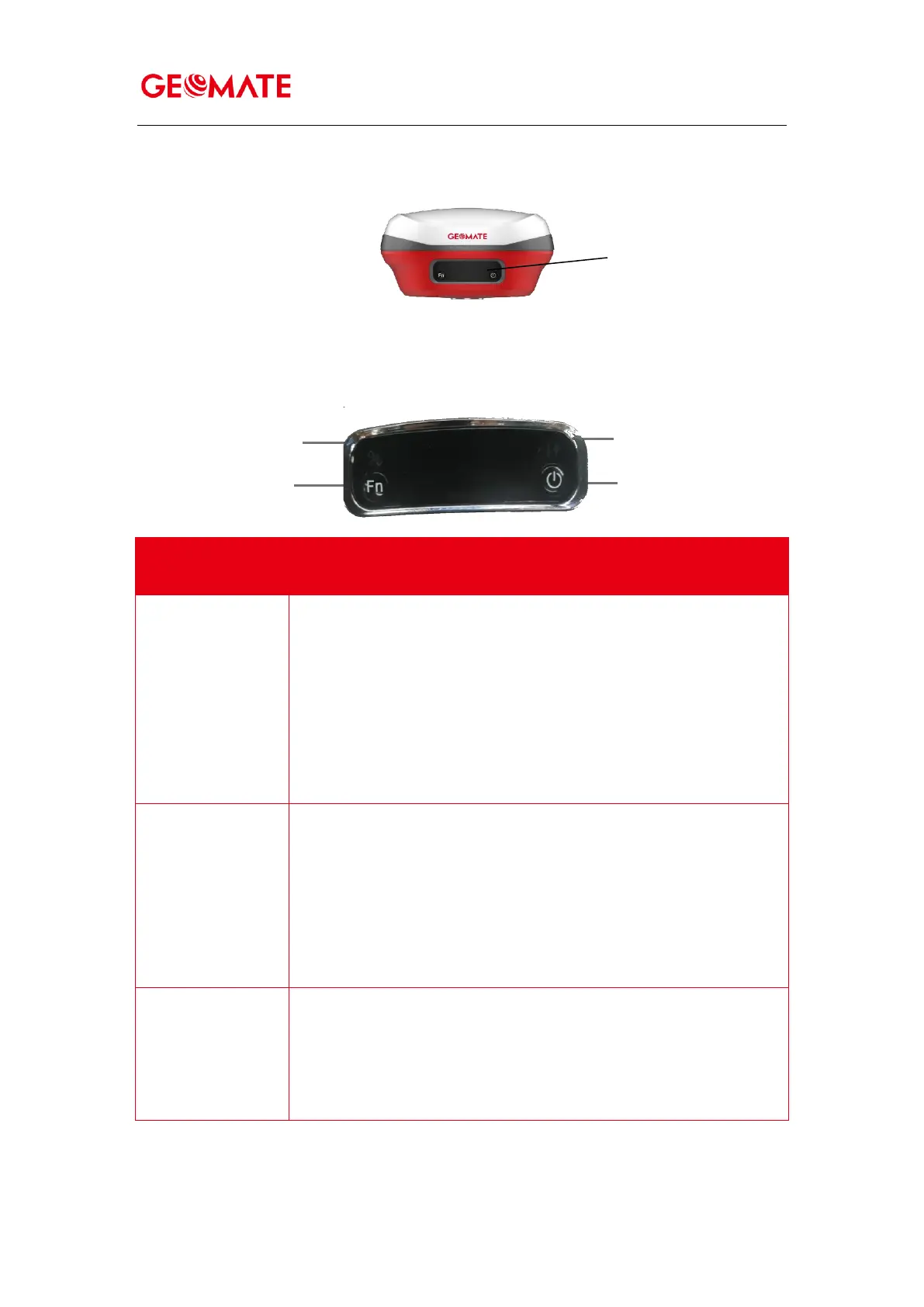

The front panel contains two indicator LEDs and two buttons.
Satellite LED
Correction LED
Function button
Power button
Name
Description
Correction LED
(Yellow/Green)
• Indicates whether the receiver is transmitting/receiving
differential data.
• As a Base station: successfully transmitting differential
data, flash yellow light.
• As a Rover station: successfully receiving differential data
from Base station will flash yellow light when it is single or
float, flash green light when it is fixed.
Satellite LED (Blue)
• Shows the number of satellites that the receiver has
tracked.
• When the receiver is searching satellites, the blue LED
flashes once every 5 seconds.
• When the receiver has tracked N satellites, the blue LED
will flash N times every 5 seconds.
Fn button (White)
• Move to next line of the menus or options.
• Move to next character of the value that you want to
make change.
• Cancel the change you make on a function.
