GEOMATE SG7 - Communication Ports Definition; IO Port Definition

Communication Ports Definition
GEOMATE SG7 GNSS USER GUIDE | 2022-07 P a g e | 79
A Communication Ports Definition

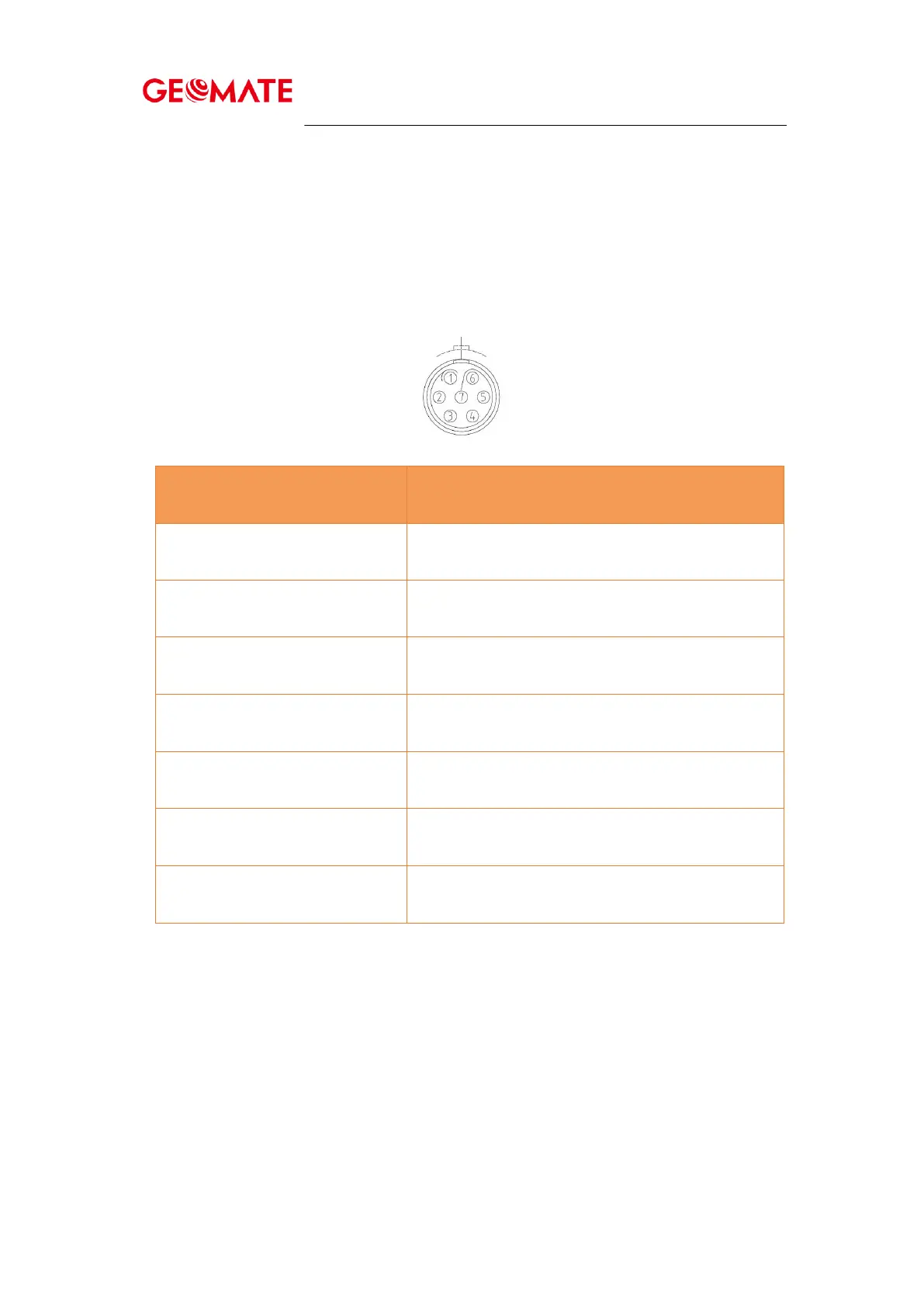

AI GEOMATE SG7 Receiver IO Port (7-pin Lemo Port)
Definition
PIN
FUNCTION
1
Ground ( - )
2
Ground ( - )
3
RS232-TX (Output)
4
PPS
5
Not Used
6
VIN
7
RS232-RX (Input)
