GeoVision GV-VS14 How-To Guide

10
PTZ and PT Camera
There are two types of default settings: camera default settings and system default
settings. Camera default settings include all settings on Iris, White Balance, Image Reverse
and Other in the VISCA OSD Configuration dialog box. System default settings refer to all the
settings of the PTZ / PT camera except the camera settings.

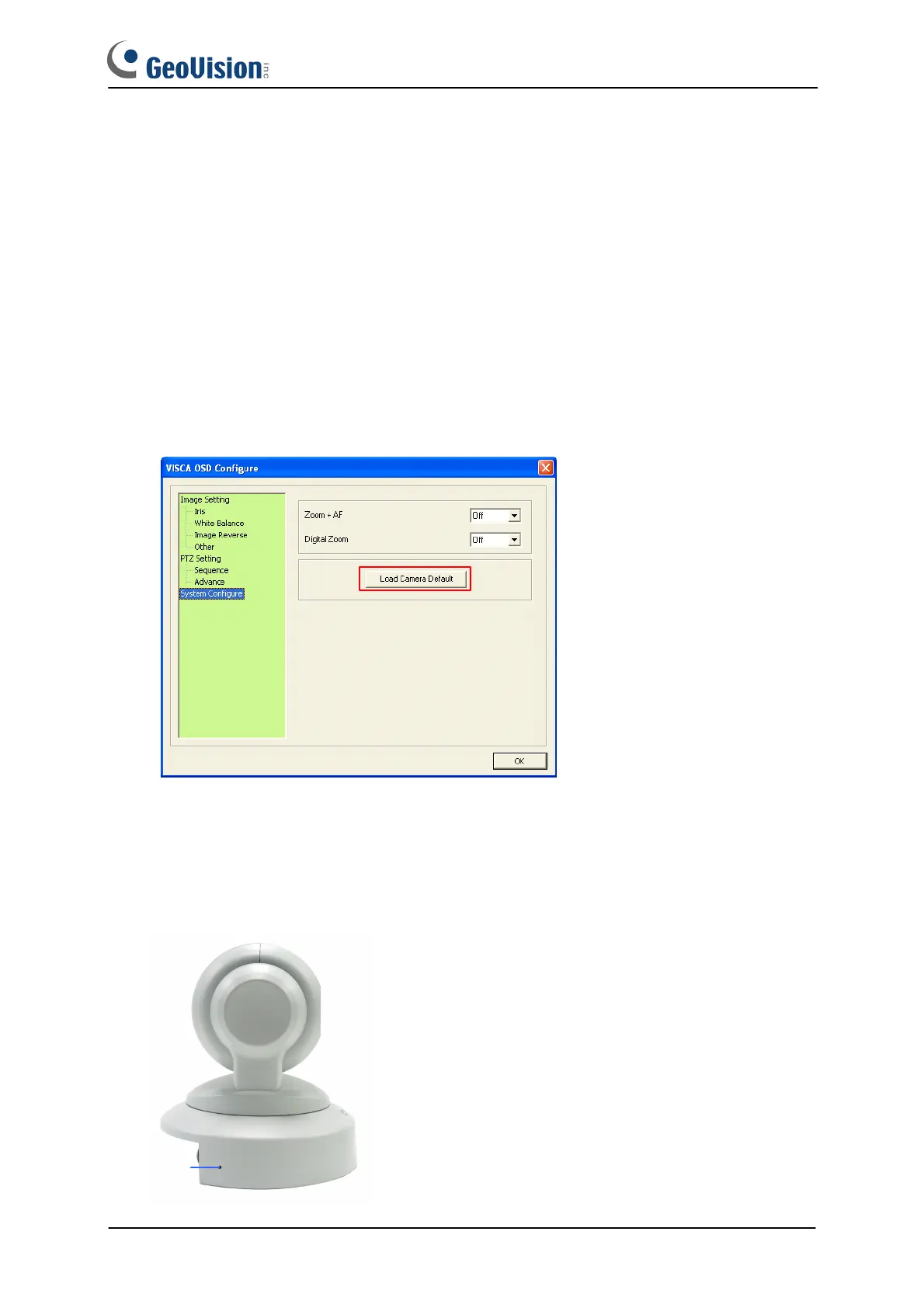

 To load camera default settings (only available in PTZ camera):
1. On the left menu of Web interface, select Digital I/O and PTZ, select PTZ Settings, and
select System Configure. The VISCA OSD Configure dialog box appears.
2. Click the Load Camera Default button.
 To load system default settings:
1. Unplug the power cable and the network cable (or the PoE cable).
2. Press and hold the default button.
Load
Default

GeoVision GV-VS14 Specifications

General

PAL resolutions	704 x 576, 704 x 576, 352 x 288, 352 x 288, 176 x 144 pixels
NTSC resolutions	704 x 480, 704 x 480, 352 x 240, 352 x 240, 176 x 112 pixels
Channels quantity	4 channels
Maximum frame rate	30 fps
Maximum video resolution	704 x 576 pixels
Video compression formats	H.264, M-JPEG
PTZ control	Yes
Compatible operating systems	Windows XP\\r Windows Vista\\r Windows 7\\r Windows 8\\r Windows Server 2008\\r Windows Server 2012
Product color	Black, White
Supported network protocols	HTTP, HTTPS, TCP, UDP, SMTP, FTP, DHCP, NTP, UPnP, DynDNS, 3GPP/ISMA, Multicast, RTSP, QoS (DSCP), SNMP
Copper ethernet cabling technology	100BASE-T, 10BASE-T
BNC input ports	4
I/O terminal ports	-
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	1
Minimum system requirements	Internet Explorer 7+
Power requirements	12V, 1.35A
Operating temperature (T-T)	-20 - 55 °C
Operating relative humidity (H-H)	0 - 85 %

Weight and Dimensions

Weight	730 g
Dimensions (WxDxH)	145 x 174 x 40 mm
