Decomat 4656Installation instructions
5
9809
>15 mm
V320
100 + 5 mm
>15 mm
V192
Wall-mounted model
• If the machine is fitted with two doors and is to be installed in a wall, the
clearance between wall and machine must be at least 15 mm.
• If several machines are mounted in-line, they must be adjusted to the same
height when being installed (especially important when a loading trolley is
used).

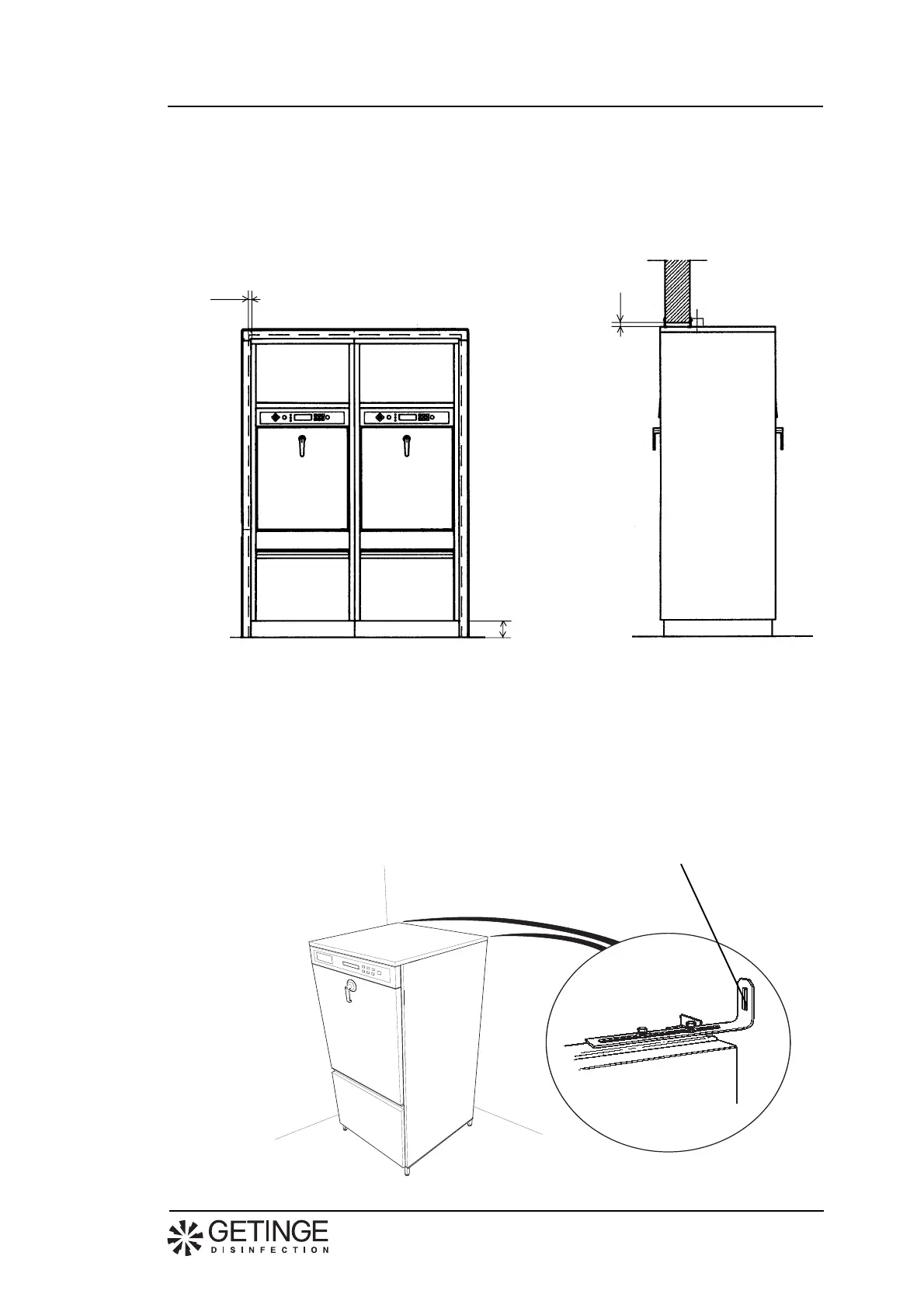

Fig. 3. Installed in wall
Free-standing model
• Screw off the front panel with the two screws. Lift up and unhook the top
cover.
• Screw the two anti-topple brackets to the wall and tighten the securing screws
to the machine.
• Fit the top cover and front panel.
Fig. 4 Anti-topple bracket
anti-topple bracket
V168
