Decomat 4656Installation instructions
7
9809
Connection of electricity, water, steam and drain
Installation may be made by authorized personnel only.
• The machine should be fitted with a power cut-off device with a 3 mm gap in
the mains supply feed to facilitate maintenance and servicing.
• Position the disconnecting switch easily accessible on the wall.
• A cable (length 1.5 metres) for connecting to the disconnecting switch
accompanies the machine.
The electric installation in the operating switch located to the left below the
washing chamber of the machine is made as follows:
• The disinfector is connected to protective earth and to the supply voltage
indicated on the data plate.
• Ensure that the correct size of fuse is fitted. The fuse value is stated on the
data plate.

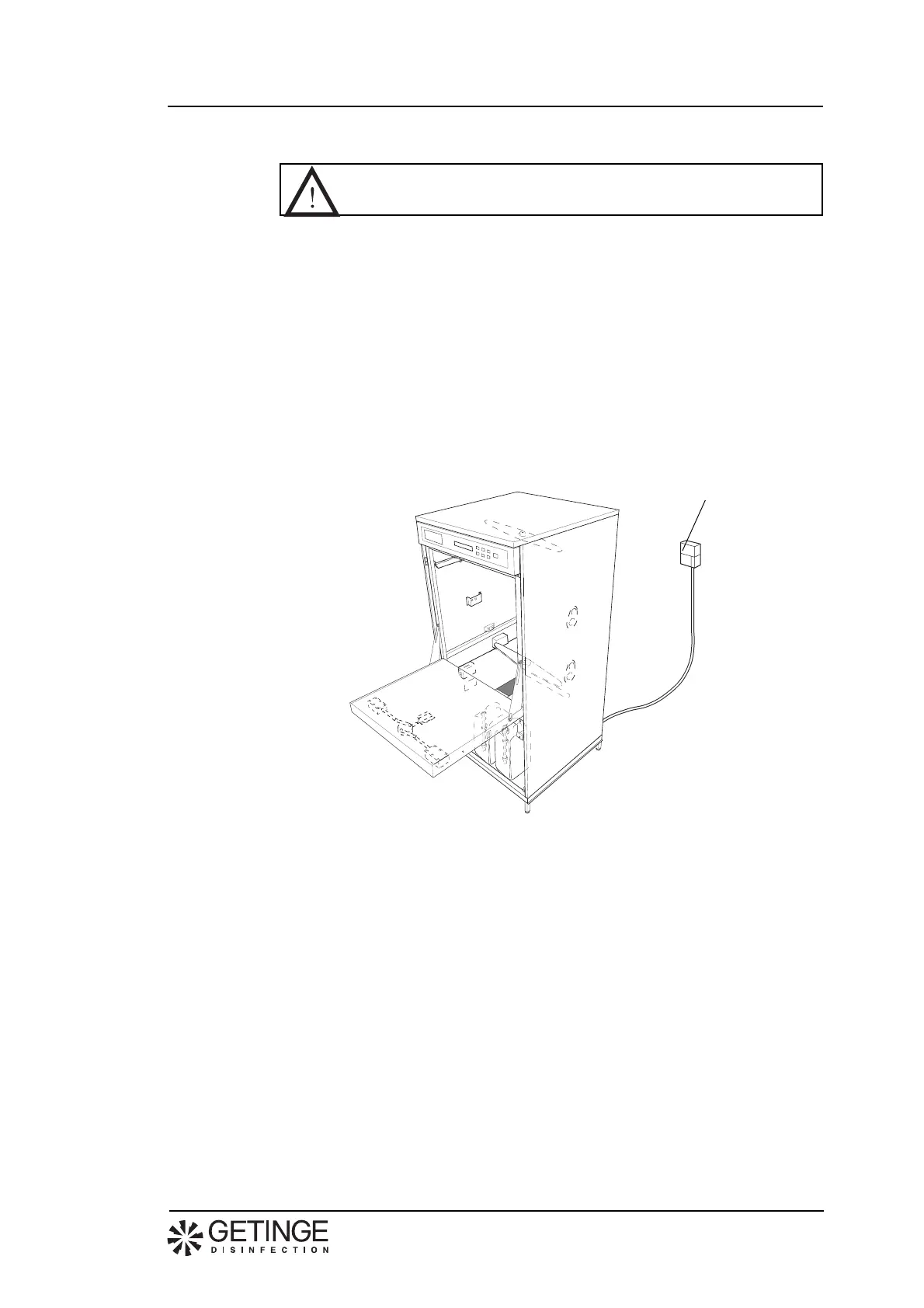

Fig. 6. Electrical connection (see electric circuit diagram in the service
instructions)
Power cut-off
device
V221
