Installation instructionsDecomat 4656
9809
• Fit the connections for water, and steam if used, with separate shut-off cocks.
Flush the water and any steam pipes that are to be connected to the machine
so that they are clean and thus prevent clogging of filters and valves.
• Connect the disinfector to the cold and hot water supply, and to steam and
condensate connections if relevant. The connections must be in compliance
with the following requirements:
Connection Pressure Consumption
Cold water 1/2” (15 mm) 100-800 kPa >13 litres per phase
Hot water 1/2” (15 mm) 100-800 kPa >13 litres per phase
Distilled water/Deionized water 3/4" (20 mm) 50-800 kPa* >13 litres per phase
Steam 1/2” (15 mm) 300-500 kPa 0.5 kg/min (300 kPa)
Condensate 1/2” (15 mm)
* A separate supply pump must be used if pressure is below 50 kPa.
• Teflon tape is recommended for the sealing of connections.

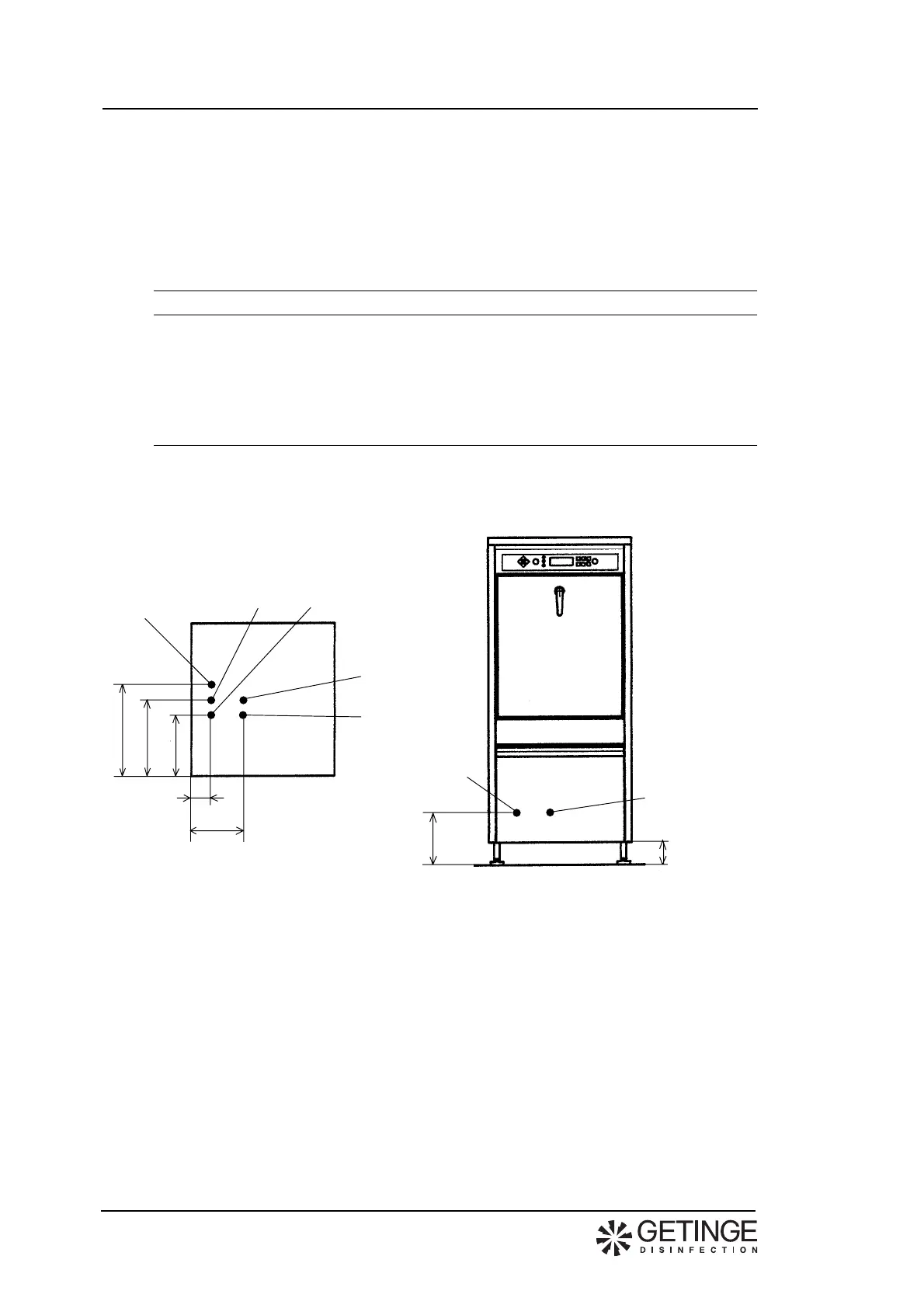

Fig. 7. Connection of water, steam and condensate
90
235
275
345
415
Front
200
V196
100
V195
Condensate
Steam
Steam, condensate
Water connections
Hot water
Cold water
Distilled/
ionized water
• Connect the disinfector to a drain that has a capacity of at least 30 litres per
minute. The drain may be connected to the rear or downwards as indicated in
figure 6. Diameter of drain: 50 mm.
