Pre-installation

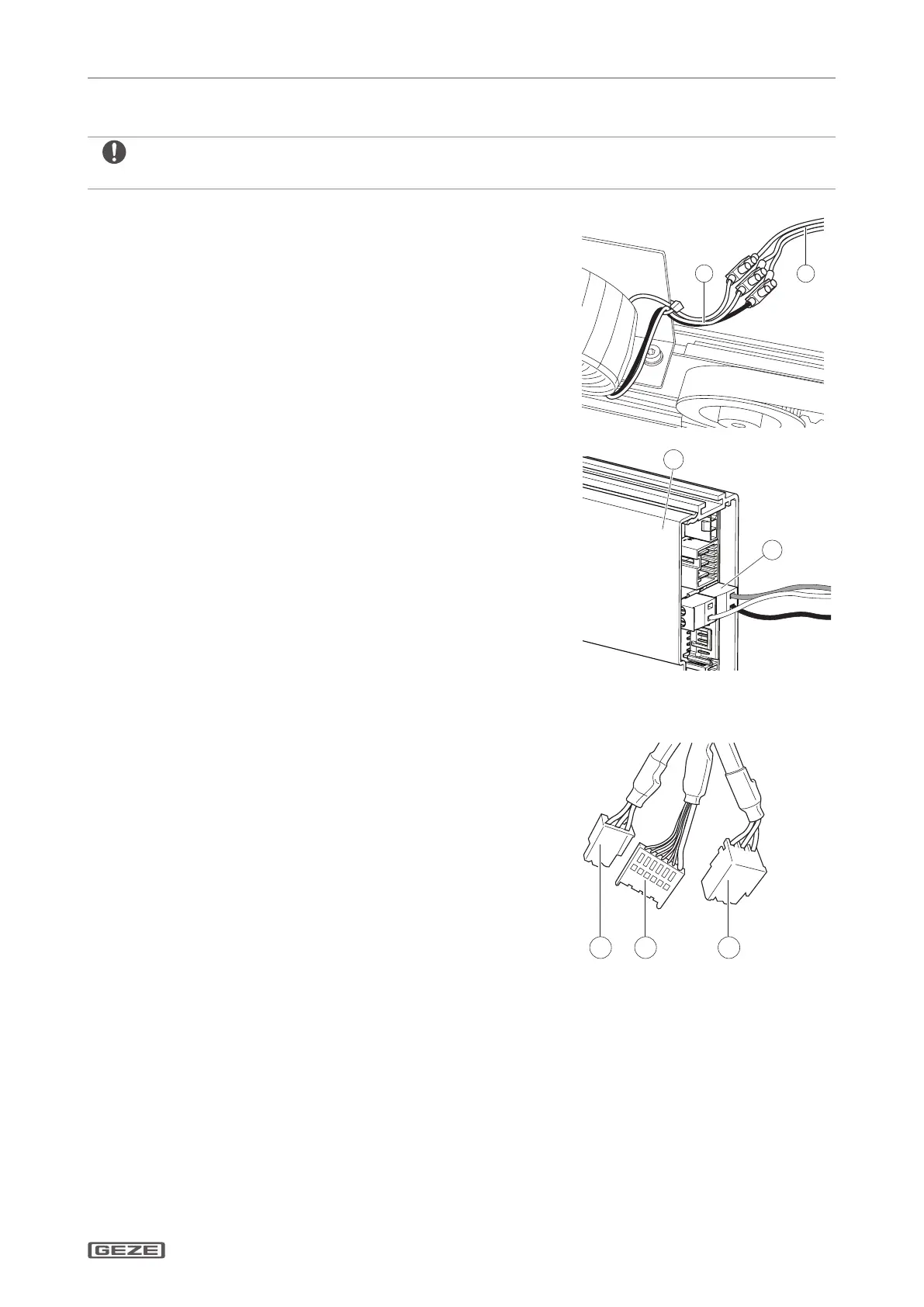

5.4 Connecting transformer and control unit
Note earthing connection!
Do not mix up cores!
X
Strip the three-core cable (2), attach insulated wire-end ferrules
and connect to cable (1) at the transformer (see wiring diagram).
X
Lay cable (2) to the control unit.
X
Shorten and strip cable (1) if required.
X
Attach the insulated wire-end ferrules and connect to the con-
nector (3) (see wiring diagram)
X
Connect the connector (3) to the control unit (4).
