ECdrive H
8
Pre-installation
X

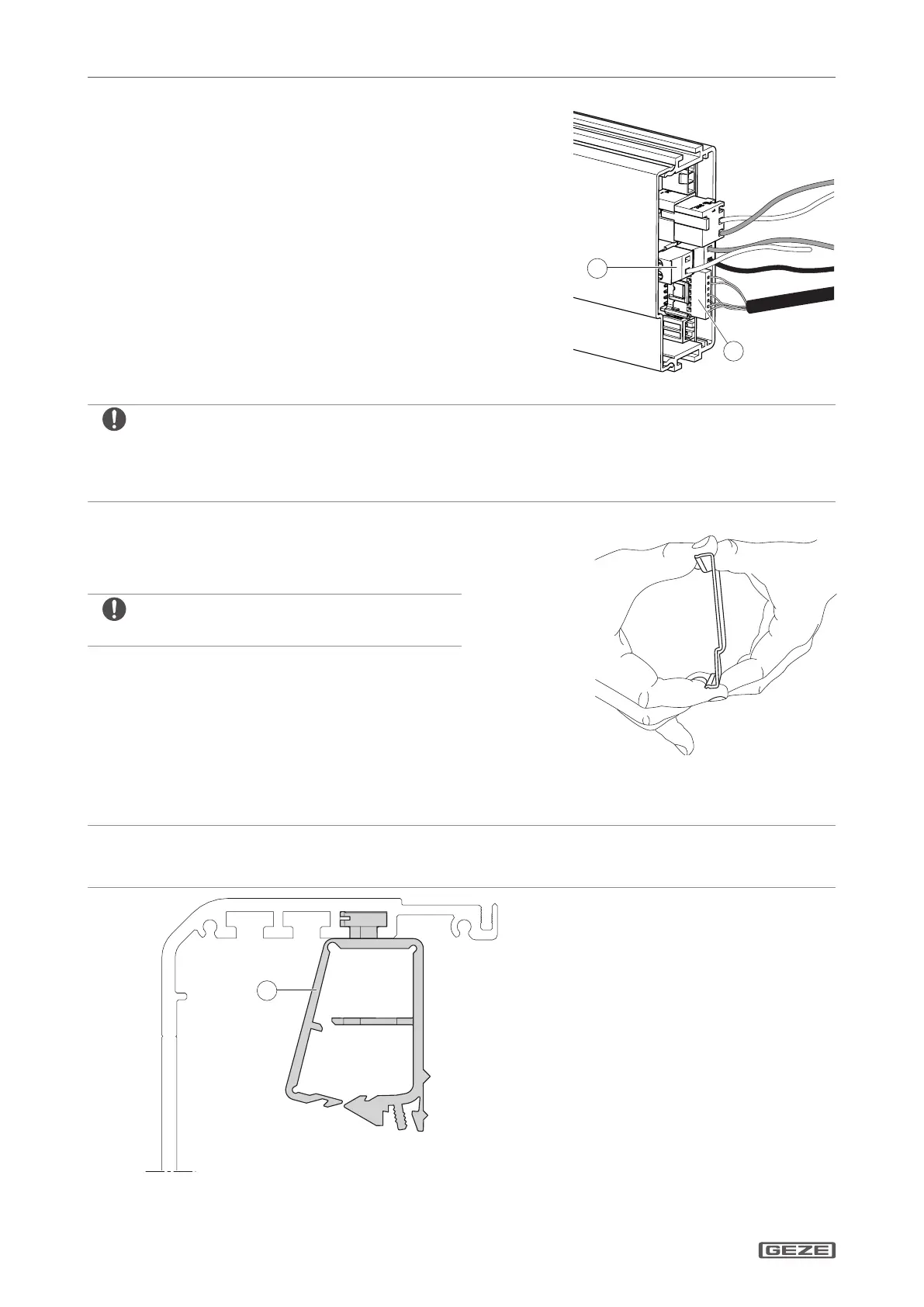

Lay rotary transducer cable (2) and motor connection cable (3) to
the control unit.
X
Insert the connector into the control unit.
Do not plug rechargeable battery cable into the control unit yet.
The rechargeable battery is not connected to the control until the production test and commissioning.
X
Check whether the rechargeable battery cable (1) is long enough. Extend it using the rechargeable battery
extension cable if necessary.
When carrying out maintenance work, the connection between the battery and control must be disconnected!
X
Install cover on the control unit and engage.
The holding force of the cover can be increased
by slightly bending the cover.
When installing the cover, do not pinch the cables.
5.6 Installing cable holders
CAUTION!
Cables can be cut!
X
Lay the cables so that there are no cables in the area of moving parts.
X
Secure cable holder (1) on running rail.
