ECdrive H
10
Installation
6 Installation
6.1 Preparations on site
Check the preparations made on site by the customer to ensure proper installation:
à Type and load capacity of the façade construction or base construction
à Evenness of the installation surface
à Cable plan requirements
6.2 Installation
X
Secure workplace against unauthorised entry.
X
Always perform work with a second technician.
X
Use a stepladder or stepstool.
X
Keep inside area of running rail clean.
6.2.1 Installing runner
113
158
200
113.6
X

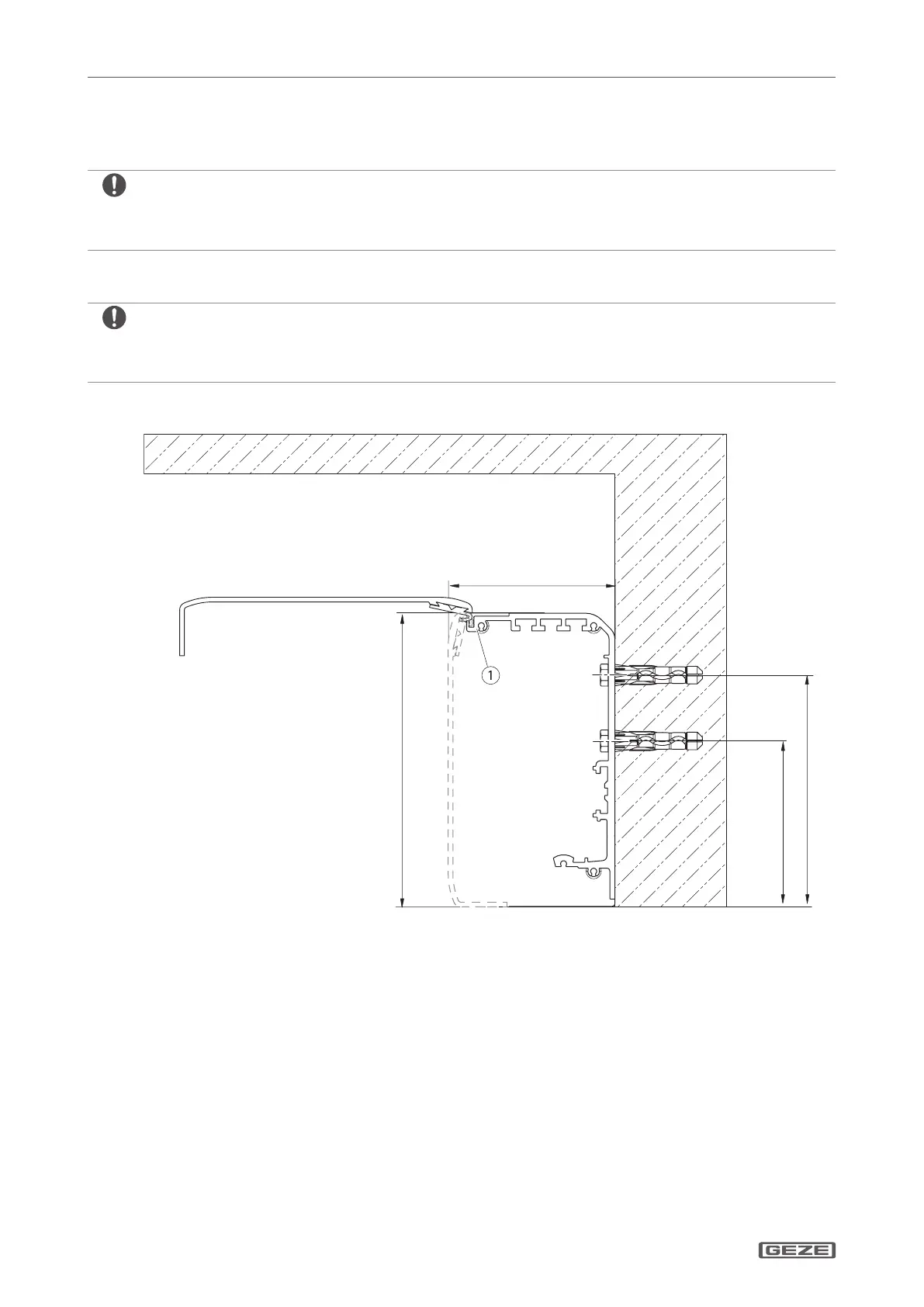

Drill the running rail (1) in accordance with the local conditions (see installation diagram).
X
Drill the holes on the wall/the screw in accordance with the running rail (1).
X
Prepare cable routing in accordance with local conditions.
X
Screw on the running rail.
X
Install draught sealing proles according to local conditions (see installation diagram).
X
Press rubber seal into the draught sealing proles.
