ECturn Inside
21
Installation
X

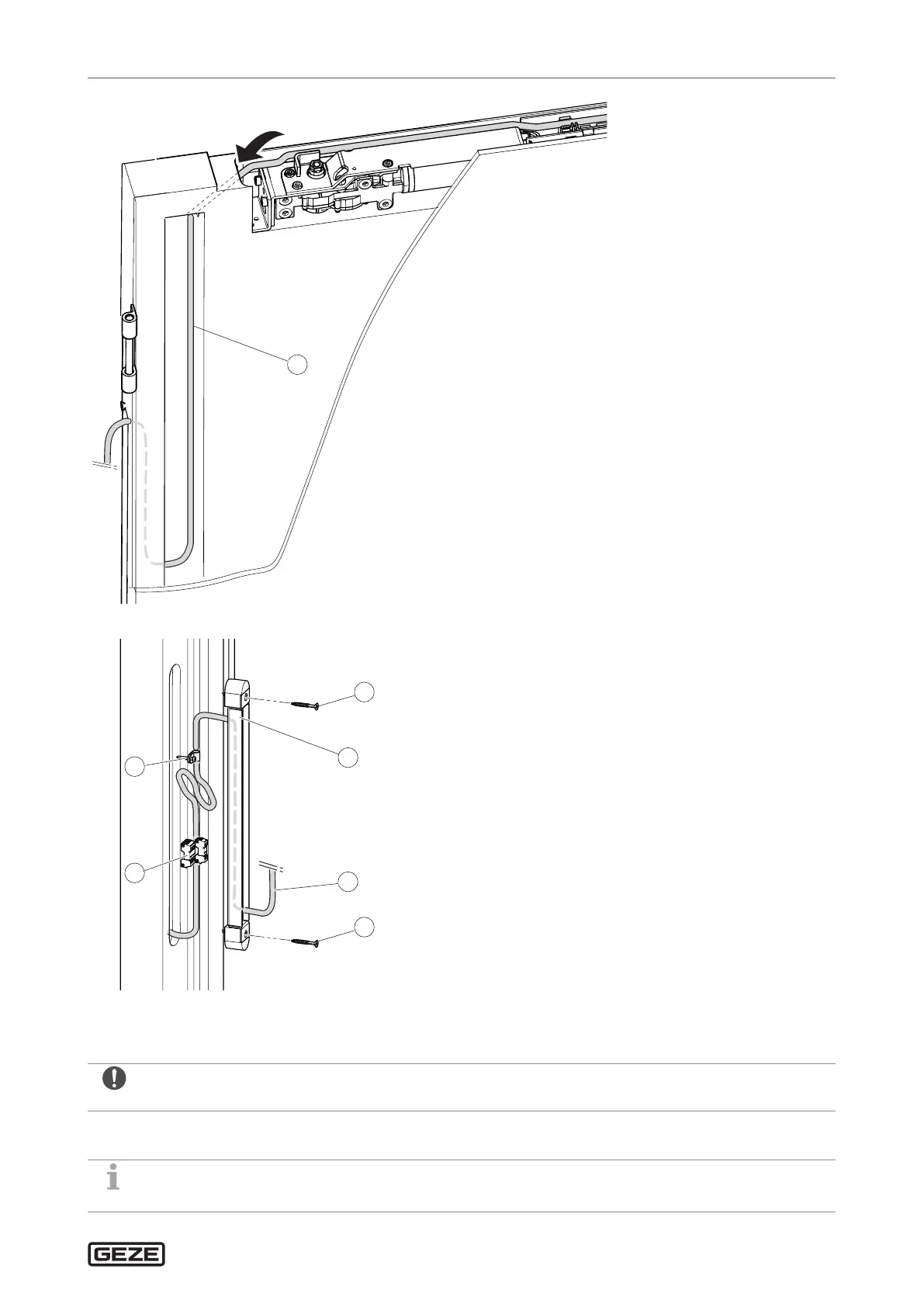

Route the cable (4) further through the door leaf and the drip loop of the door leaf.
X
Route the cable (4) through the drip loop (5) of the frame.
X
Secure with strain relief (7).
X
Use the cable (4) to form a loop near the interface (8).
X
Make sure that the loop is sufficiently large to prevent any strain on the cable when the door is opened.
X
Disconnect the cable.
X
Strip the cable ends and integrate connector (5).
X
Use 1 mm² wire end sleeves.
