Structure5
System parts and options
The door drive unit can be mounted in transom mounting at the lintel or in door panel mounting on the door à
panel.
The door drive is available as a 1-leaf version. à
The operating elements are arranged dierently depending on the situation. à
For technical reasons, we cannot show all of the possibilities here.

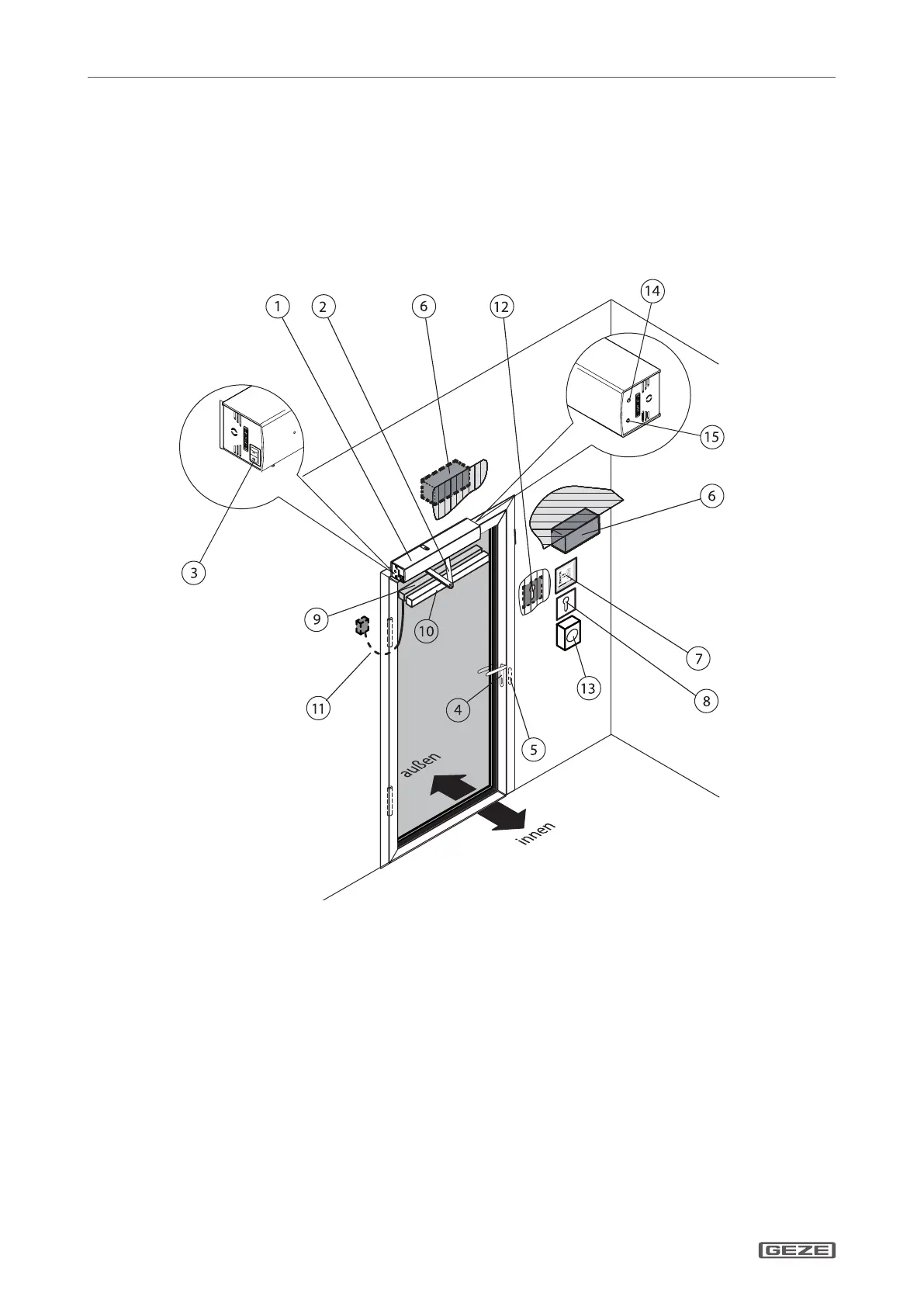

Door drive unit1
Link arm or guide rail2
Internal programme switch3
Door handle with door lock4
Electrical door opener5
Contactor6
Button programme switch7
Key-operated switch: Enabling of button pro-8
gramme switch
Safety sensor open (SIO)9
Safety sensor close (SIS)10
Door transition cable11
Contactor authorised (KB)12
Stop switch13
Operating modes switch14
Operating mode LED15
