Instruction manual Mounting the Multifunctional Module in the Ball Valve
9

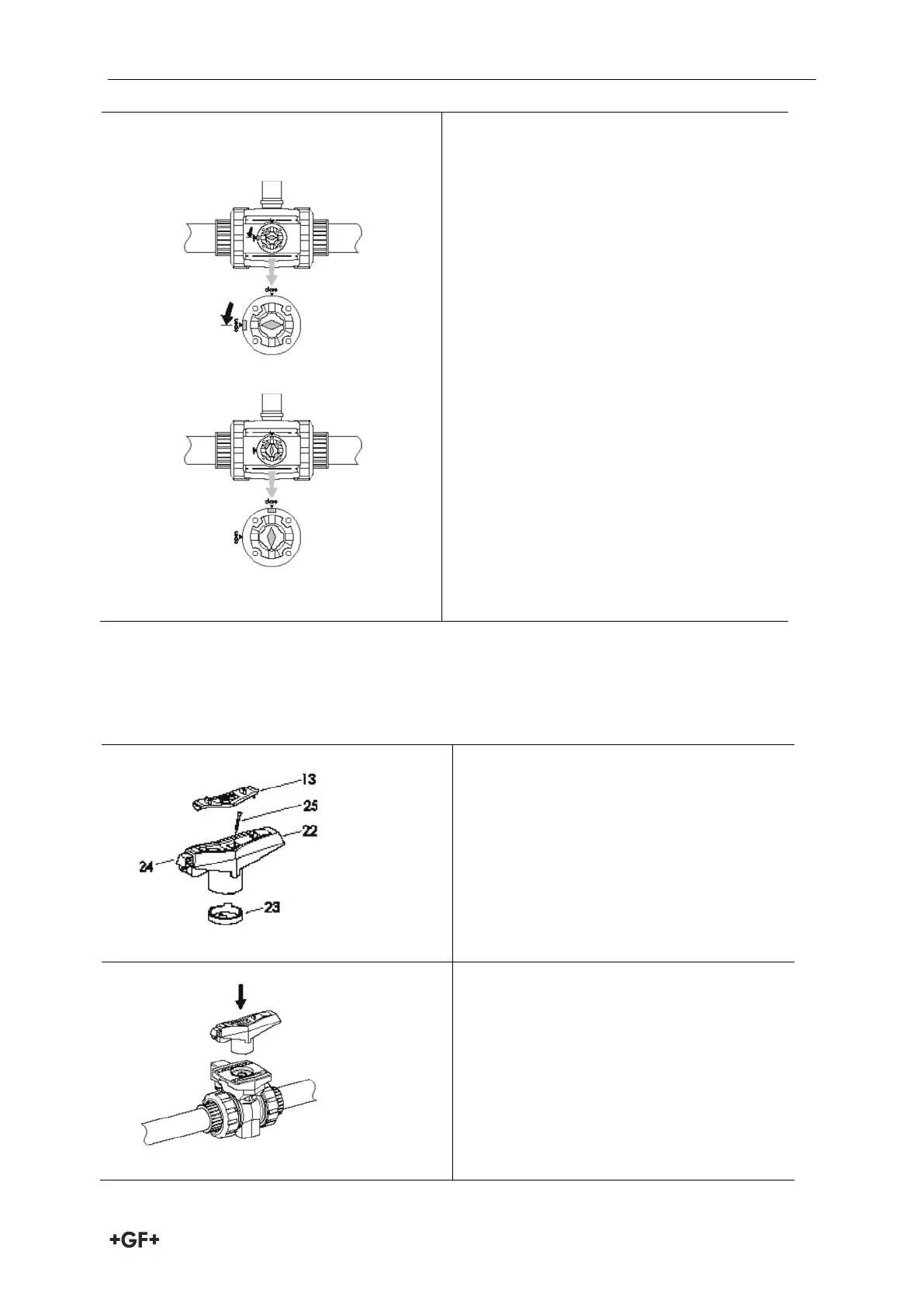

Put the switching cam (3a) in the respective
position.
For open ball valve
For closed ball valve
The MF module is now ready for the
assembly with the MF handle.
Mounting the multifunctional handle
To mount the MF handle, follow these steps:
Remove the spacer ring (23).
Place the MF handle on the stem.
(Example: open ball position)
