Instruction manual Technical Features of the Multifunctional Module
11

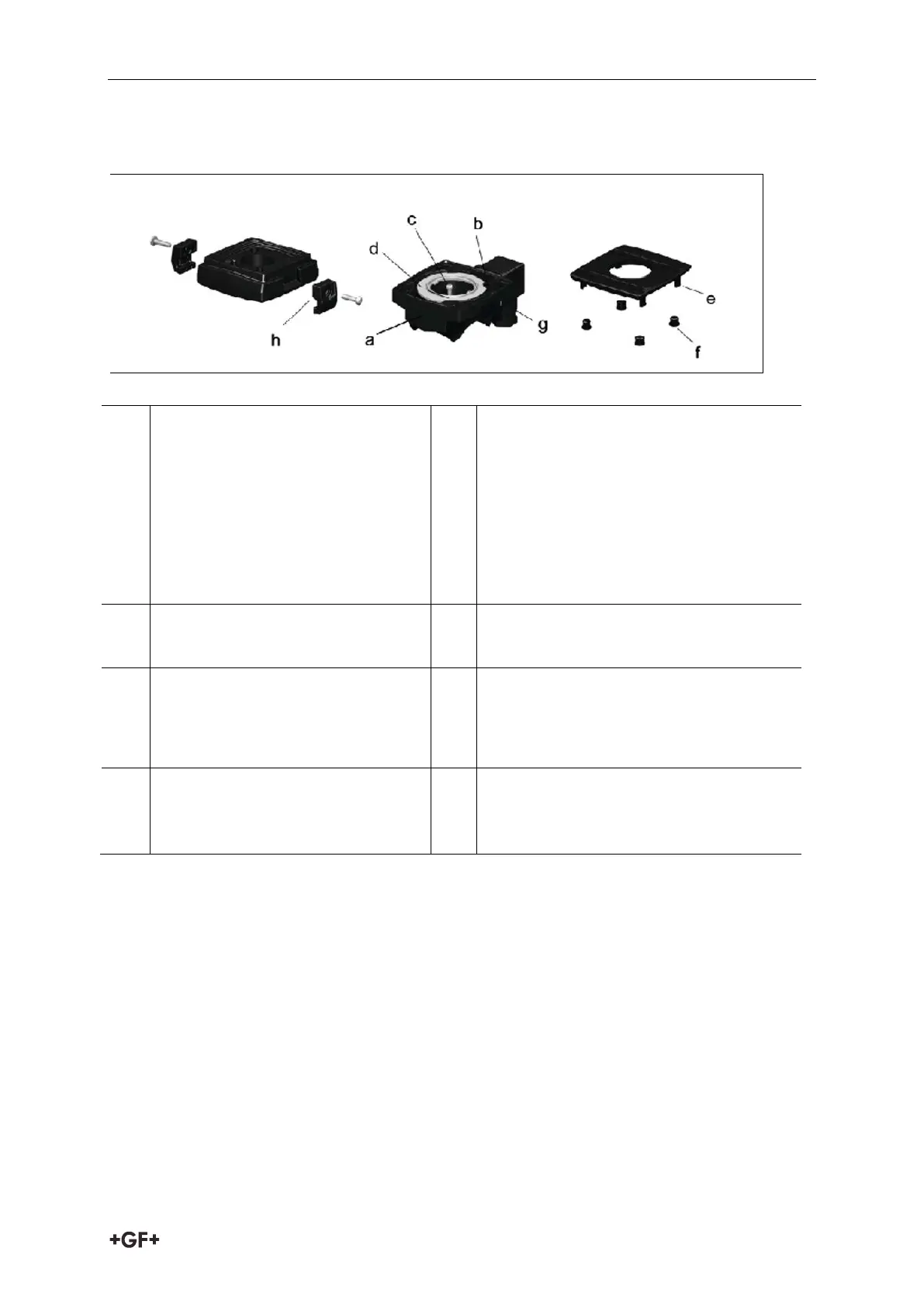

4 Technical Features of the Multifunctional Module
a
The housing is made completely of
polypropylene. It is screwed
directly on the valve. The inner
contour of the multifunctional
module is asymmetrical and fits
unmistakably on the respective
outer contour of the ball valve
housing.
e
Snap-on cover.
b
Selection of 5 potted limit
switches.
f
Plugs as an additional safety device to
prevent undesired opening of the cover.
c
The multifunctional module is
screwed directly on the ball valve
housing with 4 stainless steel Torx
screws.
g
Connector plug 3P+E for fast and easy
cable mounting – protection rating: IP65
d
The switching disc made of ABS
warrants the precise switching
point.
h
Clamps to fasten the adapter plate on
the multifunctional module with
stainless steel Torx screws.
Functions:
 Interface for mounting actuations
 Feedback unit in combination with actuators
 Also for manual valves – with multifunctional handle
 Mechanical interface for back wall panel mounting
Adapter Plate for Actuators
Multifunctional Module
Cover
