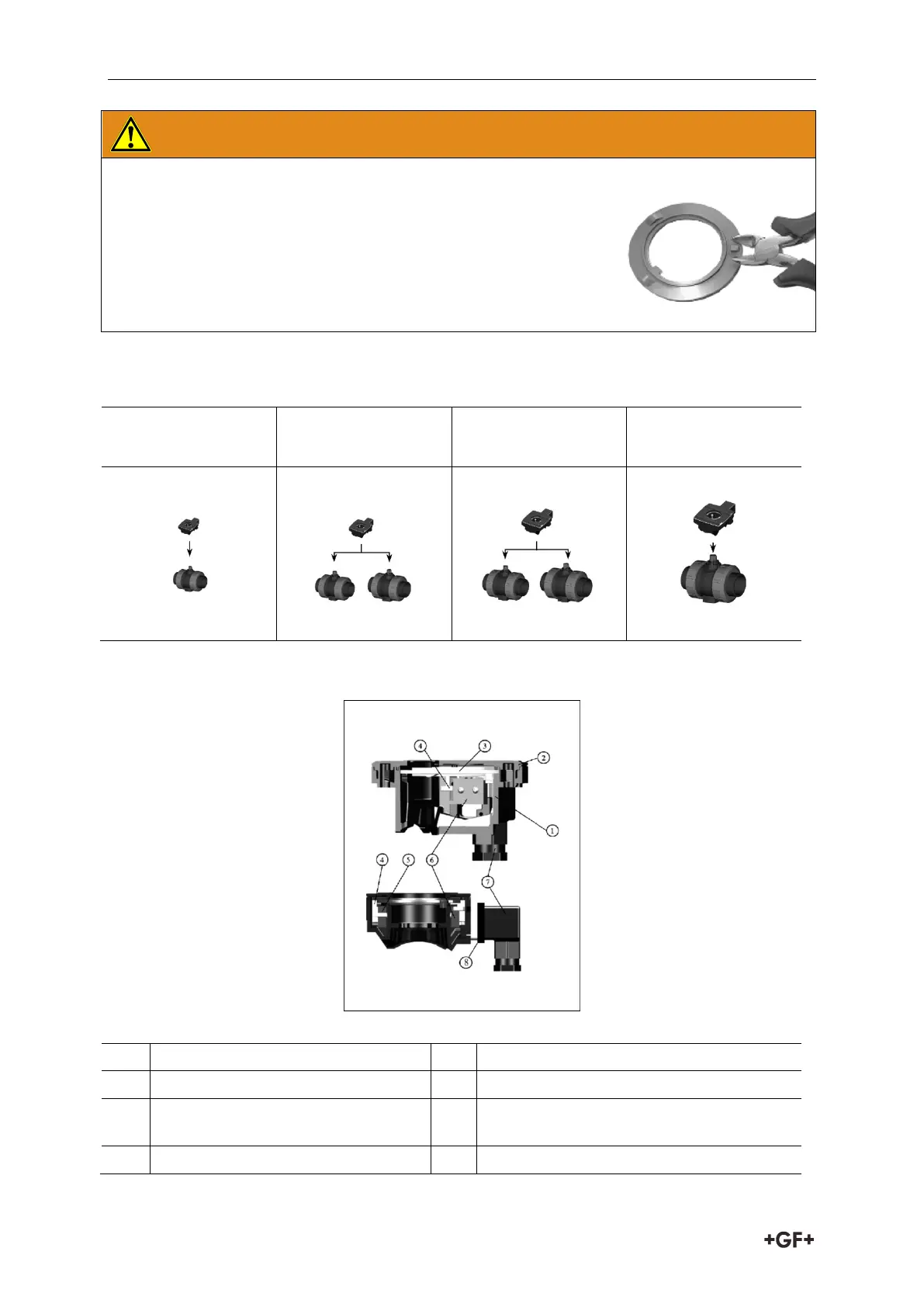

Technical Features of the Multifunctional Module Instruction manual
12
WARNING
Cam on the switching disc!
The cam must be cut off, if the multifunctional module
with limit switches is used with an electrical actuator
EA11/EA21.
Configuration of Multifunctional Modules on Ball Valve 546
Design of the Multifunctional Module including Switches
1 Housing 5 Micro Switch «OPEN»
2 Cover 6 Micro Switch «CLOSED»
3 Switching disc 7
Connector plug 3P + E per DIN EN
¢7530¢-803 (formerly DIN 43650)
4 Switch holder 8 Seal
Dimension
DN ¢5
Dimension
DN 20 and DN 25
Dimension
DN 32 and DN 40
Dimension
DN 50
