GF 546 - General Technical Data and Wiring

Instruction manual Technical Features of the Multifunctional Module
13
General Technical Data of the Multifunctional Module
Protection rating with DIN plug (7): IP 65
Protection rating with cable gland: IP 67
Ambient temperature: –¢0°C to +50°C
A
closed
D
blue (short cable)
B
open
E
blue (long cable)
C
black
Switch type Capacity Code no.
Micro Switch silver
nickel (Ag Ni)
250 V ~ 6 A*)
167 482 626
167 482 627
167 482 628
167 482 629
DN 10–¢5
DN 20–25
DN 32–40
DN 50
Micro Switch with gold
contact (Au)
4 – 30 V=
1 – ¢00 mA
167 482 635
167 482 636
167 482 637
167 482 638
DN 10–¢5
DN 20–25
DN 32–40
DN 50
*ohm resistive load
for inductive load, provide for protective circuit!

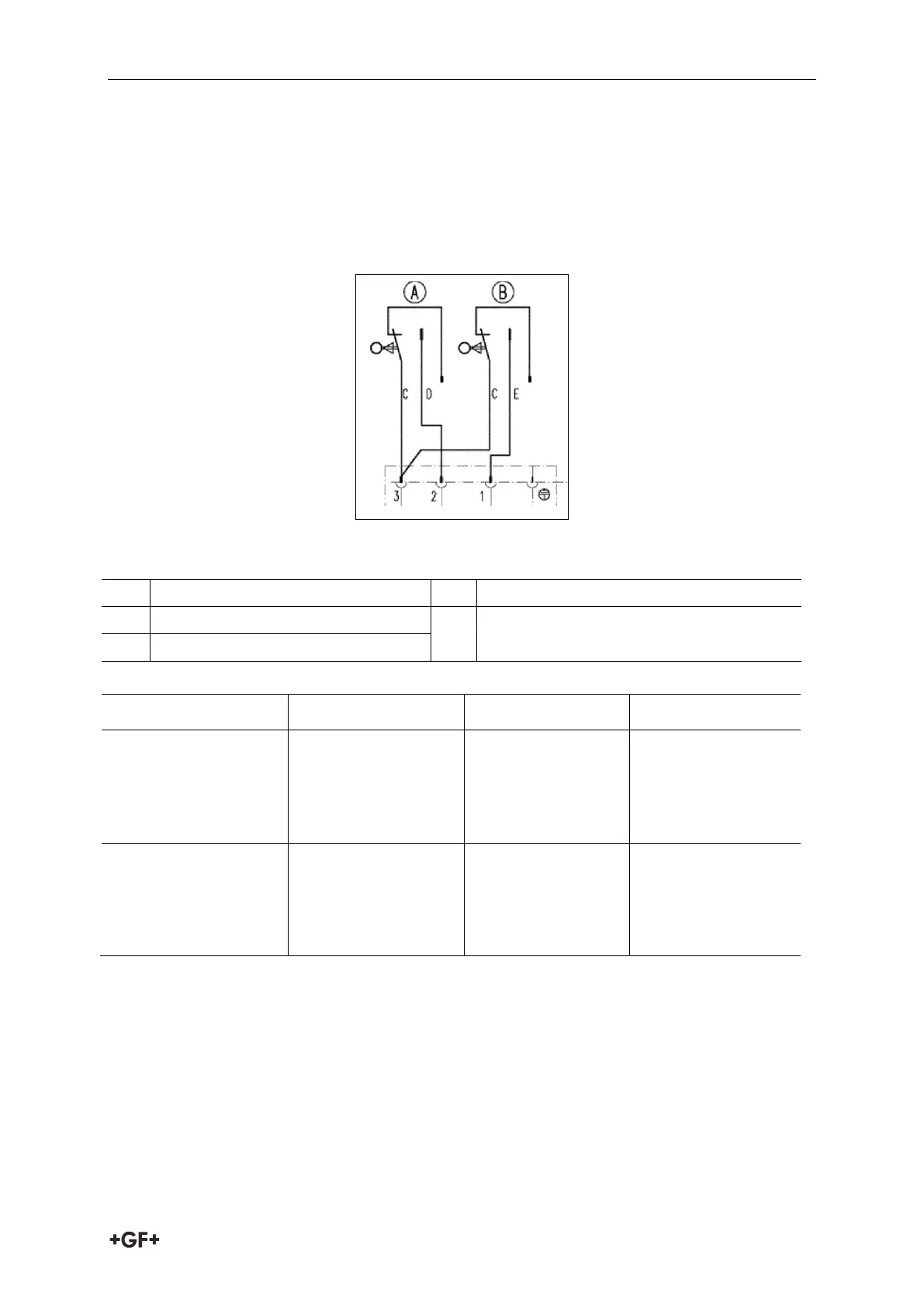

Wiring diagram
