GF 546 - Page 32

Technical Features of the Multifunctional Module Instruction manual
14
A
closed
D
black
B
open
E
black
C
blue
F
brown
Switch type Capacity Code no.
Inductive switch NPN
5 – 30 V
0,1 A
167 482 653
167 482 654
167 482 655
167 482 656
DN 10–¢5
DN 20–25
DN 32–40
DN 50
Inductive switch PNP
5 – 30 V=
0,1 A
167 482 662
167 482 663
167 482 664
167 482 665
DN 10–¢5
DN 20–25
DN 32–40
DN 50

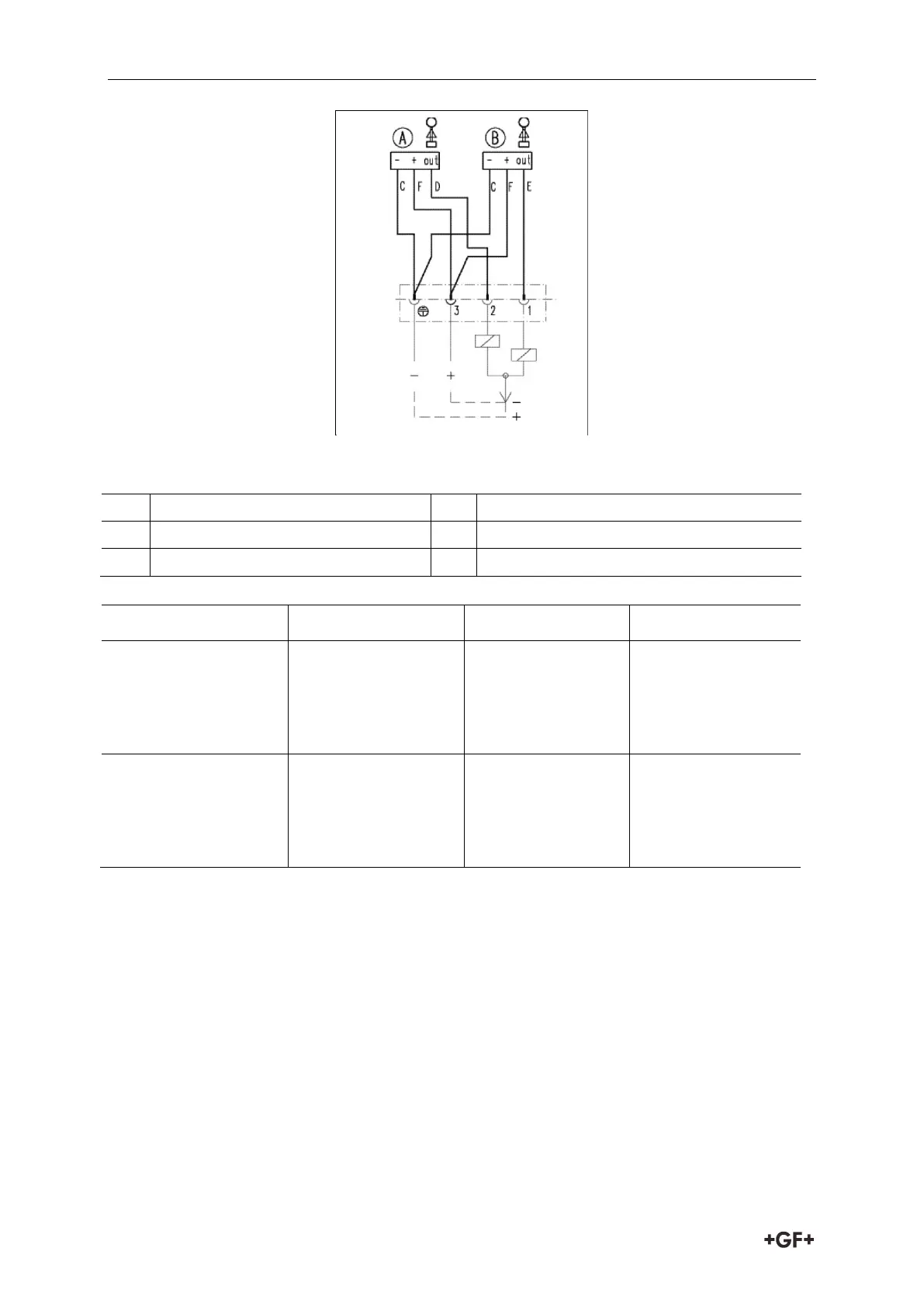

Wiring diagram
NPN
PNP
