Instruction Manual Design and function
25

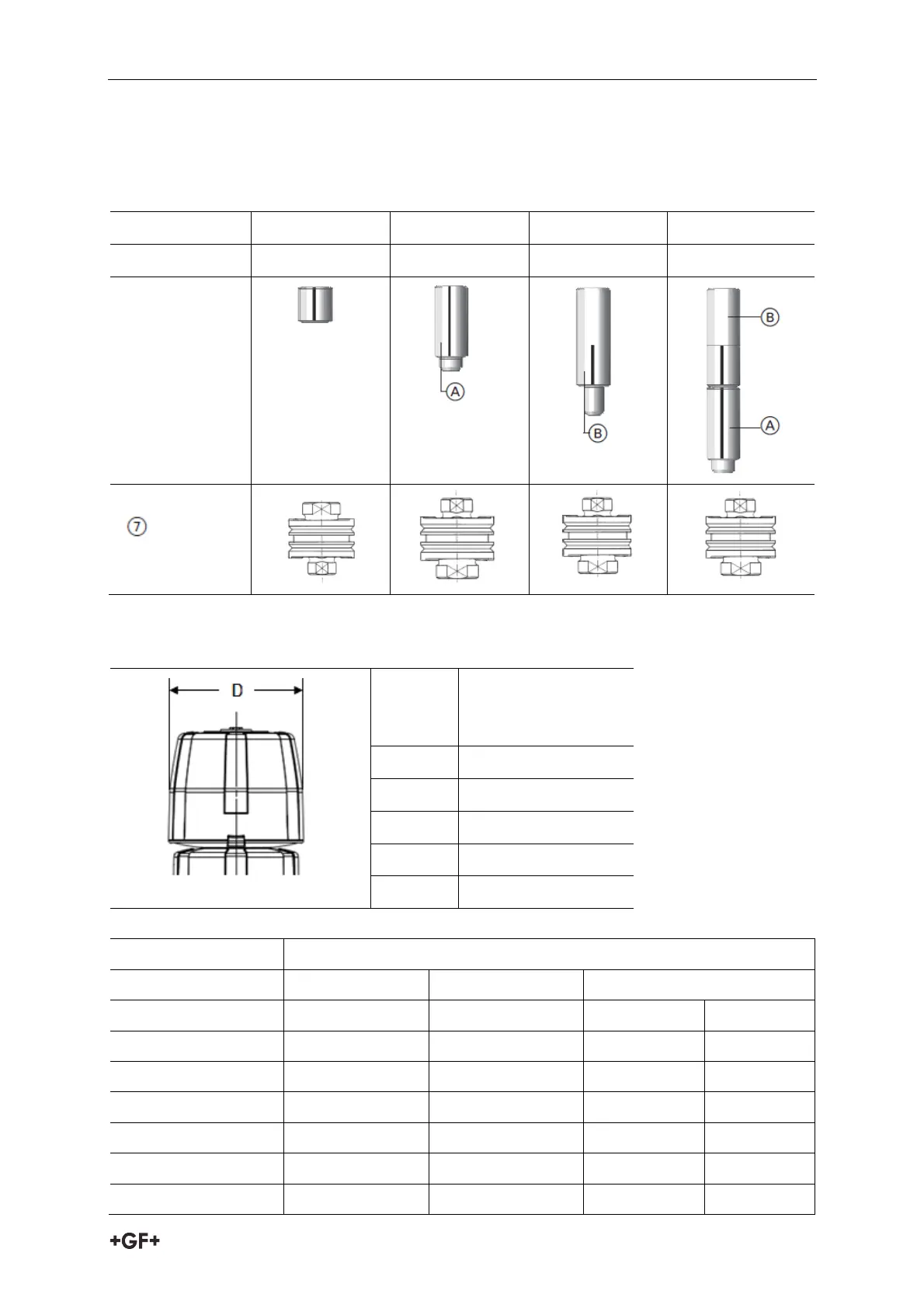

3.2 Function with DIASTAR
3.2.1 Allocation of adapter to actuator sizes
d
12 mm 16 mm 16 mm 16 mm
Actuator size
1 / 2 3 4 5
Required
adapter
Brass base
3.2.2 Actuator sizes DIASTAR DN 15–50
Size
D
(PP-GF)
mm
1 68
2 96
3 120
4 150
5 180
Dimension Size
Type DIASTAR Ten DIASTAR TenPlus DIASTAR Sixteen
Function FC/DA/FO FC/DA/FO FC DA/FO
DN 15 1 2 2 1
DN 20 2 2 2 2
DN 25 2 3 3 2
DN 32 3 4 4 3
DN 40 4 5 5 4
DN 50 4 5 5 4
