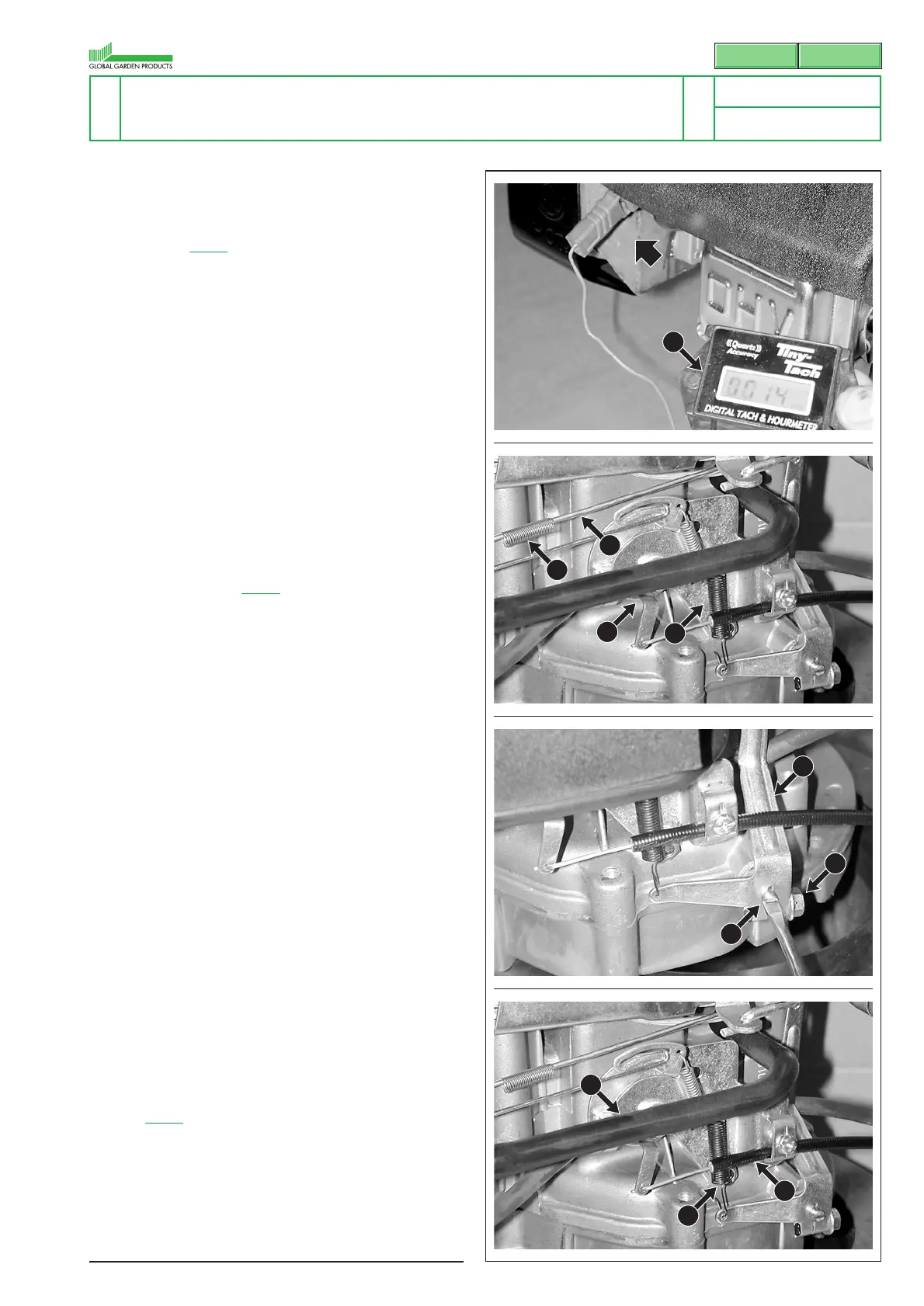

B) Adjusting maximum speed
11 Check that the throttle cable is adjusted cor-
rectly [
6.5.A].
12 Let the engine heat up for a few minutes then
set the throttle control to “FAST”. Check the
rotation speed on the speed indicator (21).
NOTE
The engine’s maximum speed must be between
2700 and 2900 rpm; if you do not read this
value, proceed as follows
13 Check:
– that the spring (22) is intact;
– that the tie-rod (23) and relative spring (24) are
intact and undamaged;
– that the moving levers (24) are not bent or
deformed and replace the entire support if
necessary [
6.5.C].
14 If the above checks do not show any faults, the
phasing of the governor’s control lever (26) with
respect to the counterweight device must be
checked:
– stop the engine and move the accelerator
control to “FAST”;
– slacken off the control lever (26) locknut (27);
– without changing the lever (26) position deter-
mined by the spring (22) and tie-rod (23), use
a screwdriver to turn pin (28) clockwise to the
end of its stroke and then lock the nut (27).
C) Replacing the lever system support
21 Remove the intake manifold and the carburettor
[
6.4.A
].
22 Disconnect the accelerator cable (31) and
remove the breather pipe (32) and the spring
(33).
6.5.1
GOVERNOR SYSTEM OF THE CARBURETTOR
2 / 3
SERVICE MANUAL
page
from
2007 to ••••
21
22
23
24
25
27
26
28
31
32
33
