SV200 R200
4/2007© by GLOBAL GARDEN PRODUCTS
6.7 TURNING OFF AND STOPPING THE ENGINE
GENERAL INFORMATION
The engine is turned off and stopped by releasing a
lever on the lawnmower. The cable acts on a lever
which simultaneously activates a microswitch that
sends the coil to earth as well as a brake which acts
on the flywheel.
The brake must be able to stop the engine within 3
seconds after it is turned off.
The system for turning off and stopping the engine
can malfunction in the following ways:
• the engine does not start:
= brake cable broken or disconnected [
6.7.A];
= faulty switch [
6.7.B];
= earth cable has deteriorated.
• the engine does not turn off:
= brake cable bent or jammed [
6.7.A
];
= faulty switch or disconnection [
6.7.B].
• the engine does not stop within 3 seconds after
it is turned off:
= clutch lining has come away [
6.7.C].
If the microswitch malfunctions or if the brake lining
has come away, replace the entire assembly which
is mounted on a supporting bracket.
For access to the system for turning off and stop-
ping the engine, remove the upper conveyor.
SERVICING PROCEDURES
N.B.
- The following must be removed and subse-
quently reassembled to perform any intervention on
the engine switch-off and stopping group:
– the starting system [
6.2.A];
– the tank [
6.1.A];
– the conveyor.

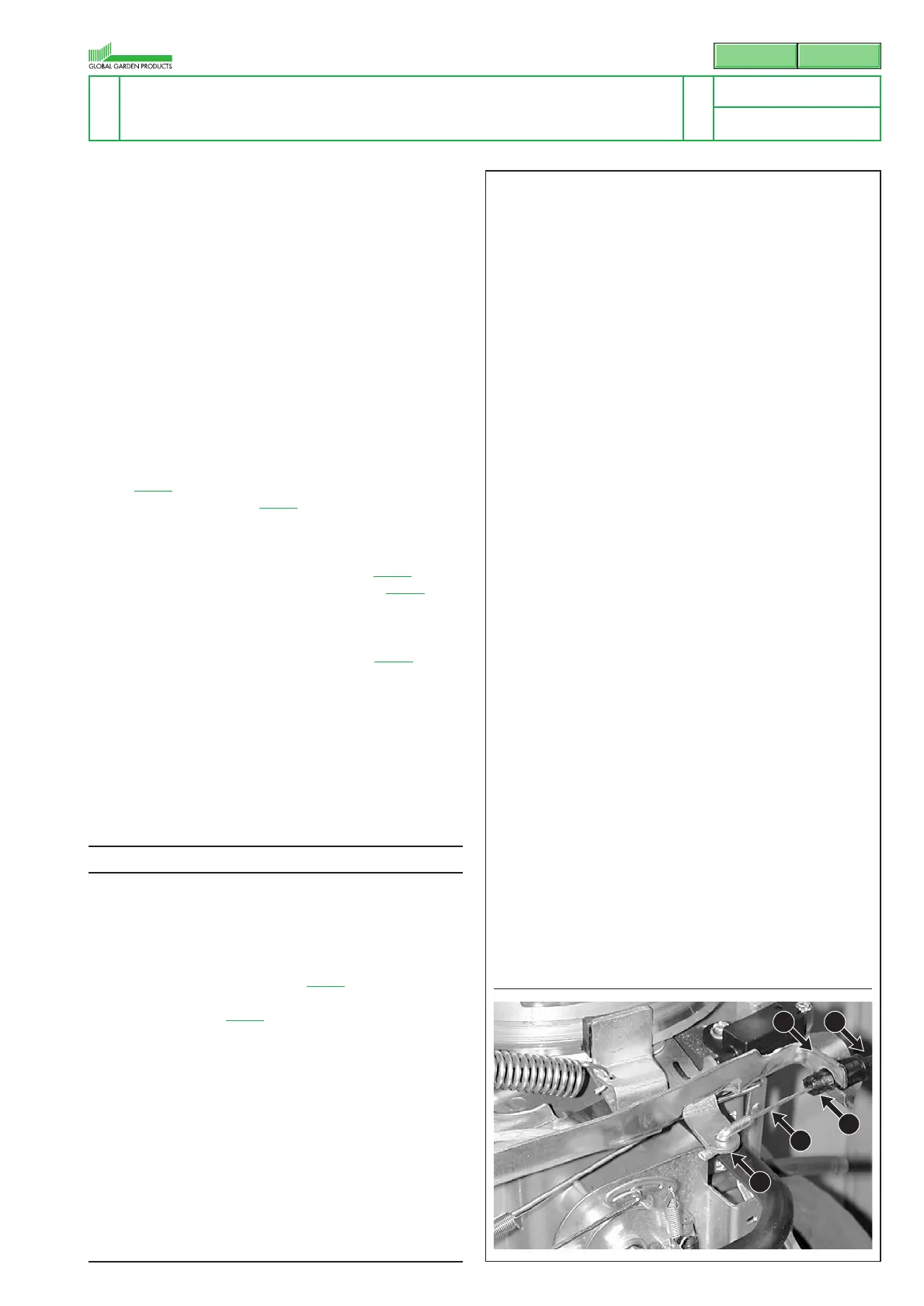

A) Checking the control cable
1 Check that the sheath (1) is not bent, that the
wire (2) is securely connected to both the lawn-
mower lever and the lever (3) on the engine and
that the terminal (4) is correctly fastened to the
support (5).
6.7.1
TURNING OFF AND STOPPING THE ENGINE
1 / 3
SERVICE MANUAL
page
from
2007 to ••••
1
2
3
4
5
