SV200 R200
4/2007© by GLOBAL GARDEN PRODUCTS
6.10 ENGINE BLOCK – Overhauling internal
parts
GENERAL INFORMATION
All operations for dismantling and replacing internal
engine components require the engine to be
removed from the lawnmower.
SERVICING PROCEDURES

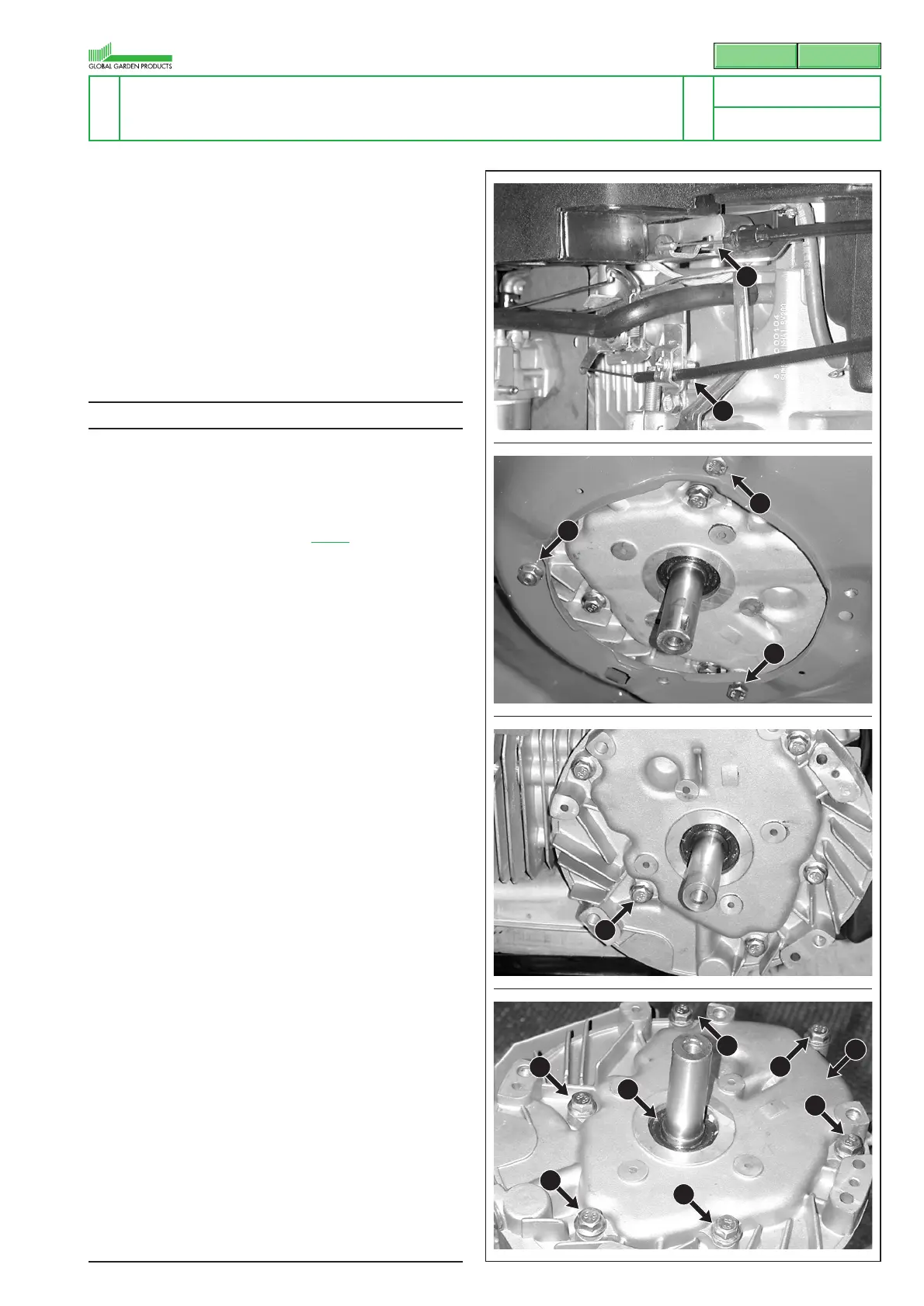

A) Removing the engine and opening the cover
1Empty the tank of fuel [ 6.1.A].
2 Disconnect the throttle cable (1) and the engine
brake cable (2).
3 Dismount the cutting assembly and undo the (3)
screws which are accessible from the bottom of
the lawnmower.
4 Hold the engine in points with a firm grip,
remembering that it weighs approx.13 kg.
5 Place the engine on a stand able to ensure its
stability, unscrew the oil drain plug (4) and col-
lect all the oil contained in the sump.
6 Overturn the engine so that the protuberance of
the shaft is at the top and place the engine on a
stand able to ensure the required stability for
performing all the following operations.
7Remove the sump (5) fixed by six screws (6).
8 On assembly, follow the steps described in
reverse and:
– always replace the gasket (7) between cover
and sump;
6.10.1
ENGINE BLOCK – Overhauling internal parts
1 / 7
SERVICE MANUAL
page
from
2007 to ••••
4
6
6
6
6
6
6
9
5
2
1
3
3
3
