Ghost Controls TDS2 - Pull-to-Open Installation Guide; Operator Arm Installation

18
PULL-TO-OPEN
©Ghost Controls
®
2021

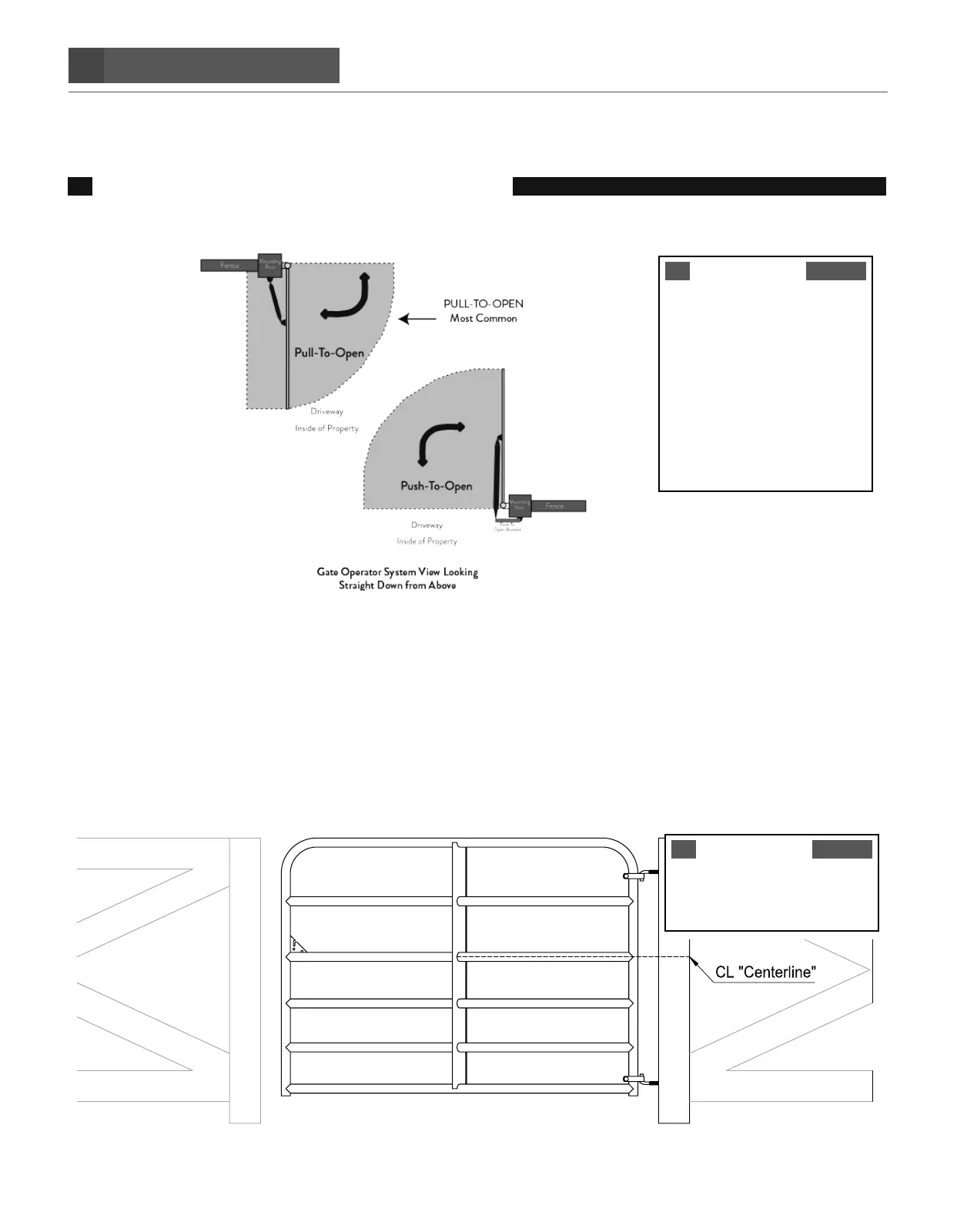

PULL-TO-OPEN: GATE SWINGS TO OPEN INSIDE PROPERTY
The dimensions and step-by-step instructions that follow are for mounting the GHOST CONTROLS
®
Gate Operator in
a PULLTOOPEN installation system to a standard metal tubular-style agricultural gate that swings into property.
FOR PUSHTOOPEN APPLICATIONS, PLEASE GO TO PUSHTOOPEN APPLICATION ON PAGE 39.
STEP 1. Establish and mark the horizontal center lines of the gate and the post for proper
alignment of gate brackets.
NOTE
Wheels cannot be used with
any Ghost Controls
®
gate
opener system!
For gates weighing over 200
lbs. ball bearing hinges are
recommended.
Operator is not for use on
solid panel privacy gates.
NOTE
This center point will be used
for mounting the post bracket
in STEP 4.
PULL TO OPEN INSTALLATION
OPERATOR ARM INSTALLATION
