55
PUSH-TO-OPEN
©Ghost Controls
®
2021
PROGRAMMING THE OPEN LIMIT: PUSH-TO-OPEN
The OPEN limit is when the operator is extended and the gate is in the closed position.
IMPORTANT
ONLY THE OPERATOR ARMS’ EXTENDED LIMIT IS ADJUSTABLE AND CAN BE SET WITH THE CONTROL
BOARD. THE ARMS’ RETRACTED POSITION IS FIXED AND IS NOT ELECTRONICALLY ADJUSTABLE.
THE CLOSED POSITION IS SET BY HARDWARE MOUNTING ONLY. Please refer to the hardware installation to
make sure the retracted position is properly set/installed.
Installation Type Retracted Position Extended Position
Push-To-Open Gate at the fully CLOSED position (not
electronically adjustable)
Gate at the OPEN position (electroni-
cally adjustable)
TURN THE CONTROL BOX ON

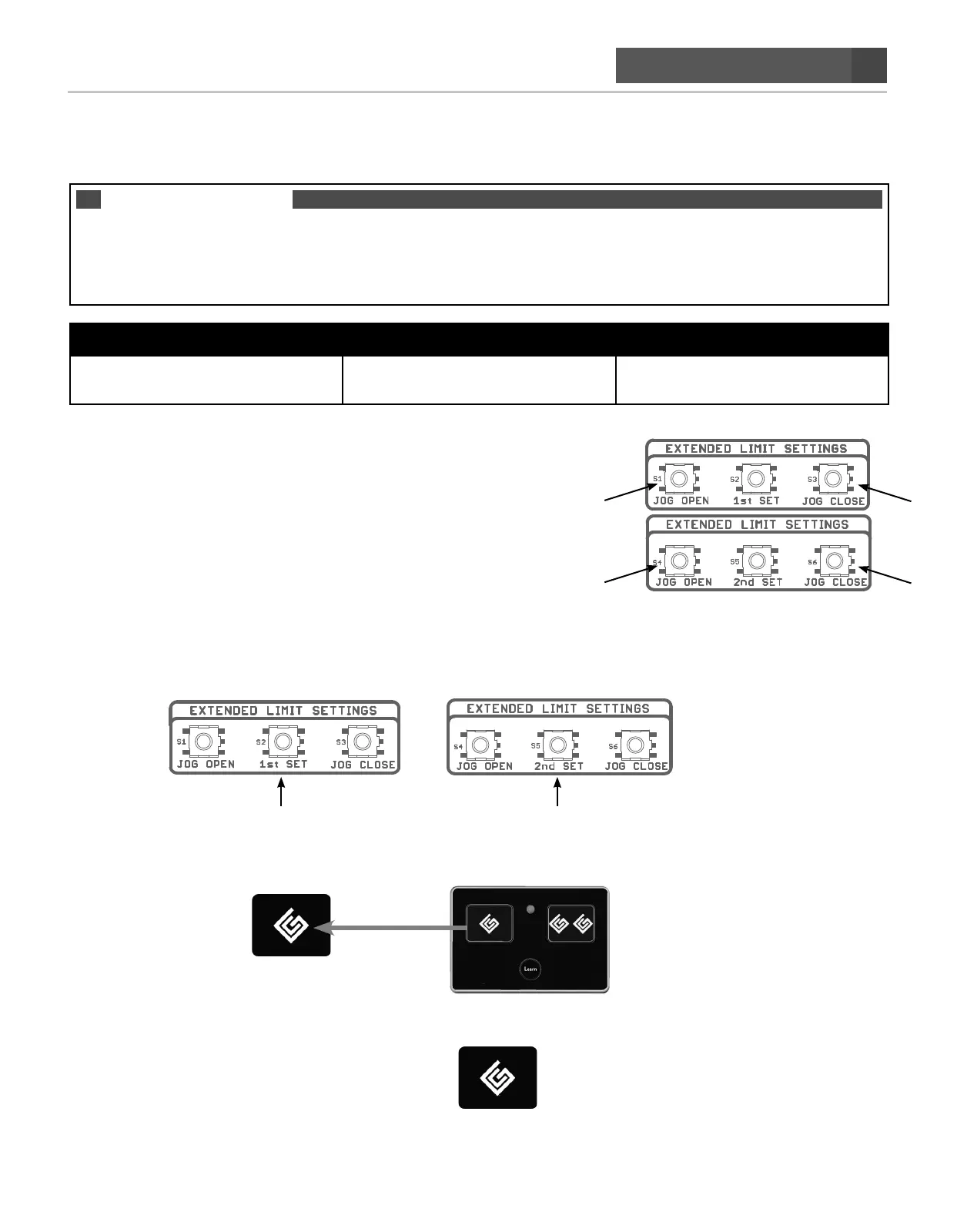

STEP 18. Setting the open limit.
A. Press and hold the JOG OPEN buttons on the gate system control
board until the gate reaches the desired OPEN position. The gate can
move only if pressure is maintained. Releasing the JOG button will
stop the gate immediately. Once the 1st set is programmed
then repeat for the 2nd gate with the 2nd set JOG CLOSE button.
B. Both JOG OPEN or JOG CLOSE buttons are needed to ‘fine-tune’ your
desired OPEN position.
STEP 19. Press and hold the 1st set limit button on the control panel until it beeps, then release.
Then Press and hold the 2nd set limit button until it beeps, then release.
STEP 20. Press the transmitter button to activate the gate and let the gate close fully. you should
hear a single beep.
When the gate reaches its CLOSED position, the control board will sound a single beep, confirming the CLOSED limit has been set.
A. Confirm the newly programmed OPEN limit by pressing the remote transmitter button to activate the gate
and confirm the closed position has been set correctly. This limit is stored and remembered even when all of
the power sources are removed.
B. Repeat STEPS 18-20 if needed to change your desired OPEN position.
C. Test your system with the remote transmitter to make sure it opens and closes without errors.
