Hardware Installation - 34 -

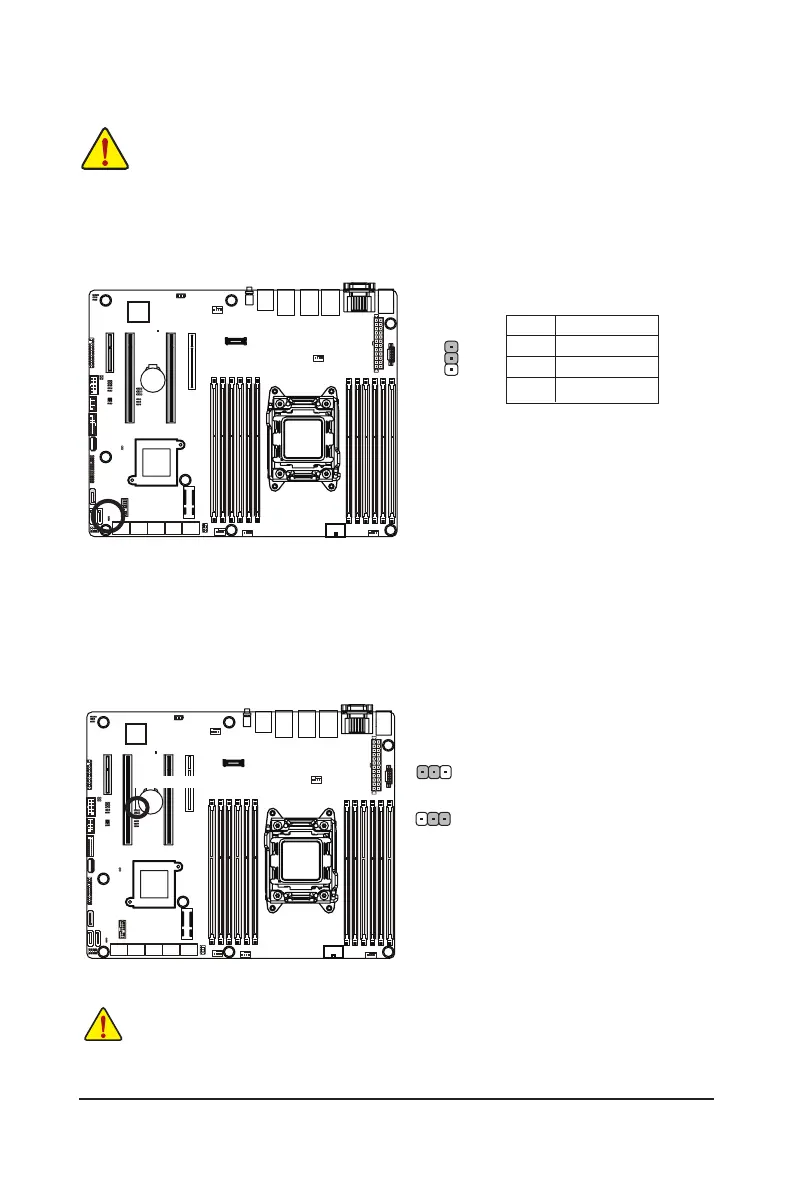

1) SATA_DOM (SATA port 4 DOM Jumper)
CAUTION!
• If the SATA DOM power is supplied by the motherboard, set the jumper to pin 1-2.
• If the SATA DOM power is supplied by external power, set the jumper to pin 2-3.
• If a SATA type hard drive is connected to the motherboard, please ensure the jumper is closed
and set to 2-3 pins (Default setting), in order to reduce any risk of hard disk damage.
Pleaserefertothepindenitiontableinthefollowing.
PinNo. Denition
1 P5V
2 SATA4 Pin7
3 GND
1
1
1
2) CLR_CMOS (Clearing CMOS Jumper)
Usethis jumper toclearthe CMOS values(e.g. date informationand BIOS congurations)andreset
the CMOS values to factory defaults. To clear the CMOS values, place a jumper cap on the two pins to
temporarily short the two pins or use a metal object like a screwdriver to touch the two pins for a few
seconds.
1-2 Close: Normal operation (Default setting)
2-3 Close: Clear CMOS data.
• Always turn off your computer and unplug the power cord from the power outlet before clearing the CMOS
values.
• After clearing the CMOS values and before turning on your computer, be sure to remove the jumper cap from
the jumper. Failure to do so may cause damage to the motherboard.
CLR_CMOS
