GIGA-BYTE TECHNOLOGY X570S AORUS MASTER User Manual

- 15 -
Hardware Installation

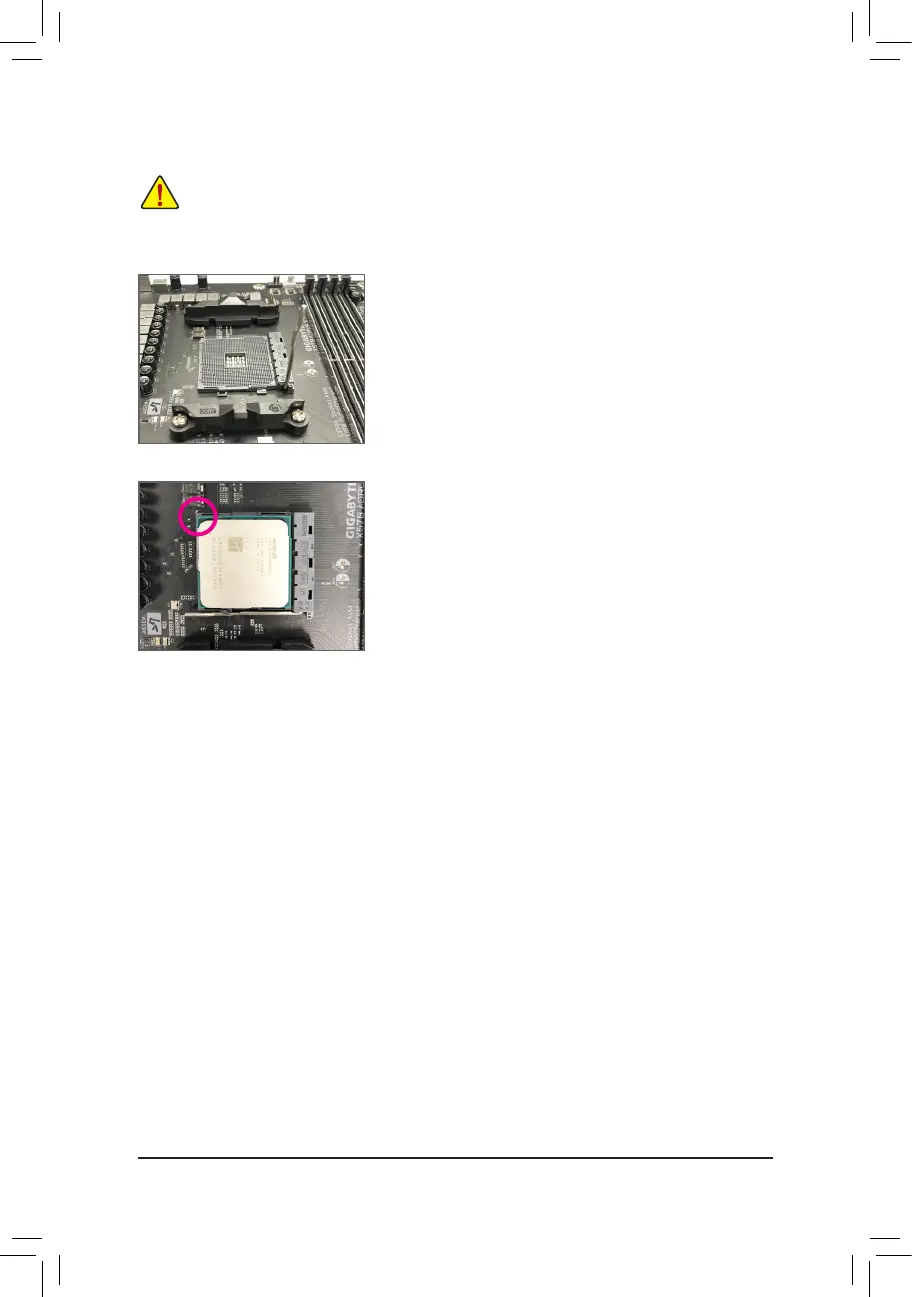

B. Follow the steps below to correctly install the CPU into the motherboard CPU socket.
• Before installing the CPU, make sure to turn off the computer and unplug the power cord from the
power outlet to prevent damage to the CPU.
• DonotforcetheCPUintotheCPUsocket.TheCPUcannottiniforientedincorrectly.Adjustthe
CPU orientation if this occurs.
Step 1:
Completely lift up the CPU socket locking lever.
Step 2:
Align the CPU pin one (small triangle marking) with the triangle mark
on the CPU socket and gently insert the CPU into the socket. Make
surethattheCPUpinstperfectlyintotheirholes.
OncetheCPUispositionedintoitssocket,placeonengerdown
on the middle of the CPU, lowering the locking lever and latching it
into the fully locked position.

GIGA-BYTE TECHNOLOGY X570S AORUS MASTER Specifications

General

Brand	GIGA-BYTE TECHNOLOGY
Model	X570S AORUS MASTER
Category	Motherboard
Language	English
