- 27 -
Hardware Installation

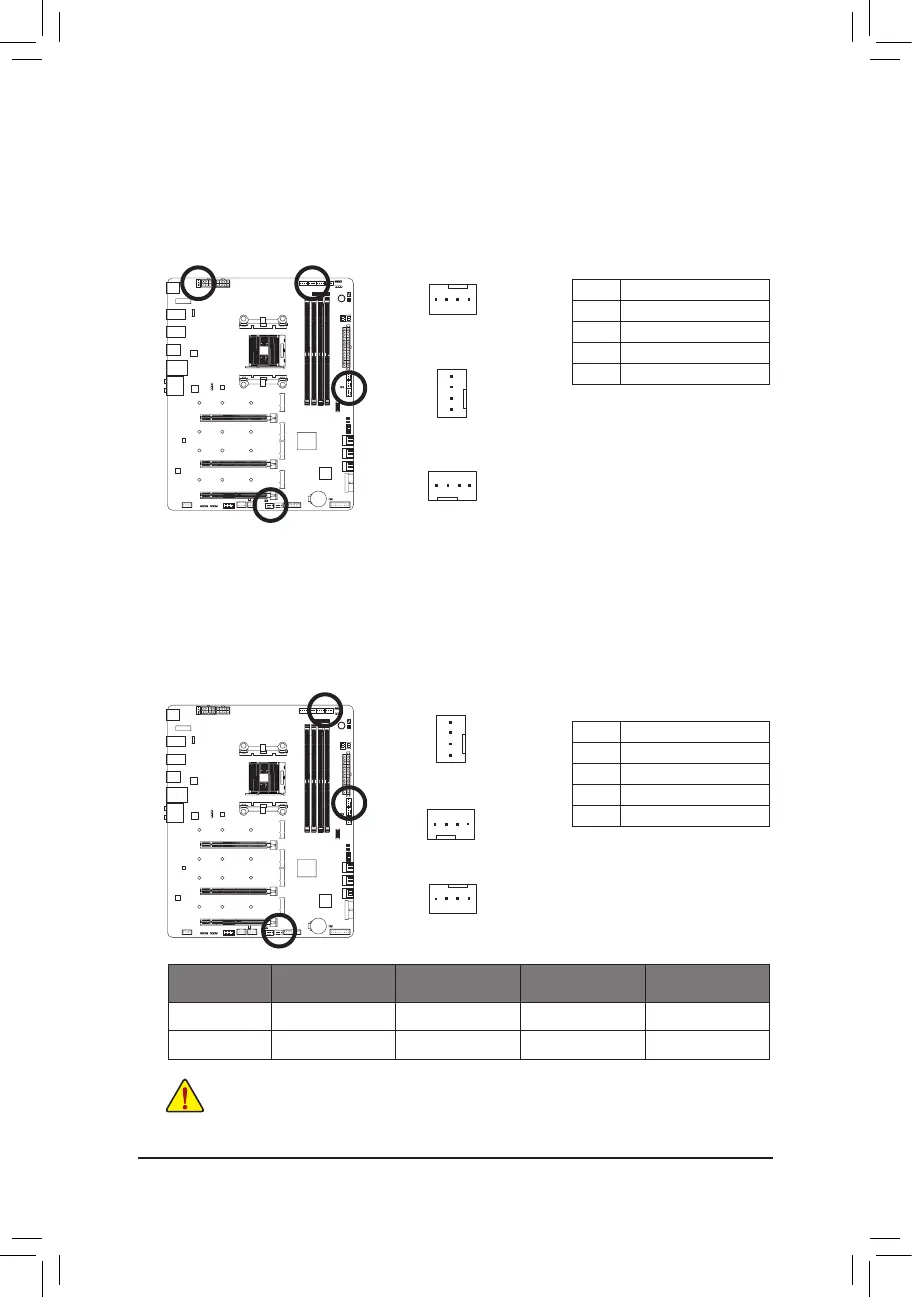

3/4) CPU_FAN/SYS_FAN1/2/3/4 (Fan Headers)
All fan headers on this motherboard are 4-pin. Most fan headers possess a foolproof insertion design.
When connecting a fan cable, be sure to connect it in the correct orientation (the black connector wire
is the ground wire). The motherboard supports CPU fan speed control, which requires the use of a CPU
fan with fan speed control design. For optimum heat dissipation, it is recommended that a system fan
be installed inside the chassis.
Pin No. Denition
1 GND
2 Voltage Speed Control
3 Sense
4 PWM Speed Control
SYS_FAN1/SYS_FAN2/SYS_FAN4
DEBUG
PORT
G.QBOFM
1
DEBUG
PORT
G.QBOFM
1
CPU_FAN
5) SYS_FAN5_PUMP/SYS_FAN6_PUMP/
SYS_FAN7_PUMP/SYS_FAN8_PUMP (System Fan/Water Cooling Pump Headers)
Thefan/pumpheadersare4-pin.Mostfanheaderspossessafoolproofinsertiondesign.Whenconnecting
a fan cable, be sure to connect it in the correct orientation (the black connector wire is the ground wire). The
speed control function requires the use of a fan with fan speed control design. For optimum heat dissipation,
it is recommended that a system fan be installed inside the chassis. The header also provides speed
control for a water cooling pump, refer to Chapter 2, "BIOS Setup," "Smart Fan 6," for more information.
Pin No. Denition
1 GND
2 Voltage Speed Control
3 Sense
4 PWM Speed Control
DEBUG
PORT
G.QBOFM
1
• Be sure to connect fan cables to the fan headers to prevent your CPU and system from
overheating. Overheating may result in damage to the CPU or the system may hang.
• Thesefanheadersarenotcongurationjumperblocks.Donotplaceajumpercaponthe
headers.
DEBUG PORT
G.QBOFM
1
SYS_FAN6_PUMP
SYS_FAN5_PUMP
SYS_FAN3
DEBUG PORT
G.QBOFM
1
Connector CPU_FAN SYS_FAN1~4
SYS_FAN5/6/7/8_
PUMP
CPU_OPT
Maximum Current 2A 2A 2A 2A
Maximum Power 24W 24W 24W 24W
DEBUG
PORT
G.QBOFM
1
SYS_FAN7_PUMP/SYS_FAN8_PUMP
