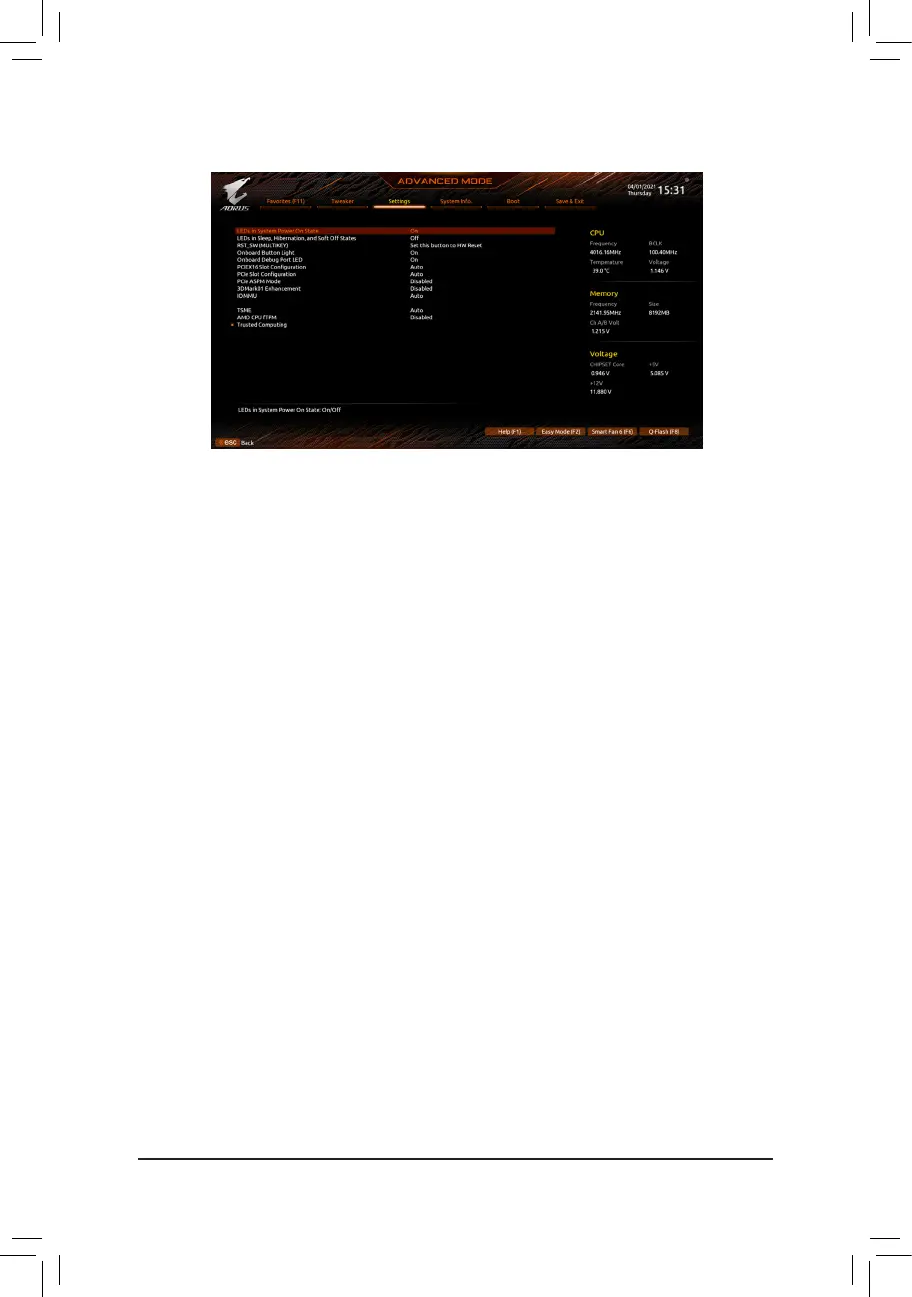

Miscellaneous
& LEDs in System Power On State
Allows you to enable or disable motherboard LED lighting when the system is on.
Off Disables the selected lighting mode when the system is on.
On Enables the selected lighting mode when the system is on. (Default)
& LEDs in Sleep, Hibernation, and Soft Off States
AllowsyoutosetthelightingmodeofthemotherboardLEDsinsystemS3/S4/S5state.
ThisitemiscongurablewhenLEDs in System Power On State is set to On.
Off DisablestheselectedlightingmodewhenthesystementersS3/S4/S5state.(Default)
On EnablestheselectedlightingmodewhenthesystementersS3/S4/S5state.
& RST_SW (MULTIKEY) (Functionality of the RST_SW Button)
Set this button to HW Reset Use the button to reset your system. (Default)
SetthisbuttontoSwitchLEDOn/Off Usethebuttontoturnon/offthemotherboardLEDs.
Set this button to Enter BIOS Setup Use the button to enter the BIOS Setup.
Set this button to Boot on Safe Mode Use the button to boot the system in safe mode.
& Onboard Button Light
Allows you to enable or disable the LED lighting of the Clear CMOS button and power button when the
system is on. (Default: On)
& Onboard Debug Port LED
Allows you to enable or disable the LED lighting of the motherboard debug LEDs when the system is on.
(Default: On)
& PCIEX16SlotConguration
Allows you to set the operation mode of the PCIEX16 slot to Gen 1, Gen 2, Gen 3, or Gen 4
(Note)
. Auto
letstheBIOSautomaticallycongurethissetting.(Default:Auto)
& PCIeSlotConguration
Allows you to set the operation mode of the PCI Express slots and M.2 connectors to Gen 1, Gen 2, Gen 3,
or Gen 4
(Note)
.Actualoperationmodeissubjecttothehardwarespecicationofeachslot.Auto lets the BIOS
automaticallycongurethissetting.(Default:Auto)
& PCIe ASPM Mode
AllowsyoutoconguretheASPMmodeforthedeviceconnectedtoCPU/Chipset'sPCIExpressbus.
(Default: Disabled)
(Note) This item is present only when you install a CPU that supports this feature.
