Gigabyte 7002 Series User Manual

BIOS Setup - 112 -

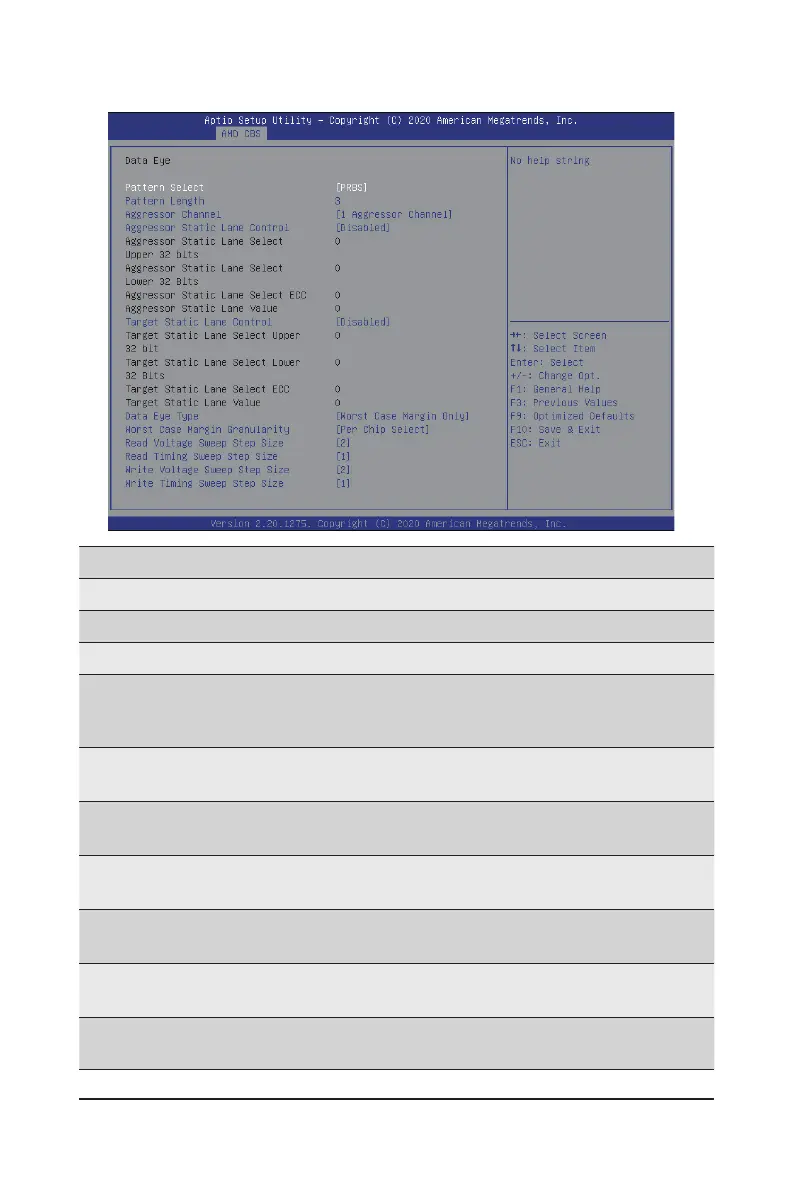

5-3-3-4-1 Data Eye
Parameter
Description
Data Eye
Pattern Select
Options available: PRBS, SSO, Both. Default setting is PRBS.
Pattern Length
Determines the pattern length. The possible options are N=3....12.
Aggressor Channel
This item helps read the aggressors channels.
Options available: Disabled, 1 Aggressor Channel, 3 Aggressor Channels,
7 Aggressor Channels. Default setting is 1 Aggressor Channel.
Aggressor Static Lane
Control
Enable/Disable the Aggressor Static Lane Control function.
Options available: Enabled/Disabled. Default setting is Disabled.
Aggressor Static Lane
Select Upper 32 bits
This item is congurable when Aggressor Static Lane Control is set to
Enabled.
Aggressor Static Lane
Select Lower 32 bits
This item is congurable when Aggressor Static Lane Control is set to
Enabled.
Aggressor Static Lane
Select ECC
This item is congurable when Aggressor Static Lane Control is set to
Enabled.
Aggressor Static Lane
Value
This item is congurable when Aggressor Static Lane Control is set to
Enabled.
Target Static Lane Control
Enable/Disable the Target Static Lane Control function.
Options available: Enabled/Disabled. Default setting is Disabled.
