System Hardware Installation
- 38 -
3-8
Replacing the F
AN Assemblly

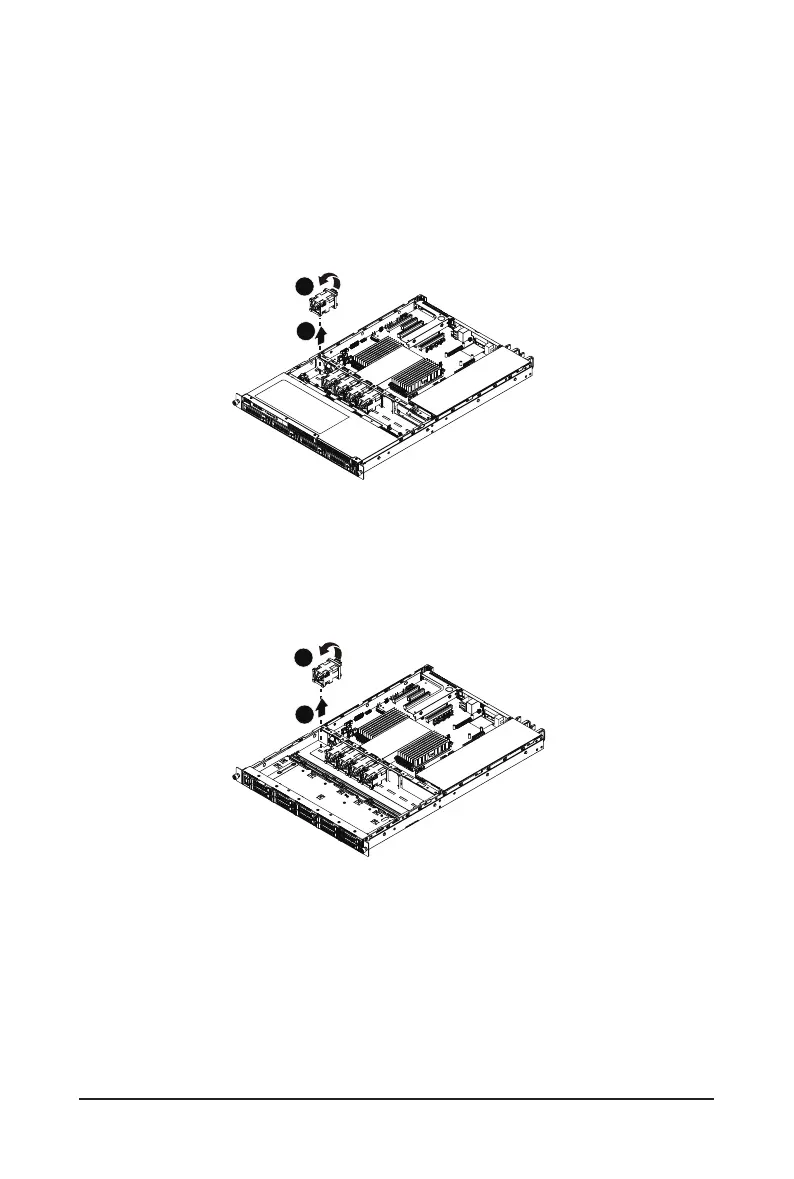

Follow these instructions to replace the fan assembly:
1.
Lift up the fan assembly from the chassis.
2.
Reverse the previous steps to install the replacement fan assembly
.
R
1
52-Z30
R
1
52-Z3
1/R
1
52-Z32/R
1
52-Z3
3
1
2
1
2
37
39
Table of Contents
default chapter
7
Table of Contents
7
Chapter 1 Hardware Installation
11
Installation Precautions
11
Product Specifications
12
System Block Diagram
16
Chapter 2 System Appearance
19
Front View
19
Rear View
19
Front Panel LED and Buttons
20
Rear System LAN Leds
22
Hard Disk Drive Leds
23
Chapter 3 System Hardware Installation
25
Removing Chassis Cover
26
Removing and Installing the Fan Duct
27
Installing the CPU and Heat Sink
28
Installing the Memory
30
Eight Channel Memory Configuration
30
Installing a Memory
31
DIMM Population Table
31
Installing the PCI Expansion Card
33
Installing the Hard Disk Drive
35
Installing the Mezzanine Card (Optional)
37
Replacing the FAN Assemblly
38
Replacing the Power Supply
39
Installing the Mezzanine Card (Optional)
40
Cable Routing
41
R152-Z30 Cable Routing
41
R152-Z31 Cable Routing
43
R152-Z32/R152-Z33 Cable Routing
45
Chapter 4 Motherboard Components
49
Motherboard Components
49
Jumper Settings
51
Chapter 5 BIOS Setup
53
The Main Menu
55
Advanced Menu
57
Trusted Computing
59
PSP Firmware Versions
60
Legacy Video Select
61
AST2500 Super IO Configuration
62
S5 RTC Wake Settings
65
Serial Port Console Redirection
66
CPU Configuration
70
AMI Graphic Output Protocol Policy
71
PCI Subsystem Settings
72
USB Configuration
74
Nvme Configuration
76
SATA Configuration
77
UEFI POST LOGO Configuration
78
Tls Auth Configuration
79
Network Stack Configuration
80
AMD Mem Configuration Status
81
Iscsi Configuration
82
Intel(R) I350 Gigabit Network Connection
83
VLAN Configuration
85
MAC Ipv4 Network Configuration
87
MAC Ipv6 Network Configuration
88
AMD CBS Menu
90
CPU Common Options
91
DF Common Options
96
UMC Common Options
101
NBIO Common Options
114
FCH Common Options
120
NTB Common Options
123
SOC Miscellaneous Control
124
AMD PBS Menu
125
Ras
126
Chipset Setup Menu
128
North Bridge
129
Server Management Menu
130
System Event Log
132
View FRU Information
133
BMC Network Configuration
134
Ipv6 BMC Network Configuration
135
Security Menu
136
Secure Boot
137
Boot Menu
139
UEFI NETWORK Drive BBS Priorities
141
UEFI Application Boot Priorities
142
Save & Exit Menu
143
ABL POST Codes
144
Startprocessortestpoints
144
Memory Test Points
144
PMU Test Points
144
Original Post Code
145
CPU Test Points
146
Topology Test Points
146
Extended Memory Test Point
146
Gnb Earlier Init
147
PMU Test Points
150
ABL0 Test Points
150
ABL5 Test Points
150
Agesa POST Codes
154
Universal Post Code
154
0Xa1Xx] for CZ Only Memory Postcodes
154
S3 Interface Post Code
157
PMU Post Code
157
0Xa5Xx] Assigned for AGESA PSP Module
157
0Xa9Xx, 0Xaaxx] Assigned for AGESA NBIO Module
160
0Xacxx] Assigned for AGESA CCX Module
162
0Xadxx] Assigned for AGESA DF Module
163
0Xafxx] Assigned for AGESA FCH Module
163
BIOS POST Beep Code (AMI Standard)
165
PEI Beep Codes
165
DXE Beep Codes
165
