3-7 Installing the Mezzanine Card (Optional)

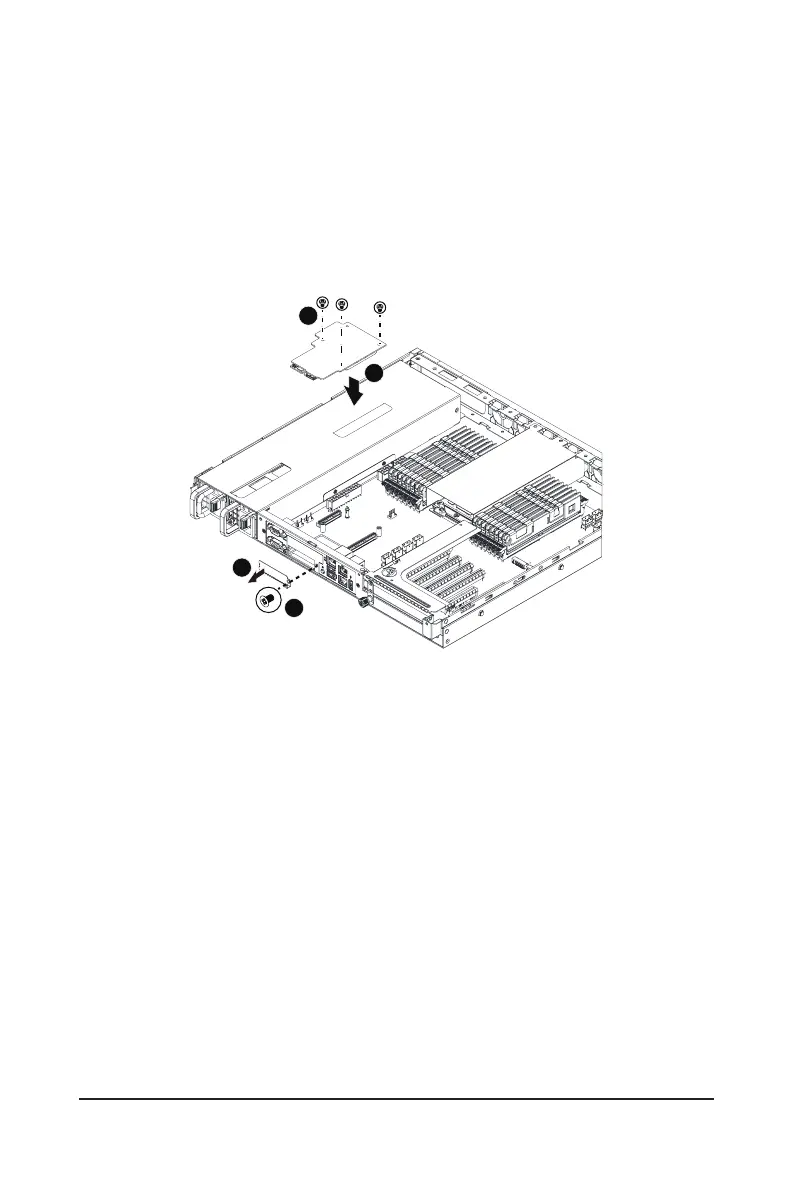

Follow these instructions to install a mezzanine card:
1. Remove the screw securing the mezzanine card slot cover.
2. Remove the slot cover from the system.
3. Insert the OCP 2.0 mezzanine card into the compartment ensuring that the card is rmly connected
to the connector on the motherboad.
4. Secure the OCP 2.0 mezzanine card into the system with three screws.
5. Reverse steps 3-4 to replace the OCP 2.0 mezzanine card.
