- 19 - System Appearance

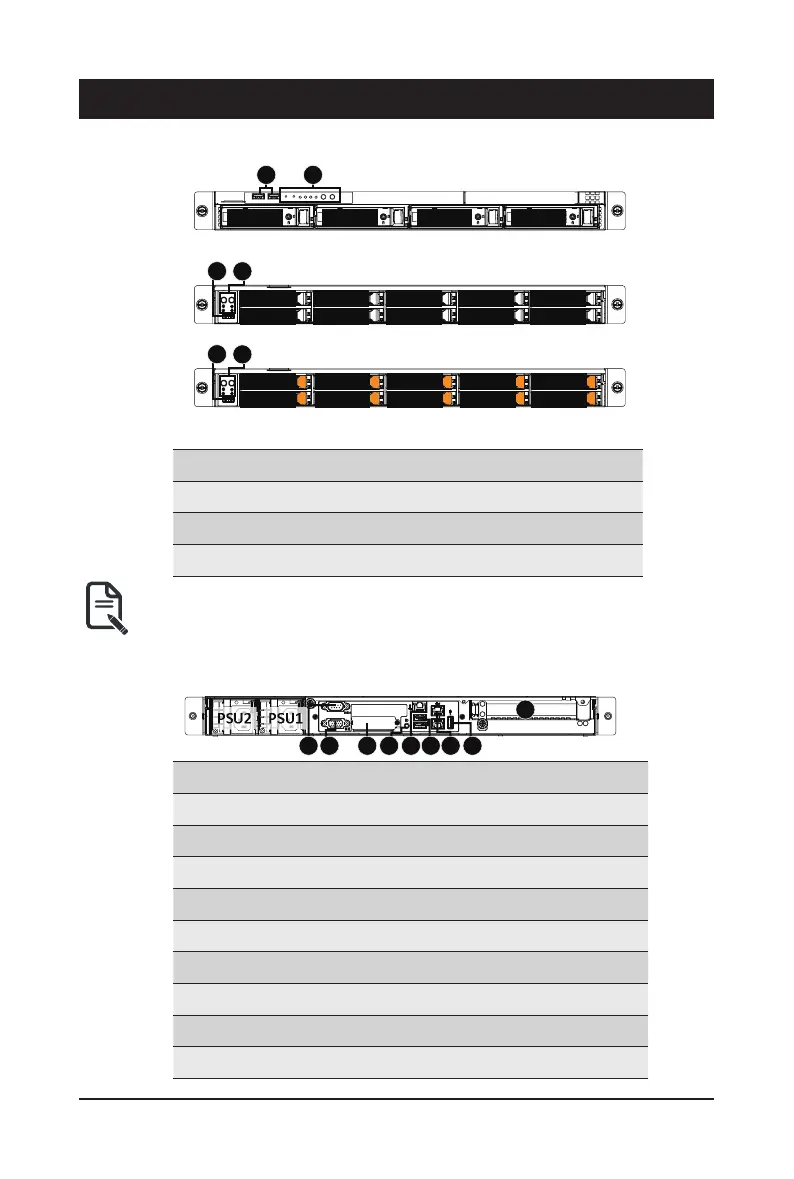

Chapter 2 System Appearance
2-1 Front View
No. Description
1.
Front USB 3.0 Port
2. Front Panel LEDs and Buttons
Orange HDD Latches Support NVMe
• Please Go to Chapter 2-3 Front Panel LED and Buttons for detail description of function
LEDs.
2-2 Rear View
No. Description
1. Serial Port
2. VGA Port
3. Mezzanine Card Slot (Option/OCP V2.0 Card)
4. ID Button
5. 10/100/1000 Server management LAN port
6. USB 3.0 Port x 2
7. GbE LAN Port x 2
8. USB 3.0 Port
9. PCIe Card Slot (PCIe x16)
R152-Z30
R152-Z31
R152-Z32
R152-Z33
1 2
HDD#0 HDD#1 HDD#2 HDD#3
1
2
HDD#0
HDD#1
HDD#2
HDD#3
HDD#4
HDD#5
HDD#6
HDD#7
HDD#8
HDD#9
1
2
HDD#0
HDD#1
HDD#2
HDD#3
HDD#4
HDD#5
HDD#6
HDD#7
HDD#8
HDD#9
21 3
5
4
6 7 8
9
PSU1PSU2
