- 12 -

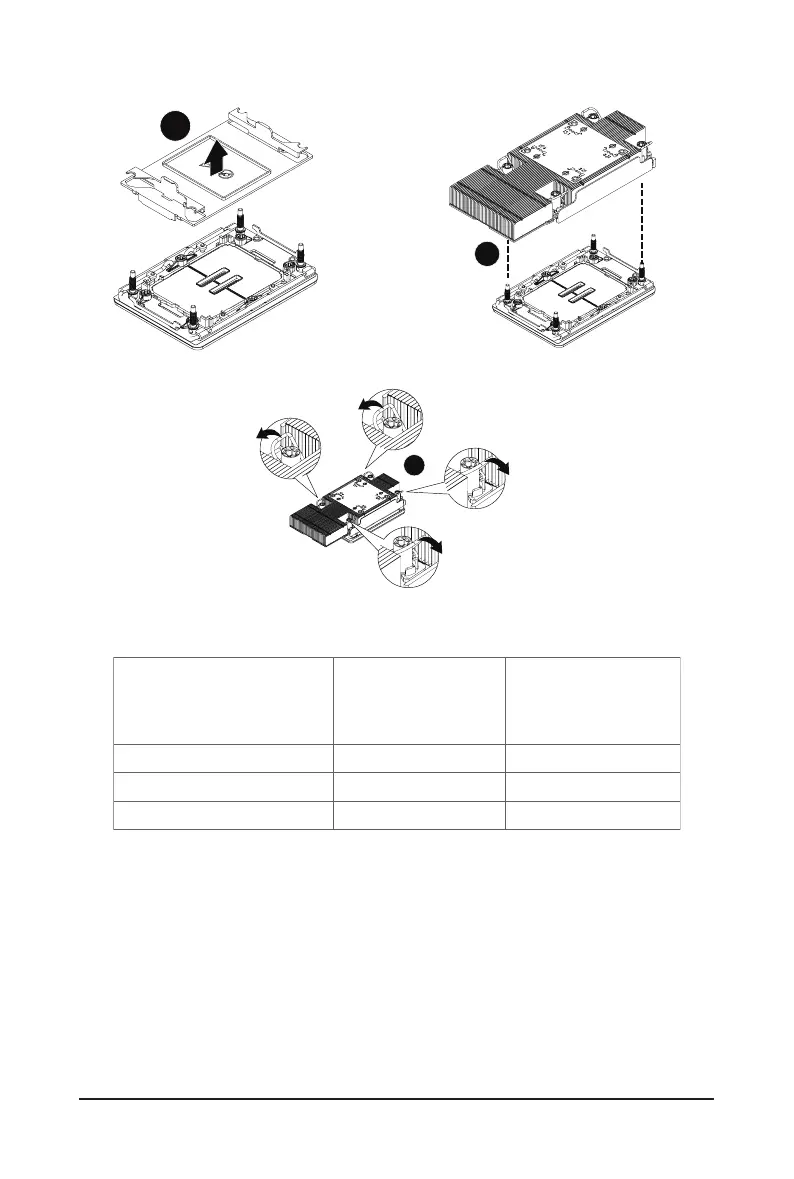

Hardware Installation
3
4
5
NOTE!
• The carrier code is marked on each carrier and matches a code laser marked on to
the IHS(Integrated
Heat Spreader) to ensure the right parts are used together
• When installing the heat sink to CPU, use T30-Lobe driver to tighten 4 captive nuts in
sequence as 1-4.
• The screw tightening torque: 8 ± 0.5 kgf-cm.
Carrier Code
Shim?
Integrated TIM Break Lever
Package Type Granite Rapids-SP XCC
Clearwater Forest-SP
Granite Rapids-SP LCC
Granite Rapids-SP HCC
Sierra Forest-SP
E2A
No
Yes
Yes
Yes
E2B
Carrier Types used for Package Types
