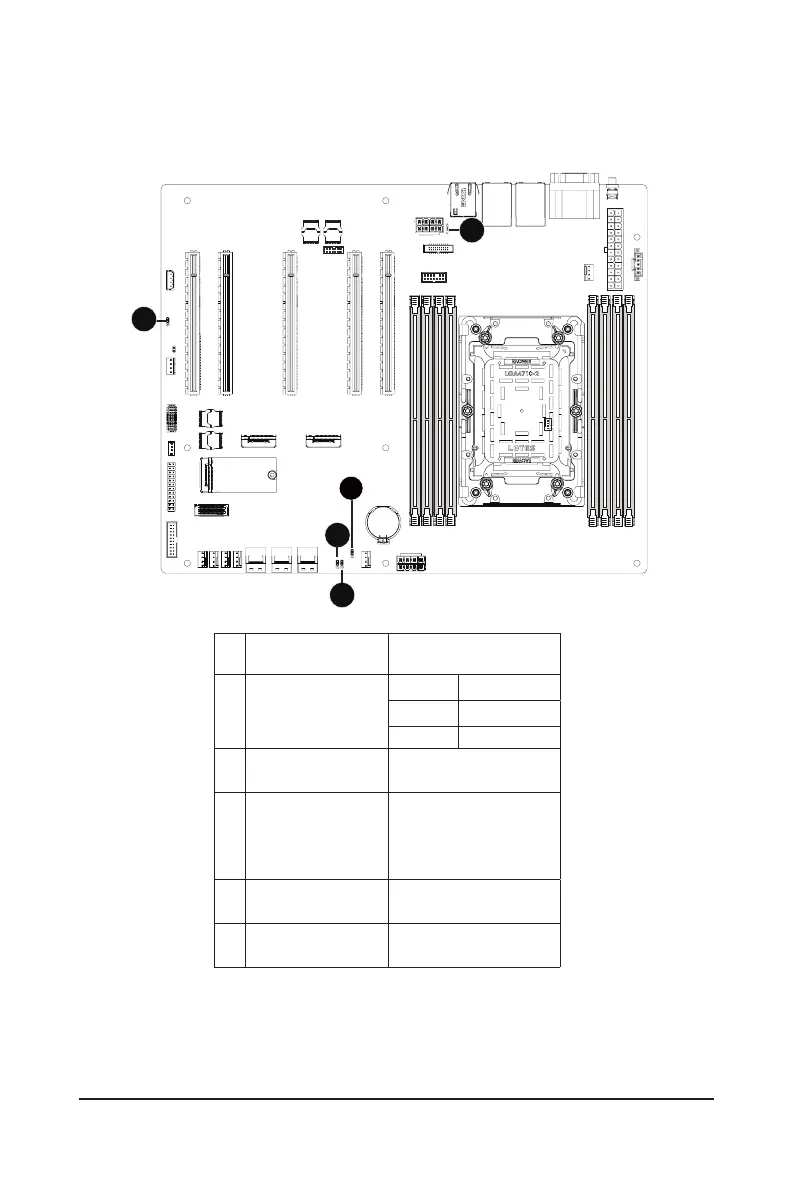

1-8 Jumper Settings
No. Jumper Name Jumper Setting
1 NCSI_SW
SW BIFURCATION
OFF On Board LAN
ON CN NCSI
2
BIOS Recovery
(BIOS_RCVR)
1-2: Default
2-3: Enable
3
Clear CMOS
(CLR_CMOS)
1-2: Nomal operation
(Default)
2-3: Clear CMOS data
(Enable)
4
S3 Power On Select
(S3_MASK)
1-2: Default
2-3: Enable
5
ME Force Update
(FORCE_ON)
1-2: Default
2-3: Enable
2
3
1
4
5
