Gigabyte MS04-CE0 - Block Diagram

- 6 -

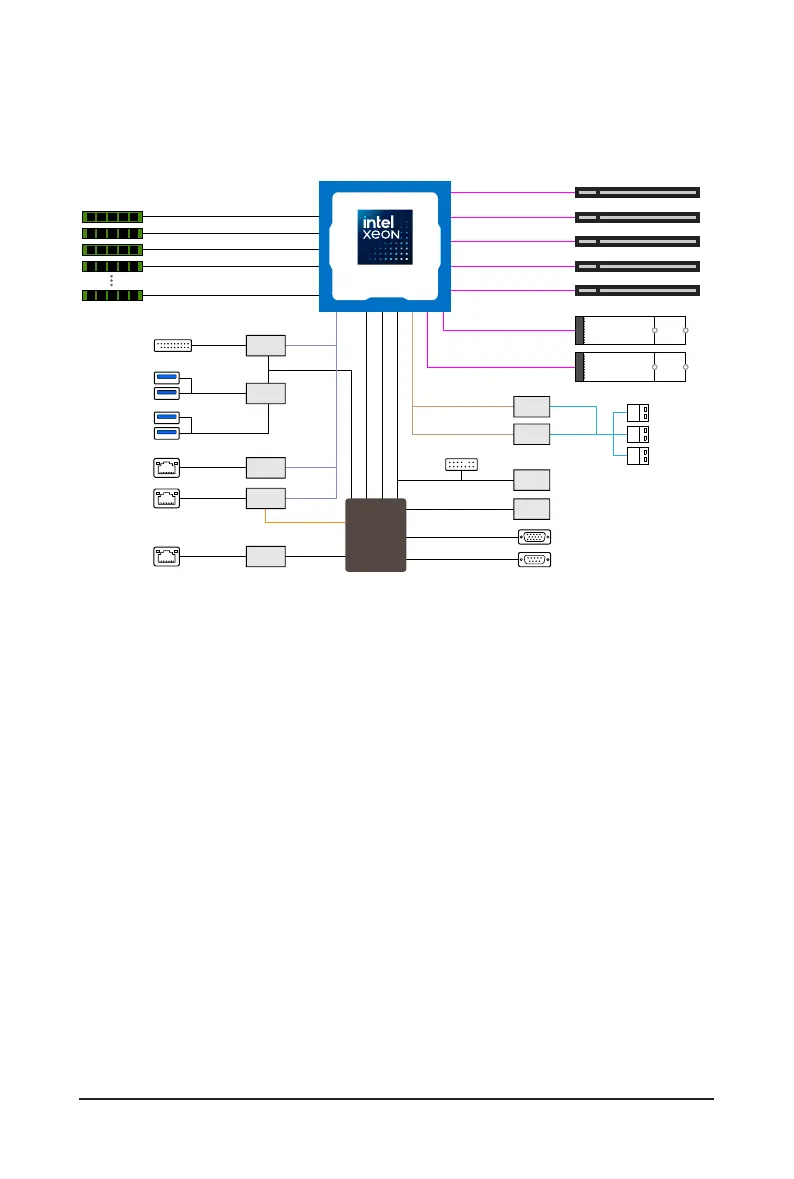

Block Diagram
SATAIII x6
SATAIII x6
FUSB 3.2 Gen1
4 x USB 3.2 Gen1
VGA
MLAN
RTL8211FD
USB2.0 x1
eSPI PCIe x1
I3C_MNG
USB 3.2 x2
USB 3.2
x2
USB 3.2 x2
USB 3.2 x2
PCIe3.0 x2
PCIe3.0 x2
PCIe5.0 x2
M.2
PCIe5.0 x2
M.2
TPM
SPI Flash
64MB
SATA host
controller
SATA host
controller
SPI Flash
64MB
SPI
COM
2 x 1G LAN
PCIe2.0 x1
PCIe2.0 x1
PCIe2.0 x1
Intel
I210-AT
Intel
I210-AT
8-Channel DDR5, 8 x DIMMs
RDIMM: Up to 6400 MT/s
MCR DIMM: Up to 8000 MT/s
PCIe5.0 x16
PCIe5.0 x16
PCIe5.0 x16
PCIe5.0 x16
PCIe5.0 x8
Slot6: PCIe x16 (Gen5 x16)
Slot7: PCIe x16 (Gen5 x16)
Slot4: PCIe x16 (Gen5 x16)
Slot2: PCIe x16 (Gen5 x16)
Slot1: PCIe x16 (Gen5 x8)
RGMII
3 x SlimSAS
Intel Xeon 6 processors
(LGA4710 Socket)
NCSI
USB host
controller
USB HUB
BMC
ASPEED
AST2600
